Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Electrical Wires AWG 4-32 Enameled Aluminum Wire Round Electrical Magnet Wire HuiLong With ISO9001 UL Certification

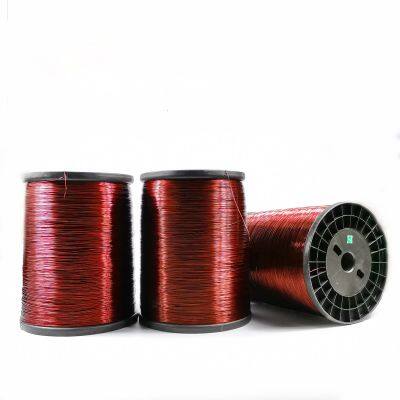

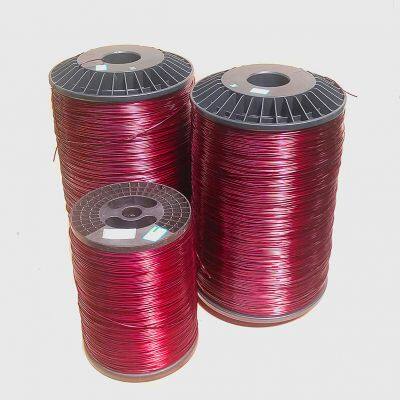

Electrical Wires AWG 4-32 Enameled Aluminum Wire Round Electrical Magnet Wire HuiLong With ISO9001 UL Certification
US$ 3.92
500 - 4999 Kilograms
US$ 3.49
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electrical Wires Factory Direct Supply 130 180 200 220 Degree Round Enameled Aluminum Wire SWG AWG IEC-60317US$ 3.48 - 3.95MOQ: 500 Kilograms -
QYL Class E 240 Electrical Wires 0.85-1.20mm Insulated Polyamideimide Solid Aluminum Conductor Enameled Coating 220V RatedUS$ 15.50 - 16.50MOQ: 50 Kilograms
-
Electrical Wires 6.0 mm IEC-60317 Enameled Aluminum Round Electrical Wires Manufacturing Price for TransformerUS$ 3.78 - 3.98MOQ: 500 Kilograms
-
Electrical Wires IEC-60317 Enameled Aluminum Wire SWG 6-32 Winding for Fan Motor and TransformerUS$ 3.51 - 3.91MOQ: 500 Kilograms
-
Electrical Wires Manufacturer in China AWG Aluminum Winding Wire Enameled Wire for Ceiling Fan Motor and TransformerUS$ 3.45 - 3.96MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EI/AIW 200
Brand Name
YONGDONG
Place of Origin
Shandong, China
Diameter:
2.588 MM
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Conductor
Aluminum
Standard
IEC NEMA GB JIS
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg)
Product Name:15 awg enameled aluminium wire
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class C |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |

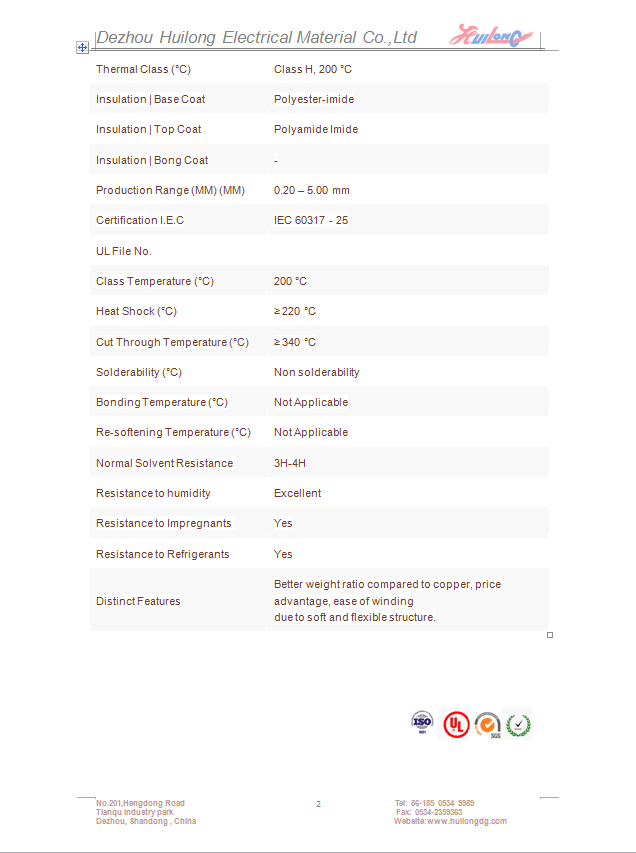

Techinical Data
