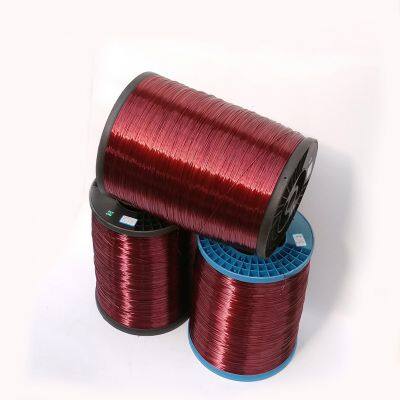

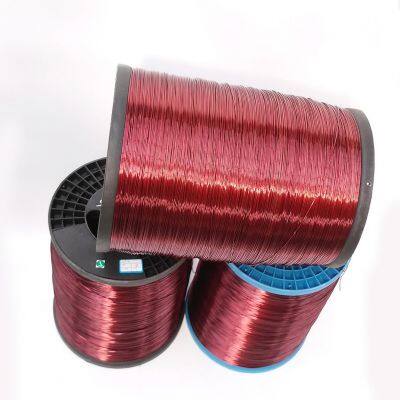

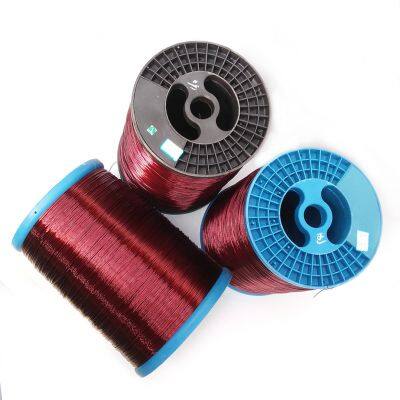

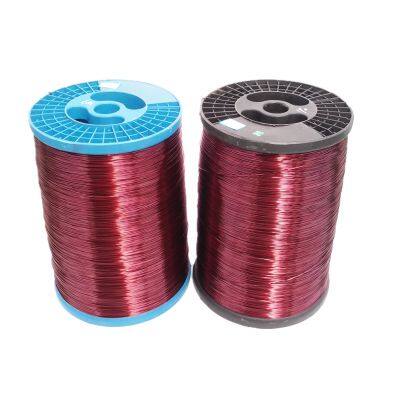

Electrical Wires Supplier in China Winding Polyamideimide Composite Polyester Aluminum Enameled Electrical Wires With
US$ 3.96
500 - 4999 Kilograms
US$ 3.50
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electrical Wires Supplier IEC-60317 Standard ISO9001 Enameled Aluminum Round Wire With Insulation Coating for TransformerUS$ 3.48 - 3.97MOQ: 500 Kilograms -
China Supplies Electrical Wires Polyamideimide Composite Polyester Aluminum Enameled Magnet Wire With ISO9001 CertificationUS$ 3.43 - 3.89MOQ: 500 Kilograms
-
Factory OEM 24AWG Enameled Wire RoHS Enameled Aluminum WireUS$ 3.01 - 3.89MOQ: 500 Kilograms
-
Electrical Wires Supplies From China Insulated Winding Wire Enameled Aluminum Wire AWG EI/AIW 200/220 for Magnetic CoilUS$ 3.50 - 3.98MOQ: 500 Kilograms
-
China Supplies Electrical Wires UL RoHS ISO9001 Certification Enamel Wire Magnet Wire HuiLong for Ceiling Fan Motor and TransformerUS$ 3.42 - 3.93MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ISO ROHS REACH UL
Bobbin:
PT25 PT30 PT60 PT200 PT270
Standard
IEC NEMA GB JIS
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire swg
Product Name: 200 class enameled aluminum wire for transformer cleaning machine
SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors

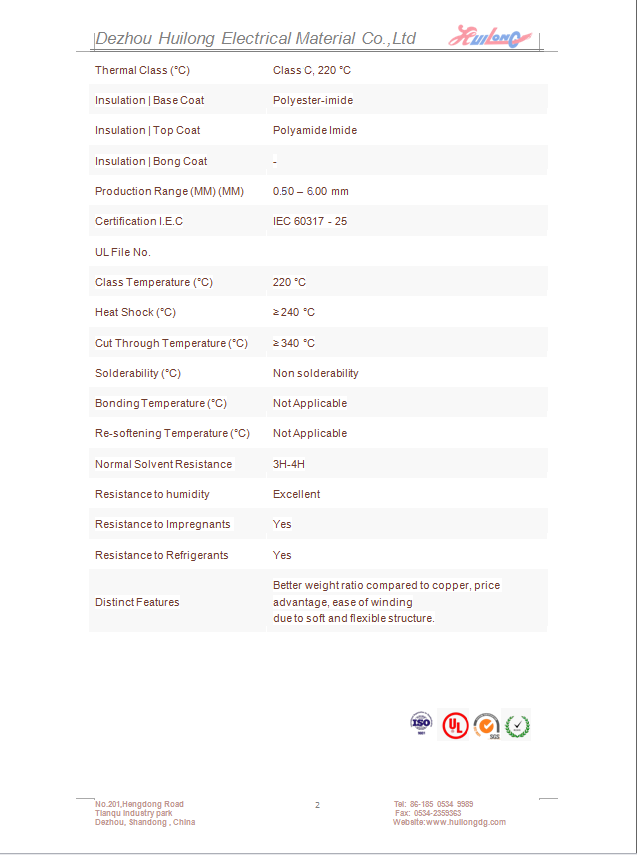

Product Paramenters
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
PT200 spool | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG |
