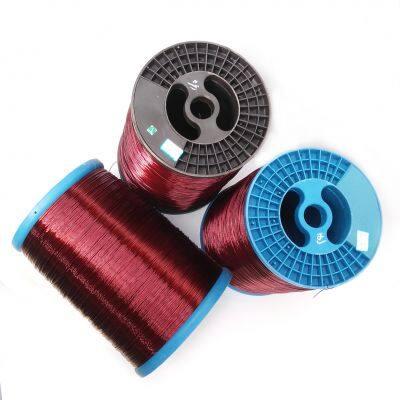

China Supplies 130/180/200/220 Class IEC-60317 Aluminum Enameled Wire With Insulated Coating Heat Resistance
US$ 3.96
500 - 4999 Kilograms
US$ 3.52
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Supplies Insulated Winding Enamel Wire Manufacturers Aluminium Wire for Ceiling Fan Motor and Transformer AWG4-32US$ 3.42 - 3.96MOQ: 500 Kilograms -
Electrical Wires Supplier in China Winding Polyamideimide Composite Polyester Aluminum Enameled Electrical Wires WithUS$ 3.50 - 3.96MOQ: 500 Kilograms
-
Electrical Wires Supplier IEC-60317 Standard ISO9001 Enameled Aluminum Round Wire With Insulation Coating for TransformerUS$ 3.48 - 3.97MOQ: 500 Kilograms
-
China Supplies Electrical Wires Polyamideimide Composite Polyester Aluminum Enameled Magnet Wire With ISO9001 CertificationUS$ 3.43 - 3.89MOQ: 500 Kilograms
-
Factory OEM 24AWG Enameled Wire RoHS Enameled Aluminum WireUS$ 3.01 - 3.89MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-220
Brand Name
YONGDONG
Place of Origin
Shandong, China
Diameter:
awg
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Product name
enameled aluminum wire
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire SWG
Product Name: AWG enameled aluminum wire /SWG Magnetic wire
The enameled wire is made of Elentas paint, and all of it is painted with a mold to ensure the continuity and stability of the product. The voltage is above 5000V. Suitable for oil transformers and high-temperature resistant power tool coils.
ULe234565, SGS certified global hot enameled wire
In order to show our sincerity, our company can provide free samples, but the freight is borne by the buyer. We will reduce all the expenses in the first trial. Be honest and serve first.
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
