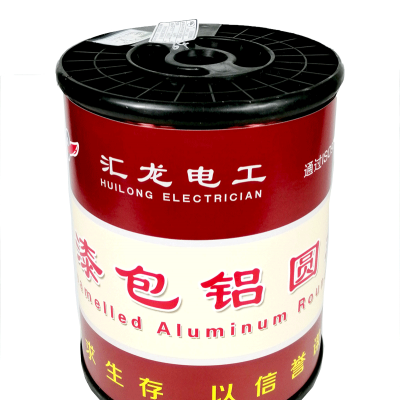

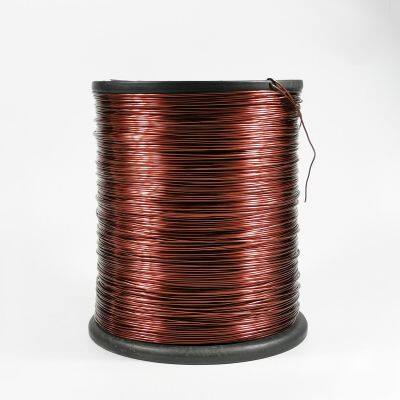

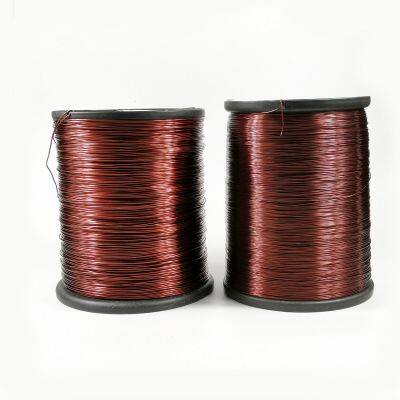

Electrical Supplies Aluminum Wire REACH RoHS Certificated Enameled for Motors and Transformers Electrical Wires Winding Transformer
US$ 3.85
500 - 4999 Kilograms
US$ 3.55
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Temperature Aluminum Wire With Insulation Coating IEC-60317 Enameled Aluminum Round Wire for Fan Motor Winding TransformerUS$ 3.60 - 3.89MOQ: 500 Kilograms -
Electrical Supplies IEC-60317 Magnet Wire SWG 6-32 Enameled Aluminum Wire for Fan Motor Winding Wire NEMA MW1000US$ 3.50 - 3.80MOQ: 500 Kilograms
-
Aluminium Wire for Transformers Enameled Insulation Material and Aluminum Conductor Material IEC60317 Standard TransformerUS$ 3.54 - 3.84MOQ: 500 Kilograms
-
Insulated Aluminum Wire Enameled Aluminum Electrical Wires AWG 6-28 IEC-60317 ISO 9001 UL RoHS Certification TransformerUS$ 3.61 - 3.91MOQ: 500 Kilograms
-
Aluminum Wire AWG6-28 Heat Resistance Insulated Coating Wire Electric Motor Winding Enameled Aluminum Round Wire TransformerUS$ 3.59 - 3.85MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EIW 180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
awg
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
H class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.50mm-6.00mm
Certification:
ROHS REACH ISO9001
Bobbin:
PT25 PT30 PT60 PT200 PT270
Product name
Enameled Aluminum Wire
Color
Brown
Product Description
Round Wire Diameter: 0.5mm-6.00mm (3awg-24awg) Magnetic wire swg
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class C |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.50-6.00 | 0.50-6.00 | 0.50-6.00 | 0.50-6.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
PT200 spool | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG |
