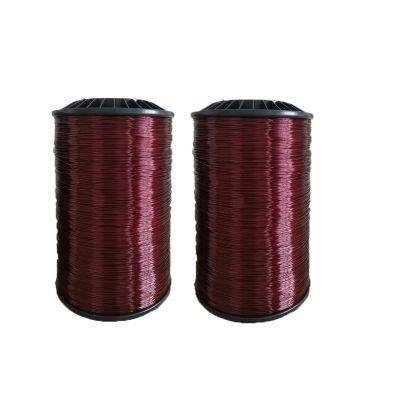

Wire Aluminum AWG4-32 IEC-60317 Top Grade High Temperature Resistances Insulated Winding Wire Aluminum With Coating for Motor an Transformer
US$ 3.87
500 - 4999 Kilograms
US$ 3.57
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
EI/AIW
Conductor Material:
99.99% Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wire Aluminum Ceiling Fan Motor Winding Wire Aluminum Enameled Electrical Wires SWG 7 8 9 for Transformer IEC60317 Standard IndiaUS$ 3.53 - 4.30MOQ: 500 Kilograms -
Wire Aluminum 180/200/220 Class Aluminum Conductor Round Wire With Insulation Coating Magnet for Transformer and Motor Winding NEMA MW1000US$ 3.53 - 3.75MOQ: 500 Kilograms
-
Wire Aluminum AWG/SWG IEC-60317 High Temperature Resistance Electrical Wires Enameled Aluminum Wire With Coating for Motor IndiaUS$ 3.56 - 3.95MOQ: 500 Kilograms
-
Wire Aluminium Enamel Winding for Motor and Transformer AWG4-32 With ISO9001 Certification IndiaUS$ 3.51 - 3.83MOQ: 500 Kilograms
-
Wire Aluminum Good Quality Motor Winding Wire Enameled Aluminum Round Winding Wire IndiaUS$ 3.56 - 3.91MOQ: 500 Kilograms
Type
Insulated
Conductor Type
Solid
Model Number
EI/AIW-200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Product name:
EI/AIW Enameled Aluminum Wire
Insulation Material:
polyesterimide polyamideimide
Heat-resisting class:
200
Production Range:
0.2-6.0mm
Style:
Enameled Aluminum Wire
Shape:
Round
Diameter:
AWG/SWG gauge
Standard
IEC NEMA GB JIS
Bobbin:
PT25 PT30 PT60 PT200 PT270
Certification:
Reach RoHS ISO9001 UL
Product Description
Product Details
1. Grade: Aluminum Conductor Material enamel magnet wire
2. Production Size: 4 AWG-32 AWG
3. Standard: IEC60317-25
4. Certification: ISO9001, ROHS,REACH,ULe234565
Product Name | QZL-180 | Q(ZY/XY)L-200 | Q(ZY/XY)(L-220 |
Coating Material | EIW | EI/AIW | EI/AIW |
Cross Section Range(mm) | 0.2-5.0 | 0.2-5.0 | 0.2-5.0 |
Insulation Thickness(IEC) | Grade 1/Grade 2/Grade 3 | Grade 1/Grade 2/Grade 3 | Grade 1/Grade 2/Grade 3 |
Main Features
1. Spools Type:PT25 / PT30 / PT60 / PT200 ;
2. Size of Package:
PT25:240*240*290 PT60:305*305*410
PT30:280*280*300 PT200:410*410*660
3. Port: FOB TIAN JIN/QING DAO PORT
4. G.W.of one spool with wire:
PT25:11KGS PT60:28KGS PT200:75KGS
5. What is the use of enameled aluminum wire?
A: Transformer coils, motor coils, power tools, etc.
