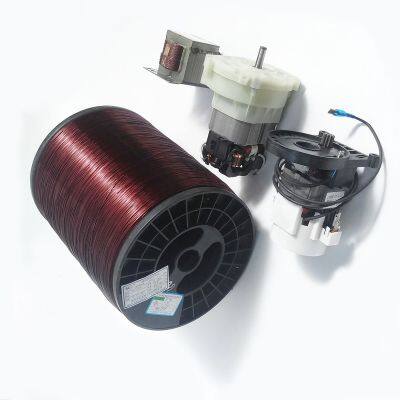

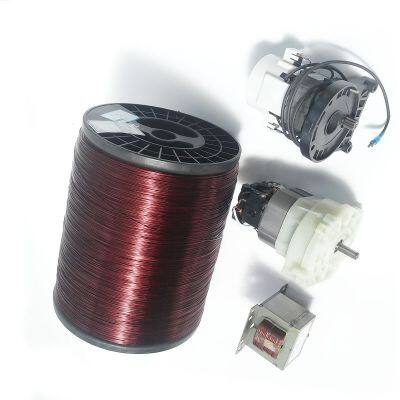

Insulated Aluminum Wire Enameled Aluminum Electrical Wires AWG 6-28 IEC-60317 ISO 9001 UL RoHS Certification Transformer
US$ 3.91
500 - 4999 Kilograms
US$ 3.61
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide,polyamide-imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Wire AWG6-28 Heat Resistance Insulated Coating Wire Electric Motor Winding Enameled Aluminum Round Wire TransformerUS$ 3.59 - 3.85MOQ: 500 Kilograms -
Magnet Wire AWG/SWG RoHS Certification Enameled Round Aluminum Winding Wire With for Transformers and Motors NEMA MW1000US$ 3.63 - 3.93MOQ: 500 Kilograms
-
Wire Aluminum AWG Insulated Winding Wire Manufacturers Aluminium Enameled Wire for Ceiling Fan Motor and Transformer TransformerUS$ 3.51 - 3.78MOQ: 500 Kilograms
-
Wire Aluminum Price Insulated Winding Wires Enameled Round Aluminum Magnet Wire for Motor Winding With UL Certification NEMA MW1000US$ 3.52 - 3.88MOQ: 500 Kilograms
-
Wire Aluminum IEC-60317 Insulated Winding Wire Aluminum Round Electrical Wires Manufacturing Price for Motor and Transformer TransformerUS$ 3.55 - 3.85MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EI/AIW-200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ROHS REACH ISO9001
Bobbin:
PT25 PT30 PT60 PT200 PT270
Standard
IEC NEMA GB JIS
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.6mm-5.00mm (4awg-32awg) Magnetic wire swg
Product Name: 2020 PT200 spool EI/AIW 200 class enameled aluminum wire for transformer
SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
Product Details
Advantage
Techinical Data
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.60-5.00 | 0.60-5.00 | 0.60-5.00 | 0.60-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |

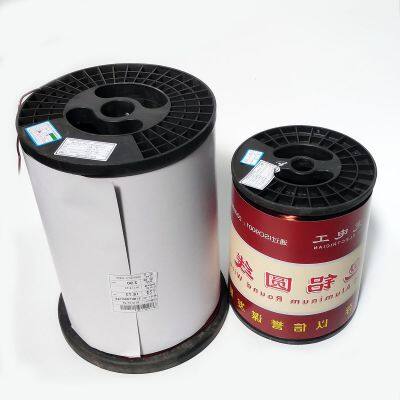

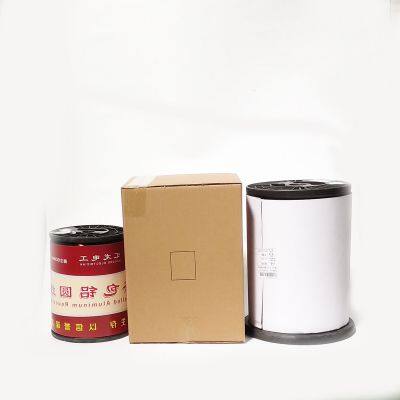

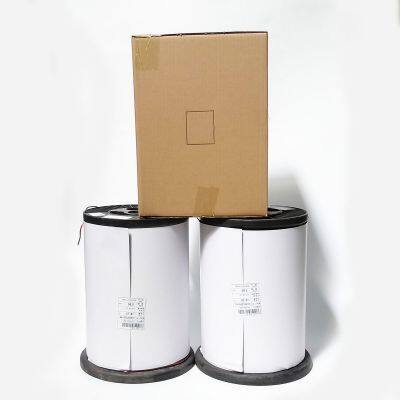

Packing & Delivery
