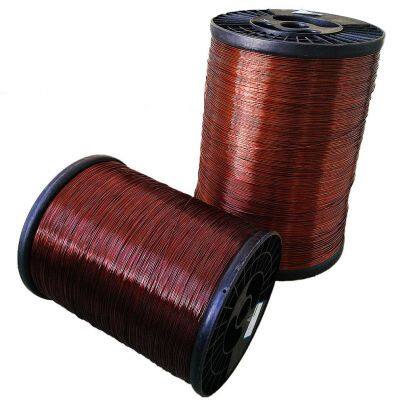

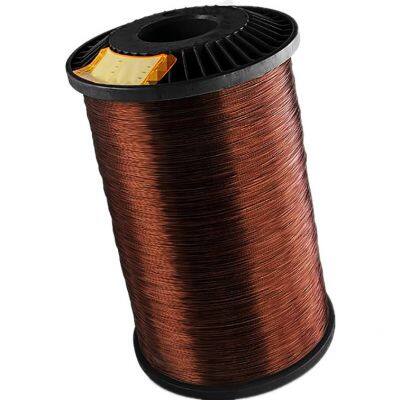

Electrical Supplies Aluminum Wire ISO9001 Enameled Aluminum Round Wire Manufacturer Prices High Temperature Wire Transformer
US$ 3.88
500 - 4999 Kilograms
US$ 3.63
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Wire Insulated Winding Aluminium Enameled Round Wire Motor Capacitor Starter Enamel Wire AWG4-32 TransformerUS$ 3.53 - 3.84MOQ: 500 Kilograms -
Electrical Supplies Factory Direct Supply Enamel Aluminium Magnet Wire AWG4-32 ISO REACH ROHS Certification NEMA MW1000US$ 3.53 - 3.83MOQ: 500 Kilograms
-
Aluminum Wire REACH RoHS Certificated Enameled Aluminum Magnetic Wire for Motors and Transformers Electrical Wires Winding TransformerUS$ 3.60 - 3.93MOQ: 500 Kilograms
-
Electrical Supplies AWG4-32 Aluminum Wire IEC-60317 Enameled Aluminum Wire Magnet Wire ISO REACH ROHS Certification NEMA MW1000US$ 3.51 - 3.91MOQ: 500 Kilograms
-
Aluminum Wire Manufacturer Enameled Aluminum Magnet Wire SWG 6-32 Price Wires Motor Winding IEC60317 NEMA MW1000US$ 3.59 - 3.91MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EIW 180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
SWG6-34
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.50mm-6.00mm
Certification:
ULE234565 ROHS REACH ISO9001
Bobbin:
PT25 PT30 PT60 PT200 PT270
Color
Brown
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.5mm-6(3awg-24awg)
Product Name:Enameled aluminum round wire for transformer polyester imide-polyamide imide
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class C |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.50-6.00 | 0.50-6.00 | 0.50-6.000.50-6.00 | 0.20-6.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
