AWG4-32 Aluminium Wire Insulated Round for Motor Capacitor Starter Enameled Magnet Wire IEC60317 Standard ISO REACH NEMA MW1000

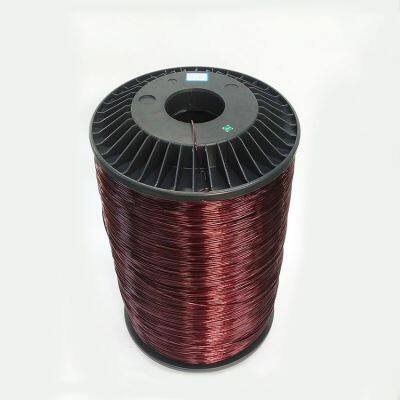

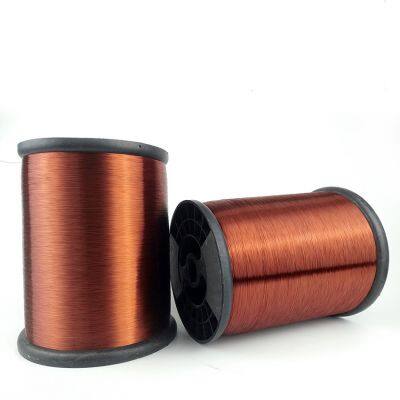

AWG4-32 Aluminium Wire Insulated Round for Motor Capacitor Starter Enameled Magnet Wire IEC60317 Standard ISO REACH NEMA MW1000 photo-1
AWG4-32 Aluminium Wire Insulated Round for Motor Capacitor Starter Enameled Magnet Wire IEC60317 Standard ISO REACH NEMA MW1000 photo-2
AWG4-32 Aluminium Wire Insulated Round for Motor Capacitor Starter Enameled Magnet Wire IEC60317 Standard ISO REACH NEMA MW1000 photo-3
AWG4-32 Aluminium Wire Insulated Round for Motor Capacitor Starter Enameled Magnet Wire IEC60317 Standard ISO REACH NEMA MW1000 photo-4
AWG4-32 Aluminium Wire Insulated Round for Motor Capacitor Starter Enameled Magnet Wire IEC60317 Standard ISO REACH NEMA MW1000 photo-5
AWG4-32 Aluminium Wire Insulated Round for Motor Capacitor Starter Enameled Magnet Wire IEC60317 Standard ISO REACH NEMA MW1000 photo-6
US$ 3.98 500 - 4999 Kilograms
US$ 3.78 ≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Type Insulated
Conductor Material Aluminum
Conductor Type Solid
Model Number Q(ZY/XY)-200
Brand Name YONGDONG
Place of Origin Shandong, China(Mainland)
Diameter: AWG/SWG
Style: Enameled Aluminum Wire
Shape: Round
Heat-resisting class: C class
Insulation Material: polyester-imide, Polyamide imide
Production Range: 0.50mm-5.00mm
Certification: ULE234565 ROHS REACH
Bobbin: PT25 PT30 PT60 PT200 PT270
Standard IEC NEMA GB JIS
Conductor Aluminum
Product Description

Round Wire Diameter:  0.50mm-5.00mm   (4awg-24awg)

Product Name:12 awg enameled aluminium wire
Fair price class220 gauge 12 AWG round wire aluminium enameled magnet wire
Product Name
QZ(G)-155
QZ-180
Q(ZY/XY)-200
QY-220
Thermal Class
155, class F
180, class H
200, class C
220, class N
Coating Material
PEW(G)
EIW
EI/AIW
AIW
Cross Section Range (mm)
0.50-5.00
0.50-5.00
0.50-5.00
0.50-5.00
Insulation Thickness (IEC)
Grade 1
Grade 2
Grade 3
Grade 1
Grade 2
Grade 3
Grade 1
Grade 2
Grade 3
Grade 1
Grade 2
Grade 3
Standard
GB/T6109.2
GB/T23312.4
IEC60317-3

GB/T6109.5
GB/T23312.5
IEC60317-8
NW30
GB/T6109.20
GB/T23312.7
IEC60317-13
NW35


GB/T6109.22
IEC60317-46
NW16
