Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Aluminium Conductor Insulated Winding Wire for Motor Capacitor Starter and Transformer AWG 4-32 Belgium

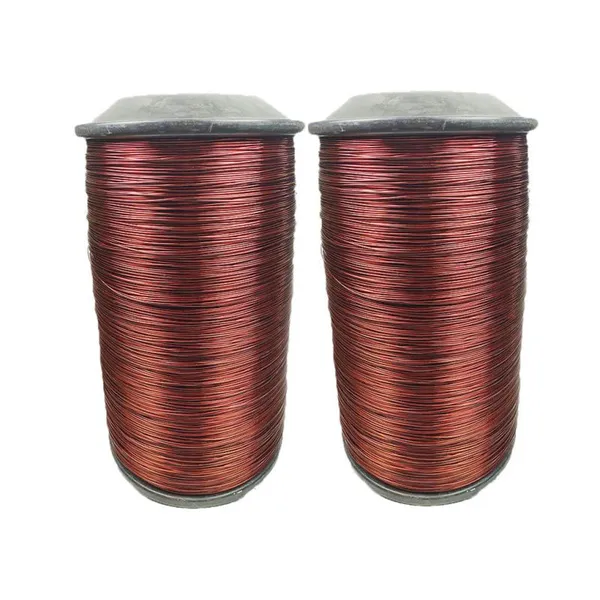

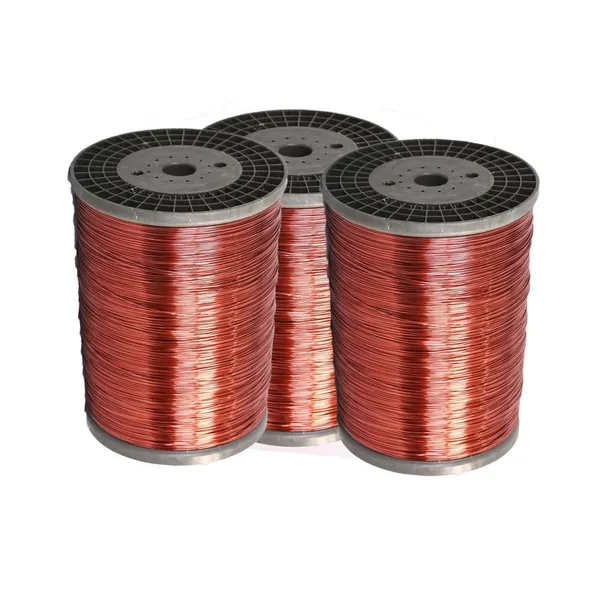

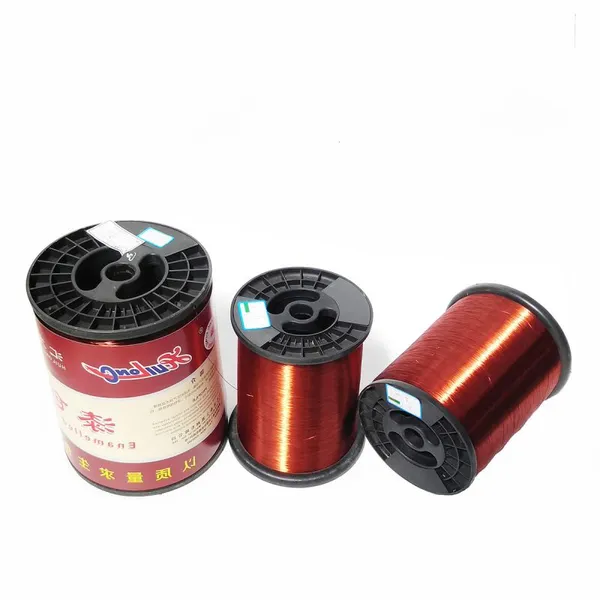

Aluminium Conductor Insulated Winding Wire for Motor Capacitor Starter and Transformer AWG 4-32 Belgium
US$ 4.48
500 - 4999 Kilograms
US$ 4.01
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Conductor With Insulation Coating Material Aluminium Coil Winding Wire for Transformers BelgiumUS$ 3.95 - 4.25MOQ: 500 Kilograms -
Insulated Aluminum Coil Winding Wire AWG4-32 Enameled Magnet Manufacturing Price BelgiumUS$ 3.88 - 4.38MOQ: 500 Kilograms
-
AWG/SWG Enameled Aluminum Coil Winding Wire for Ceiling Fan Electrical Wire Prices IEC60317 Standard BelgiumUS$ 4.05 - 4.46MOQ: 500 Kilograms
-
UL Certificated Aluminum Aluminum Coil Winding Wire for Motors and Transformers Winding PhilippinesUS$ 4.01 - 4.52MOQ: 500 Kilograms
-
RoSH Certification Enameled Aluminum Round Wire for Fan Motor and Transformer Aluminum Coil Winding Wire PhilippinesUS$ 3.96 - 4.36MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.50mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Standard
IEC NEMA GB JIS
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.50mm-5.00mm (4awg-24awg)
Product Name:12 awg enameled aluminium wire
Fair price class220 gauge 12 AWG round wire aluminium enameled magnet wire
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | QY-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | AIW |
Cross Section Range (mm) | 0.50-5.00 | 0.50-5.00 | 0.50-5.00 | 0.50-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
