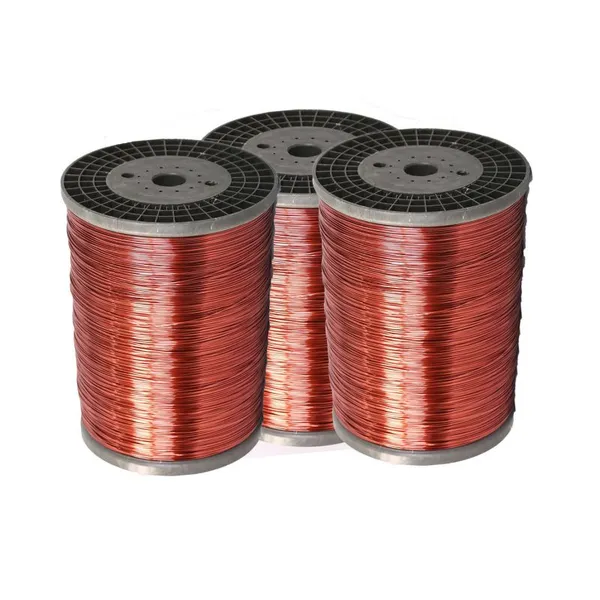

Aluminum Conductor With Insulation Coating Material Aluminium Coil Winding Wire for Transformers Belgium
US$ 4.25
500 - 4999 Kilograms
US$ 3.95
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Insulated Aluminum Coil Winding Wire AWG4-32 Enameled Magnet Manufacturing Price BelgiumUS$ 3.88 - 4.38MOQ: 500 Kilograms -
AWG/SWG Enameled Aluminum Coil Winding Wire for Ceiling Fan Electrical Wire Prices IEC60317 Standard BelgiumUS$ 4.05 - 4.46MOQ: 500 Kilograms
-
UL Certificated Aluminum Aluminum Coil Winding Wire for Motors and Transformers Winding PhilippinesUS$ 4.01 - 4.52MOQ: 500 Kilograms
-
RoSH Certification Enameled Aluminum Round Wire for Fan Motor and Transformer Aluminum Coil Winding Wire PhilippinesUS$ 3.96 - 4.36MOQ: 500 Kilograms
-
UL Certificated Aluminum Enameled Wire Magnetic Wire for Motors and Transformers Aluminum Coil Winding Wire PhilippinesUS$ 3.95 - 4.45MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-220
Brand Name
YONGDONG
Place of Origin
Shandong, China
Diameter:
awg
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH

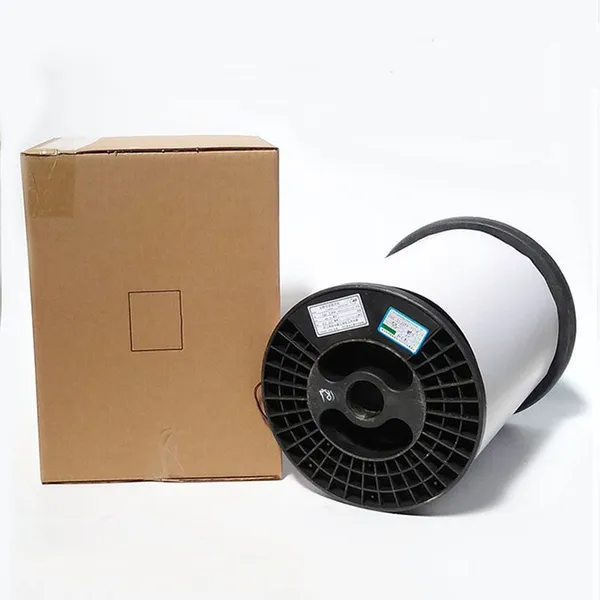

Bobbin:
PT25 PT30 PT60 PT200 PT270
Product name
enameled aluminum wire
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire SWG
Product Name: AWG enameled aluminum wire /SWG Magnetic wire
The enameled wire is made of Elentas paint, and all of it is painted with a mold to ensure the continuity and stability of the product. The voltage is above 5000V. Suitable for oil transformers and high-temperature resistant power tool coils.
ULe234565, SGS certified global hot enameled wire
In order to show our sincerity, our company can provide free samples, but the freight is borne by the buyer. We will reduce all the expenses in the first trial. Be honest and serve first.
Product Name |
QZ(G)-155 |
QZ-180 |
Q(ZY/XY)-200 |
Q(ZY/XY)-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class N |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.20-5.00 |
0.20-5.00 |
0.20-5.00 |
0.20-5.00 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Standard |
GB/T6109.2
GB/T23312.4
IEC60317-3
|
GB/T6109.5
GB/T23312.5
IEC60317-8
NW30
|
GB/T6109.20
GB/T23312.7
IEC60317-13
NW35
|
GB/T6109.22
IEC60317-46
NW16
|
