Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Manufacturer Price Aluminium Enameled Round Electrical Wires Class 220 Magnet Wire for Motor and Transformer Germany

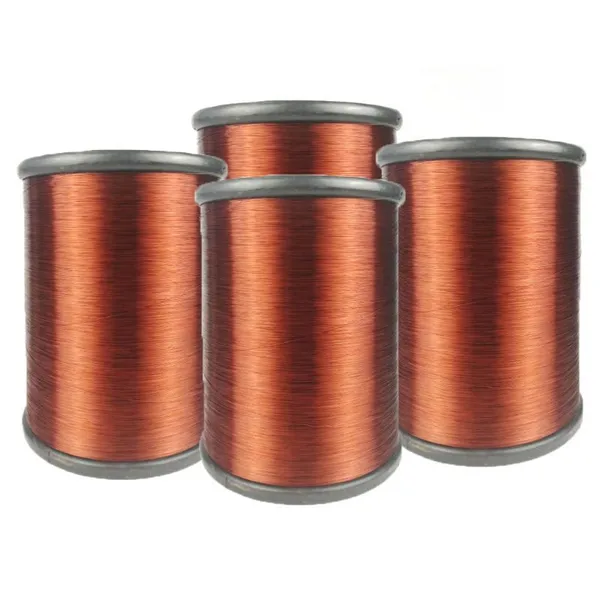

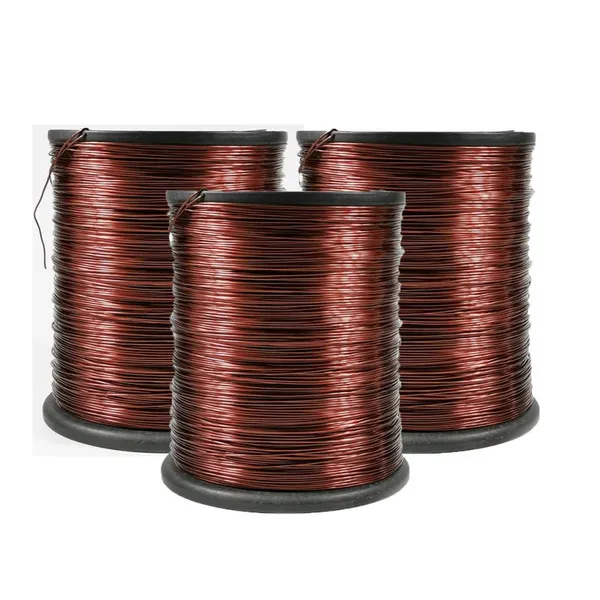

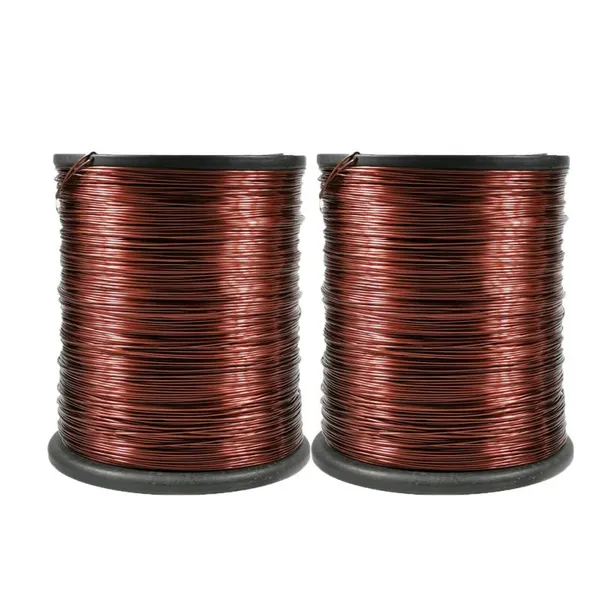

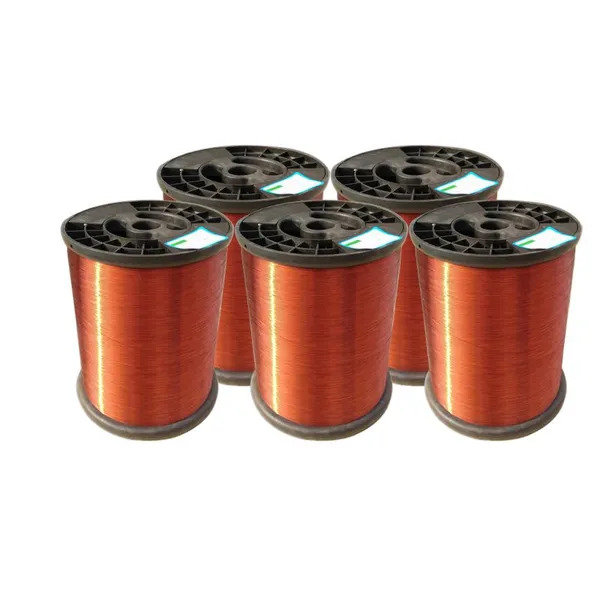

Manufacturer Price Aluminium Enameled Round Electrical Wires Class 220 Magnet Wire for Motor and Transformer Germany
US$ 4.45
500 - 4999 Kilograms
US$ 4.19
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Wholesale ISO9001 UL RoHS Certified AWG/SWG Enameled Aluminum Wire Ceiling Fan Insulated Winding Wire Prices GermanyUS$ 4.25 - 4.48MOQ: 500 Kilograms -
HuiLong Heat Resistance 200 Class AWG 4-32 Round Wire Aluminum Enameled Magnet Wire Insulated Coating Winding for Motor and Transformer HuiLongUS$ 4.18 - 4.48MOQ: 500 Kilograms
-
HuiLong Aluminium Round Wire for Transformers Enameled Insulation Material and Aluminum Conductor Material IEC60317 Standard HuiLongUS$ 4.32 - 4.58MOQ: 500 Kilograms
-
HuiLong Magnet Wire SWG 6-32 IEC-60317 Enameled Aluminum Round Wire With Insulation Coating for Fan Motor Winding Wire HuiLongUS$ 4.18 - 4.45MOQ: 500 Kilograms
-
HuiLong Magnet Wire Enameled Insulation Material and Aluminum Conductor Material Aluminium Round Wire for Transformers HuiLongUS$ 4.18 - 4.55MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-220
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.50mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Standard
IEC NEMA GB JIS
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.50mm-5.00mm (4awg-24awg)
Product Name:12 awg enameled aluminium wire
Fair price class220 gauge 12 AWG round wire aluminium enameled magnet wire
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | QY-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | AIW |
Cross Section Range (mm) | 0.50-5.00 | 0.50-5.00 | 0.50-5.00 | 0.50-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
