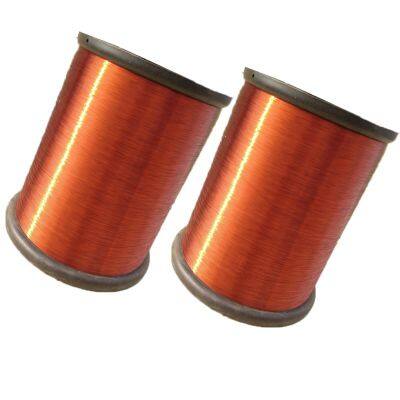

PEW Electrical Wires Motor Winding Enameled Aluminium Round Magnet Wire Manufacturer Speaker Coil
US$ 4.50
500 - 4999 Kilograms
US$ 3.99
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AWG4-28 Electrical Wires Enameled Aluminum Wire Insulated Coating Magnet Wire With ISO9001 Certification Speaker CoilUS$ 3.99 - 4.39MOQ: 500 Kilograms -
AWG/SWG Motor Winding Aluminum Enameled Round Wire Motor Capacitor Starter Enamel Wire With UL Certification Speaker CoilUS$ 4.01 - 4.45MOQ: 500 Kilograms
-
Factory Direct Sales Electrical Wires Class 220 Aluminium Enameled Round Magnet Wire for Voice Coil Speaker CoilUS$ 4.10 - 4.40MOQ: 500 Kilograms
-
ISO9001certification AWG6-28 EI/AIW 200 Enameled Aluminum Round Wire for Motor Winding and Transformer Speaker CoilUS$ 4.05 - 4.45MOQ: 500 Kilograms
-
AWG 6-28 Electrical Motors Winding Enameled Aluminium Round Wire Insulated Coatings Magnet Wires Speaker CoilUS$ 3.99 - 4.39MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EIW180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Standard
IEC NEMA GB JIS
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire swg
Product Name: 200 class enameled aluminum wire for transformer cleaning machine
SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
Product Details
Product Paramenters
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
PT200 spool | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG |
