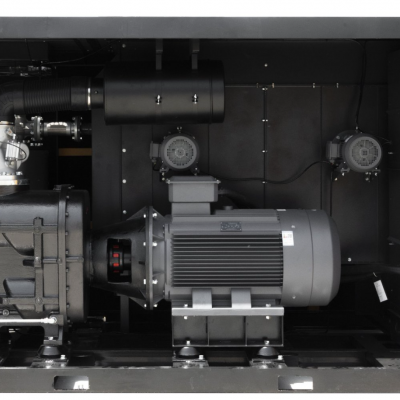

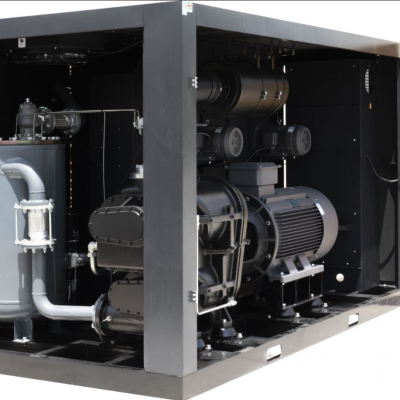

SLV Series Low Pressure Screw Air Compressor 0.3-0.5MPa for Textile Industry
Product Description: SLV Series Low Pressure Screw Air Compressor
SAIDS Energy-Saving Low Pressure Screw Air Compressor – Expertly Crafted for Textile, Cement, and Glass Industries
High pressure increases production costs due to pressure reduction requirements. To reduce carbon emissions and protect equipment quality, we have designed and manufactured an energy-saving series of low-pressure screw air compressors with working pressures of 0.5MPa, 0.4MPa, and 0.3MPa specifically for your industry. When your application requires pressure below 0.5MPa, you can install a low-pressure screw air compressor.
The SAIDS low-pressure screw air compressor is one of the first low-pressure grade products in China, with models and specifications meeting international standards. It is suitable for low-pressure applications with temperatures up to 70°C and humidity below 90%.
Features
Significant Energy Savings – High-performance low-pressure air compressor designed for compressed air requirements of 0.3-0.5MPa. This product provides power savings compared to 0.7MPa+ air compressors, reducing operating costs significantly.
Excellent Performance – High-performance low-pressure air compressor with specialized coolant cleaning after oil treatment.
Convenient and Efficient – All components are pre-installed within the unit, requiring no additional on-site installation, ready for immediate use.
| MODEL | Capacity (Mpa) | Capacity (m³/min) | Power (KW/HP) | Noise (dB(A)) | Outlet (INCH) | Dimension (WxDxH mm) | Weight (Kg) |
|---|---|---|---|---|---|---|---|
| SLV-50A | 0.3 | 11.5 | 37 | 70±2 | Dn100 | 2150x1500x1800 | 1600 |
| 0.4 | 8.5 | 37 | 70±2 | Dn100 | 2150x1500x1800 | 1600 | |
| 0.5 | 7.8 | 37 | 70±2 | Dn100 | 2150x1500x1800 | 1600 | |
| SLV-60A | 0.3 | 14.2 | 45 | 70±2 | DN100 | 2150x1500x1800 | 1800 |
| 0.4 | 11.5 | 45 | 70±2 | DN100 | 2150x1500x1800 | 1800 | |
| 0.5 | 10.5 | 45 | 70±2 | DN100 | 2150x1500x1800 | 1800 | |
| SLV-75A | 0.3 | 17.0 | 55 | 70±2 | DN125 | 2400x1600x2100 | 2300 |
| 0.4 | 14.5 | 55 | 70±2 | DN125 | 2400x1600x2100 | 2300 | |
| 0.5 | 13.5 | 55 | 70±2 | DN125 | 2400x1600x2100 | 2300 | |
| SLV-100A | 0.3 | 21.5 | 75 | 70±2 | DN125 | 2400x1600x2100 | 2500 |
| 0.4 | 20.0 | 75 | 70±2 | DN125 | 2400x1600x2100 | 2500 | |
| 0.5 | 16.5 | 75 | 70±2 | DN125 | 2400x1600x2100 | 2500 | |
| SLV-120A | 0.3 | 28.5 | 90 | 70±2 | DN150 | 2700x1850x2100 | 3200 |
| 0.4 | 25.0 | 90 | 70±2 | DN150 | 2700x1850x2100 | 3200 | |
| 0.5 | 21.5 | 90 | 70±2 | DN150 | 2700x1850x2100 | 3200 | |
| SLV-150A | 0.3 | 34.0 | 110 | 70±2 | DN150 | 3200x2150x2400 | 3500 |
| 0.4 | 28.0 | 110 | 70±2 | DN150 | 3200x2150x2400 | 3500 | |
| 0.5 | 23.0 | 110 | 70±2 | DN150 | 3200x2150x2400 | 3500 | |
| SLV-175A | 0.3 | 45.0 | 132 | 70±2 | DN150 | 3200x2150x2400 | 3600 |
| 0.4 | 32.0 | 132 | 70±2 | DN150 | 3200x2150x2400 | 3600 |
| MODEL | Capacity (Mpa) | Capacity (m³/min) | Power (KW/HP) | Noise (dB(A)) | Outlet (INCH) | Dimension (WxDxH mm) | Weight (Kg) |
|---|---|---|---|---|---|---|---|
| 0.5 | 29.0 | 132 | 70±2 | DN150 | 3200x2150x2400 | 3600 | |
| SLV-200A | 0.3 | 50.5 | 160 | 70±2 | DN200 | 3650x2350x2500 | 4500 |
| 0.4 | 45.0 | 160 | 70±2 | DN200 | 3650x2350x2500 | 4500 | |
| 0.5 | 34.0 | 160 | 70±2 | DN200 | 3650x2350x2500 | 4500 | |
| SLV-250A | 0.3 | 56.5 | 185 | 70±2 | DN200 | 3650x2350x2500 | 4800 |
| 0.4 | 48.5 | 185 | 70±2 | DN200 | 3650x2350x2500 | 4800 | |
| 0.5 | 45.0 | 185 | 70±2 | DN200 | 3650x2350x2500 | 4800 | |
| SLV-280A | 0.3 | 61.5 | 200 | 70±2 | Dn200 | 4000x2400x2650 | 5500 |
| 0.4 | 53.5 | 200 | 70±2 | Dn200 | 4000x2400x2650 | 5500 | |
| 0.5 | 45.0 | 200 | 70±2 | Dn200 | 4000x2400x2650 | 5500 |
The Energy-Saving Low Pressure Screw Compressor Series is Your Optimal Choice
