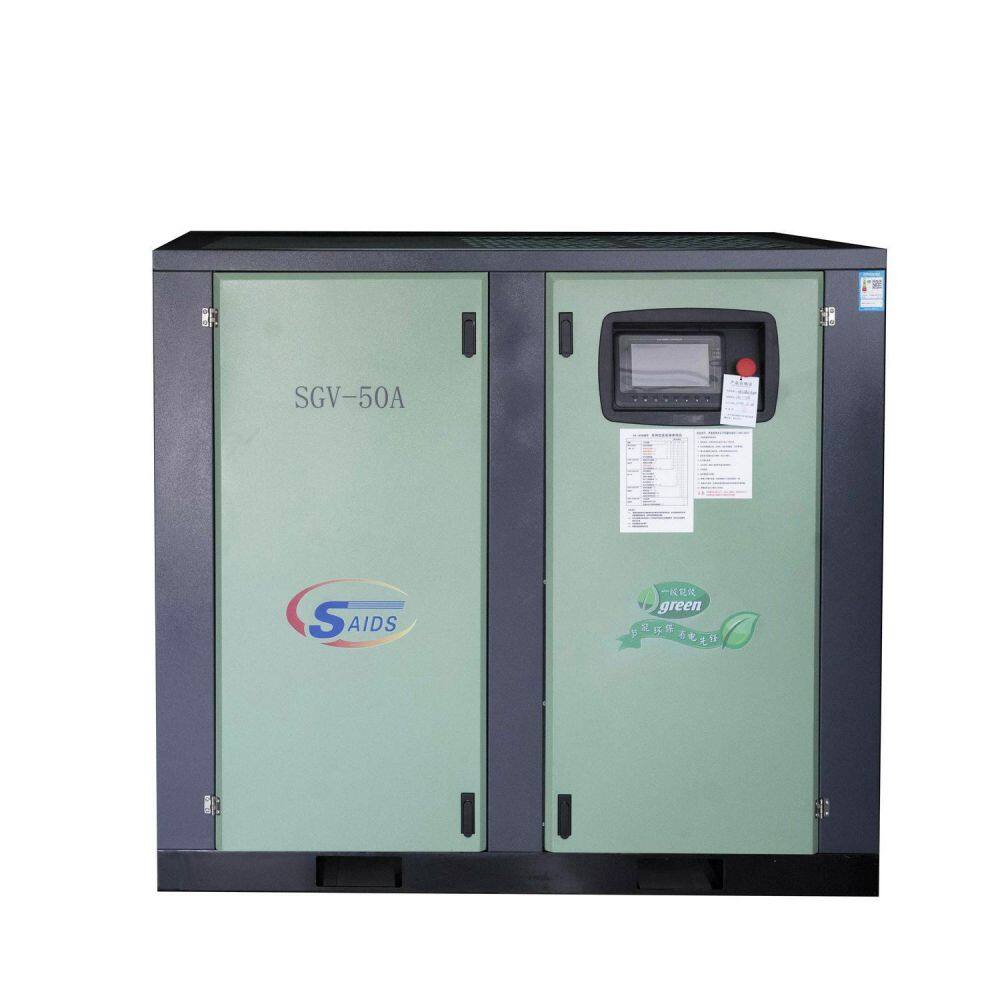

SCV Series Single-Stage Permanent Magnet Variable Frequency Screw Air Compressor
Product Overview
The SCV Series Single-Stage Permanent Magnet Variable Frequency Screw Air Compressor incorporates advanced PM motor technology with variable frequency drive to deliver exceptional energy efficiency and reliable performance. Through intelligent speed adjustment, the compressor precisely matches output to air demand, reducing energy consumption by significantly lowering operating costs. The single-stage compression design ensures simple structure and easy maintenance while maintaining high efficiency across various working conditions.
Energy Saving Principle
The permanent magnet frequency conversion compressor adjusts motor speed to control gas output, enabling smooth synchronization between gas production and demand. When air consumption decreases, both gas output and motor speed reduce accordingly. The frequency converter enables soft starting, minimizing grid impact and reducing inrush current. During low demand periods, the system achieves substantial power savings through volume regulation while maintaining stable operation.
Key Features & Advantages
Extended Compressor Life: Asymmetric rotor profile with ball bearing support and low-speed operation reduces wear and maintenance costs
Reduced Power Consumption: Frequency converter avoids grid impact and reduces motor resistance losses, improving power factor
Adaptive Performance: Maintains constant pressure supply through automatic speed adjustment according to demand changes
Soft Start Function: Eliminates high starting current impact on electrical systems
Precise Pressure Control: Maintains stable pressure within ±0.1 bar through precise frequency regulation
Technical Parameters of SGV Series Single-Stage Permanent Magnet Variable Frequency Screw Air Compressor
| MODEL | Capacity | Pressure | Power | Noise | Outlet | Dimension | Weight |
|---|---|---|---|---|---|---|---|
| m³/min | MPa | kW | dB(A) | Inch | W×D×H mm | kg | |
| SGV-10A | 1.1 | 0.8 | 7.5 | 65±2 | G3/4" | 900x650x750 | 180 |
| SGV-15A | 1.9 | 0.8 | 11 | 65±2 | G1" | 1050x750x930 | 260 |
| SGV-20A | 2.5 | 0.8 | 15 | 65±2 | G1" | 1050x750x930 | 300 |
| SGV-25A | 3.2 | 0.8 | 18.5 | 65±2 | G1 1/4" | 1250x800x1130 | 400 |
| SGV-30A | 3.7 | 0.8 | 22 | 70±2 | G1 1/4" | 1250x800x1130 | 450 |
| SGV-40A | 5.2 | 0.8 | 30 | 70±2 | G1 1/4" | 1250x800x1130 | 500 |
| SGV-50A | 6.6 | 0.8 | 37 | 72±2 | G1 1/2" | 1350x900x1250 | 620 |
| SGV-60A | 8.0 | 0.8 | 45 | 72±2 | G1 1/2" | 1350x900x1250 | 700 |
| SGV-75A | 10.2 | 0.8 | 55 | 72±2 | G2" | 1700x1200x1430 | 1200 |
| SGV-100A | 13.5 | 0.8 | 75 | 75±2 | G2" | 2020x1300x1600 | 1400 |
| SGV-120A | 16.5 | 0.8 | 90 | 75±2 | G2 1/2" | 2020x1300x1600 | 1800 |
| SGV-150A | 21.2 | 0.8 | 110 | 80±2 | DN65 | 2500x1550x1880 | 2600 |
| SGV-175A | 25.0 | 0.8 | 132 | 80±2 | DN65 | 2500x1550x1880 | 2800 |
| SGV-200AW | 28.5 | 0.8 | 160 | 82±2 | DN80 | 3500x1650x2000 | 3000 |
| SGV-250AW | 32.5 | 0.8 | 185 | 82±2 | DN80 | 3500x1650x2000 | 3500 |
| SGV-300AW | 36.5 | 0.8 | 220 | 85±2 | DN80 | 3900x1850x2130 | 3650 |
| SGV-350AW | 44.2 | 0.8 | 250 | 85±2 | DN80 | 3900x1850x2130 | 3800 |
| SGV-425AW | 51.0 | 0.8 | 315 | 88±2 | DN100 | 4400x2200x2150 | 4500 |
| SGV-485AW | 63.5 | 0.8 | 355 | 88±2 | DN100 | 4400x2200x2150 | 5100 |
