Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > 180/200/220 Class ISO Certificated Electrical Wires Enamelled Aluminium Winding Wire Inverter

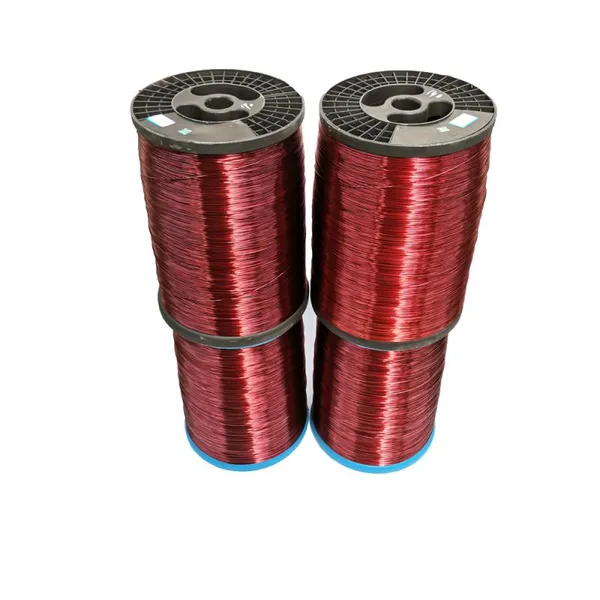

180/200/220 Class ISO Certificated Electrical Wires Enamelled Aluminium Winding Wire Inverter
US$ 4.20
500 - 4999 Kilograms
US$ 3.90
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Direct Supply Enamel Aluminum Transformer Winding Electrical Wires IEC60317 ISO9001certification HuiLongUS$ 4.10 - 4.50MOQ: 500 Kilograms -
High Quality Winding Round Aluminum Clad Coated Awg Swg Flat 31 Square Enamelled Price Enameled Aluminum WireUS$ 4.10 - 4.50MOQ: 500 Kilograms
-
Class130-220 Enameled Round Aluminium Wire Magnet Wire Aluminium Winding Wire SWG6-SWG35 GeneratorsUS$ 3.90 - 4.30MOQ: 500 Kilograms
-
PEW Electric Motor Winding Wire Enameled Aluminium Magnet Wire Electrical Wires AWG 4-32 GeneratorsUS$ 4.00 - 4.30MOQ: 500 Kilograms
-
High Grade Enameled Aluminum Wire Insulated Coating Magnet Wire Electrical Wires AWG4-32 HuiLongUS$ 3.90 - 4.30MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EIW 180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG Gauge
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.56mm-5.60mm
Certification:
ROHS REACH ISO9001
Bobbin:
PT25 PT30 PT60 PT200 PT270
Standard
IEC NEMA GB JIS
Product Description
Round Wire Diameter: 0.56mm-5.60mm (3awg-23awg)
Product Name:High temperature 180 grade PEW aluminum Enameled Round Winding Wires for motor
PT200 410*410*660 mm 65-75 KG AI/EIW 200
Product Name |
QZ(G)-155 |
QZ-180 |
Q(ZY/XY)-200 |
Q(ZY/XY)-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class C |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.56-5.60 |
0.56-5.60 |
0.56-5.60 |
0.56-5.60 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Standard |
GB/T6109.2
GB/T23312.4
IEC60317-3
|
GB/T6109.5
GB/T23312.5
IEC60317-8
NW30
|
GB/T6109.20
GB/T23312.7
IEC60317-13
NW35
|
GB/T6109.22
IEC60317-46
NW16
|
Techinical Data
Packing & Delivery
Certifications
Our Company
