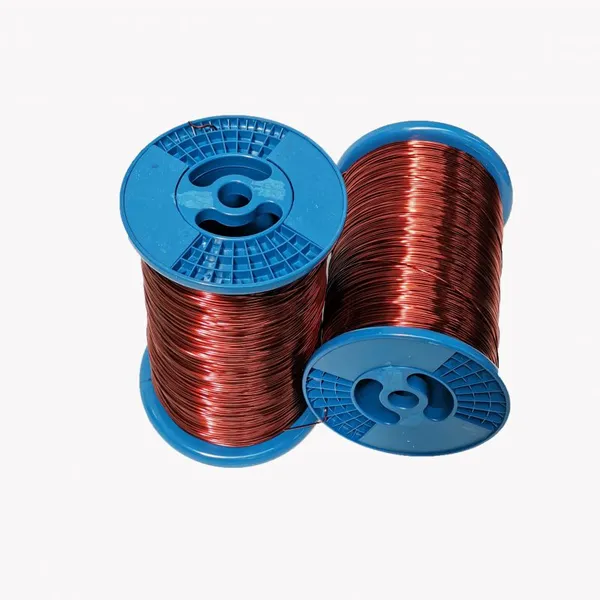

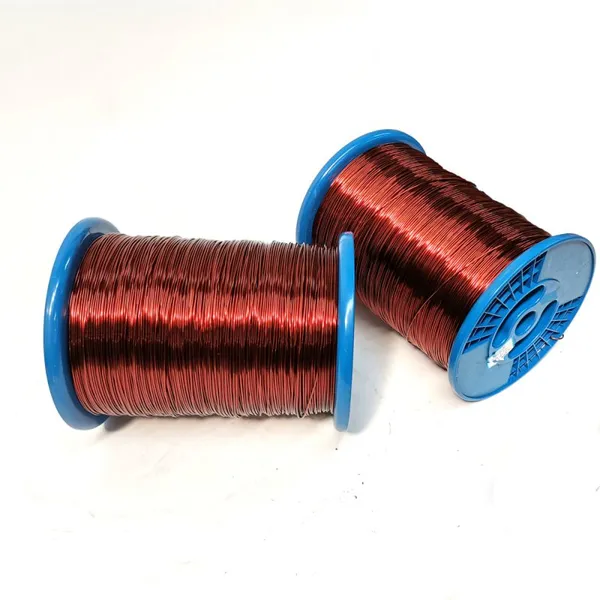

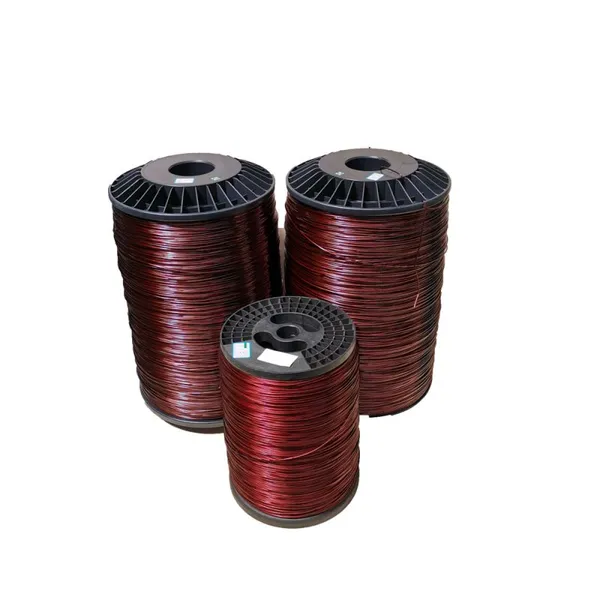

High Temperature Resistance Enameled Round Aluminium Magnet Wire Electrical Wires IEC60317 UL E234565 Inverter
US$ 4.30
500 - 4999 Kilograms
US$ 3.90
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heat Resistance Enameled Wire Aluminum AWG4-32 Insulated Aluminum Wire for Electronics IEC60317 InverterUS$ 3.90 - 4.20MOQ: 500 Kilograms -
Winding Wire Enameled Aluminum UL Certified Insulated Aluminum Magnet Wire Electronics Wires AWG4-32 InverterUS$ 3.90 - 4.20MOQ: 500 Kilograms
-
Ceiling Fan Winding Wire Aluminum Enameled Magnet Winding Wire AWG4-SWG32 IEC60317 Standard UL Certification InverterUS$ 3.90 - 4.30MOQ: 500 Kilograms
-
Electric Wire Manufacturing Enameled Aluminium Ceiling Fan Winding Insulated Wire IEC-60317 AWG4-32 UL Certification HuiLongUS$ 3.95 - 4.35MOQ: 500 Kilograms
-
H Class Enameled Aluminum Round Wire With PT 25/ PT 30/ PT 60/PT 200/PT 270 Spool QatarUS$ 3.8 - 4.5MOQ: 1 Kilogram
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EIW180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Standard
IEC NEMA GB JIS
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire swg

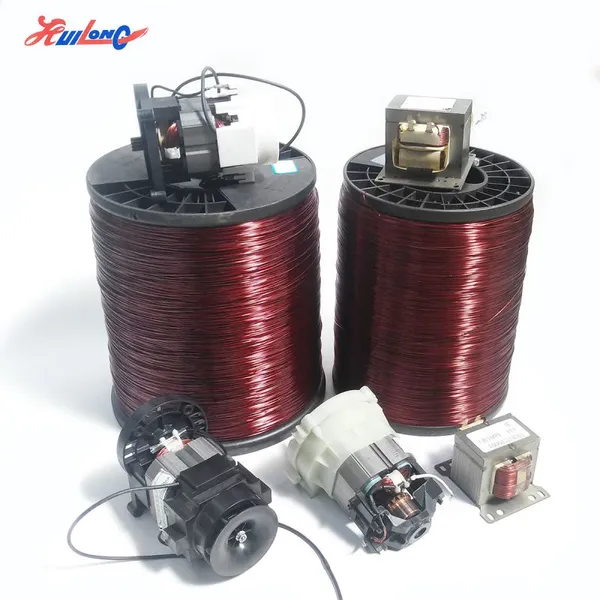

Product Name: 200 class enameled aluminum wire for transformer cleaning machine
SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
Product Details
Product Paramenters
Product Name |
QZ(G)-155 |
QZ-180 |
Q(ZY/XY)-200 |
Q(ZY/XY)-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class N |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.20-5.00 |
0.20-5.00 |
0.20-5.00 |
0.20-5.00 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Standard |
GB/T6109.2
GB/T23312.4
IEC60317-3
|
GB/T6109.5
GB/T23312.5
IEC60317-8
NW30
|
GB/T6109.20
GB/T23312.7
IEC60317-13
NW35
|
GB/T6109.22
IEC60317-46
NW16
|
PT200 spool |
410*410*660 mm 65-75KG |
410*410*660 mm 65-75KG |
410*410*660 mm 65-75KG |
410*410*660 mm 65-75KG |
Advantage
Packing & Delivery
Certifications
Our Company
Send Inquiry to This Supplier
1Yr
Business Type
Manufacturer
Year Established
1970
Factory Size
10,000-30,000 square meters
Annual Export Value
Above US$100 Million
