Home > Products > Enamelled Aluminum round wire > EIW Winding Enameled Aluminum Magnet Insulated Wire Ceiling Fan Winding Electrical Wires AWG4-32 Pakistan

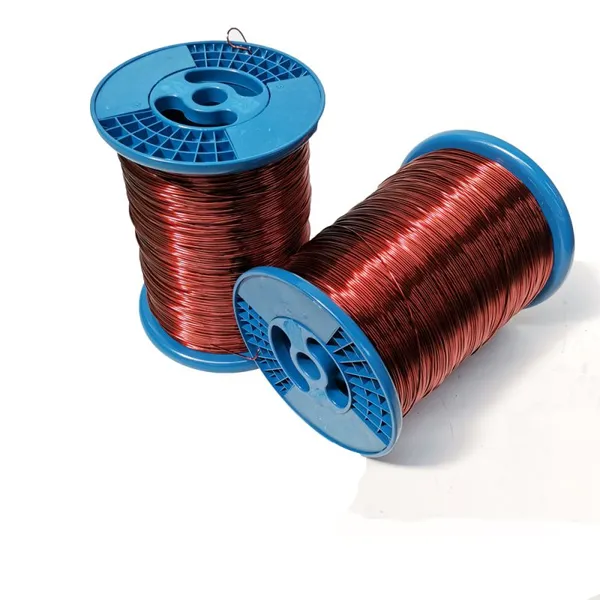

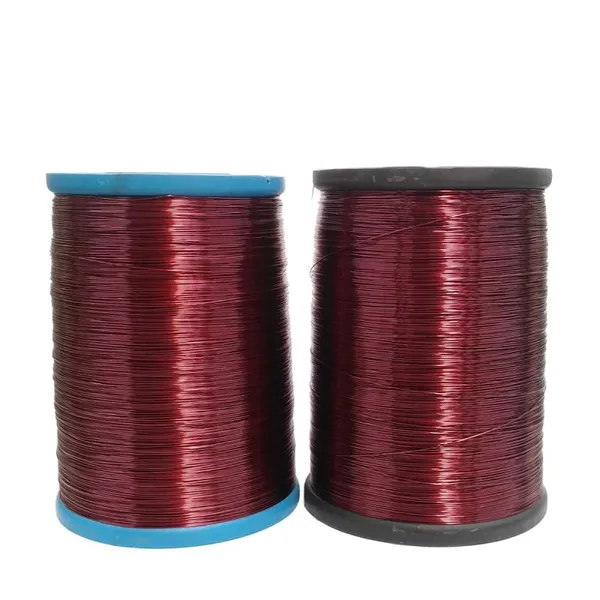

EIW Winding Enameled Aluminum Magnet Insulated Wire Ceiling Fan Winding Electrical Wires AWG4-32 Pakistan
500 - 4999 Kilograms
≥5000 Kilograms
You May Like
-
Factory Price Electrical Wires Class 220 Aluminium Enameled Round Wire Magnet Wire for Voice Coil Generators
-
High Quality 200 Class AWG4-32 Enameled Aluminum Wire For Winding for Motor Insulated Aluminum Wire Pakistan
-
Wholesale Class 220 Enameled Round Aluminum Wire Electrical Wires for Motor and Transformer HuiLong
-
Ceiling Fan Winding Magnet Wire Aluminum Enameled Electrical Wires SWG 30 31 32 for Transformer Pakistan
-
Electric Motor Winding Wire UL Certified Insulated Aluminum Magnet Wire Electrical Wires AWG4-32 Inverter
-
Aluminium Coil Transformer Winding UL Certified Insulated Aluminum Magnet Wire Electronics Wires AWG4-32 Inverter
Product Details
| Type | Insulated | |||
| Conductor Material | Aluminum | Conductor Type | Solid | |
| Model Number | EI/AIW-200 | Brand Name | YONGDONG | |
| Place of Origin | Shandong, China(Mainland) | Diameter: | AWG/SWG | |
| Style: | Enameled Aluminum Wire | Shape: | Round | |
| Heat-resisting class: | C class | Insulation Material: | polyester-imide, Polyamide imide | |
| Production Range: | 0.20mm-5.00mm | Certification: | ROHS REACH ISO9001 | |
| Bobbin: | PT25 PT30 PT60 PT200 PT270 | Standard | IEC NEMA GB JIS | |
| Conductor | Aluminum |
Product Description
Round Wire Diameter: 0.6mm-5.00mm (4awg-32awg) Magnetic wire swg





Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.60-5.00 | 0.60-5.00 | 0.60-5.00 | 0.60-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |










Company Profile
Shandong Huilong Electrical Material Co.,ltd. was founded in 1970. The factory is located in the north area of Tianqu Industrial Park, Dezhou City, Shandong Province. It has a registered capital of 3 million RMB. It covers an area of 23,310 square meters and it is a modern enterprise with a history of more than 50 years of professional enameled wire production. Welcome to visit our factory Shandong Huilong Electrical Material Co.,ltd. We renew our machinery park and our quality control laboratory with up-to-date technologies and increase our activity across international markets day by day. The company's products are widely used in Photovoltaic inverters,UPS inverters,power transformers, new energy electric vehicles, aerospace, Speaker coil,welding machines,instrumentation,household appliances,refrigeration compressors,deflection coils, high-frequency transformers,motors,electronics, power tools and other fields. The company's products are all based on IEC-60317, GB/T, JIS and NEMA production standards. With the in-depth development of global economic integration, in order to cope with the new opportunities and challenges brought by the international market, the company adheres to the business philosophy of “survive by quality and develop by credit”. The annual production capacity is up to 12,000 tons under full load. Shandong Huilong Electrical Material Co.,ltd. Our products have been exported to more than 50 countries in Europe, North America,South America,Africa, the Middle East and other regions. We offer customer specific solutions, tailor-made to suit every possible need. Whether standard or special, all our products are sustainably manufactured in a high-precision process using state-of-the-art technology. Please check out our product guide for more information!
