Steel plate shot blasting machine is used for shot blast cleaning steel plate surface rust and paint the steel surface with a protective coat with our new processing technology. The steel plate pretreatment line can be used in ships, cars, locomotives and rolling stock, bridges, machinery and steel industries.

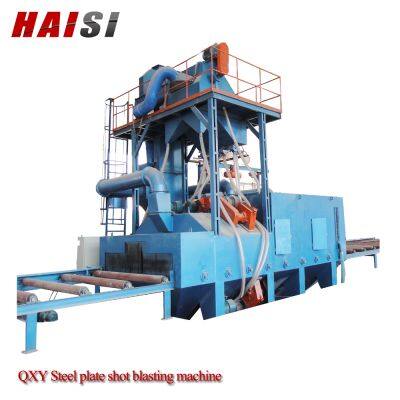

Steel Plate Shot Blasting Cleaning and Painting Pretreatment Line Machine
Usage:
After pre-treatment of steel products with our steel plate shot blasting cleaning machine, we can improve the mechanical and corrosion-resistance of the metal components ability and can improve greatly anti-fatigue properties of steel to extend steel using life. By using steel plate shot blasting cleaning machine we also can optimize the production process of steel surface, and is conducive for cutting machine CNC cutting and precision blanking . In addition, the use of steel plate pre-treatment shot blasting processing technology can enhance the efficiency of clean-up and also can be used to reduce labor intensity and the pollution of the environment. Our steel plate shot blasting machine has high automatic operation function by adopting PLC and other automatic control system.
Technical Specifications:
No |
Name |
Unit |
Type1 |
Type 2 |
Type 3 |
1 |
The width of the workpiece |
mm |
Under 2500 |
under3500 |
Under 4500(plate) |
2 |
Model |
QXY2000,QXY2200,QXY2500 |
QXY3000,QXY3200,QXY3500 |
QXY3500,QXY4000,QXY4500 |
|
3 |
Plate width (Max) |
mm |
The number after QXY |
The number after QXY |
The number after QXY |
4 |
Plate thickness |
3~60 |
3~60 |
3~100 |
|
5 |
The smallest section of profile |
mm*mm |
60*80 |
60*80 |
------ |
6 |
The largest section of profile |
mm*mm |
1000*300 |
1000*300 |
------ |
7 |
The shortest workpiece |
mm |
2400 |
2400 |
2400 |
8 |
Maximum workpiece |
mm |
12000 |
12000 |
12000 |
9 |
Conveyor speed |
m/s |
1~5(Note) |
0.5~4(Note) |
4~6(single) |
10 |
Derusting Quality Level |
ISO8501-1,1988 |
GB8923-88 |
(Bsa2.5) |
|
11 |
Surface roughness |
μm |
40~70 |
40~70 |
40~70 |
12 |
Paint Film thickness |
μm |
15~25 |
15~25 |
15~25 |
13 |
Paint type |
Quick-drying-type zinc-rich primer |
Quick-drying-type zinc-rich primer |
Quick-drying-type zinc-rich primer |
|
14 |
Installed Power |
kw |
According to the actual situation |
According to the actual situation |
According to the actual situation |
15 |
Compressed air consumption |
m3/min |
5~7 |
5~7 |
5~7 |
16 |
Compressed air pressure range |
MPa |
0.4~0.6 |
0.4~0.6 |
0.4~0.6 |
17 |
The first addition of the shot ball |
T |
8~10 |
8~10 |
12~16 |
Above is our standard parameter, we also can manufacture non-standard product as per customer's requirement.
Key technology and assurance measures we adopt for our steel plate pretreatment production line:
Workpiece conveyor system:
1. One of the roller sides has steel plate to arrange the roller, to load the steel plate material conveniently.
2. The whole workpieces conveyor system is frequency timing, not only to synchronously running, but also can individual operated.
3. The roller of Shot blast cabinet has special wear-resistant jacket.
Preheating cabinet
Preheating cabinet used high infrared ray eradiating type heating device can directly heat the steel work pieces. We can use gas burner directly to dispose moisture and oil or use electric, light diesel oil or gas to heat. This mechanism has adopted over heating protecting device and safety device to prevent exploding.
Shot blasting cleaning chamber
1. Workpieces detect devices are out of the shot blast cabinet to avoid the shot and powder dust.
2. With Switzerland +GF+ shot blast Wheel, shot blast quantity are large, the life of the blade more than 600 hours.
3. Workpiece height automatic measurement, can automatically adjust the open of the shot valve.
