Help CenterRoller Type H Beam Shot Blasting Machine
Related Products
H beam and steel structure sandblaster, Cleaning Equipments in the processing refers to the former (that is, a state of raw materials) for shot blasting the surface rust and painted with a protective coat of processing technology. After pre-treatment of steel products can improve the mechanical and corrosion-resistant metal components ability of anti-fatigue properties of steel, extending its life; but also can optimize the production process of steel surface, and is conducive to cutting machine CNC cutting and precision blanking . In addition, pre-processing of steel as a result of comparing the shape of the rules in favor of mechanical and automated spray paint rust, so the use of steel pre-treatment can enhance the efficiency of clean-up, clean-up operations to reduce labor intensity and the pollution of the environment. In recent years, as a result of the use of PLC control, automation equipment, greater emphasis has been improved.
1.Roller throuth type H beam and steel structure sandblaster Paramter:
Parameter |
Q698 |
Q6912 |
Q6915 |
Q6920 |
Q6925 |
Q6930 |
Q6940 |
The effective cleaning width(mm) |
800 |
1200 |
1500 |
2000 |
2500 |
3000 |
4000 |
Dimesion of inlet opening |
1600*800 |
1200*400 |
1700*400 |
2200*400 |
2700*800 |
3200*800 |
4200*400 |
The length of cleaning workpiece(mm) |
1200-12000 |
1200-1600 |
1200-12000 |
1200-12000 |
3000-12000 |
2400-12000 |
4500-18000 |
The speed of conveyer(m/min) |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
The thickness of cleaning steel sheet (mm) |
3-60 |
3-60 |
1.5-60 |
3-60 |
3-60 |
3-110 |
4.5-100 |
Shot ball flow rate (kg/min) |
4*120 |
4*250 |
4*250 |
6*250 |
6*250 |
6*360 |
8*360 |
The shot ball first loading (kg) |
4000 |
4000 |
4000 |
4500 |
4500 |
8000 |
11000 |
Roll brush adjusting height (mm) |
200 |
200 |
350 |
450 |
600 |
850 |
900 |
Air capacity(m3/h) |
22000 |
17560 |
19000 |
19550 |
27758 |
28050 |
38000 |
Total power (kw) |
90 |
78.3 |
113.5 |
156.6 |
204.8 |
224.55 |
293.6 |

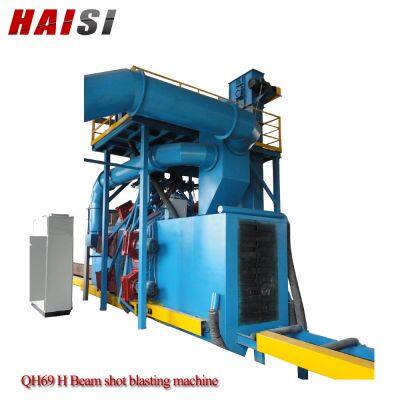

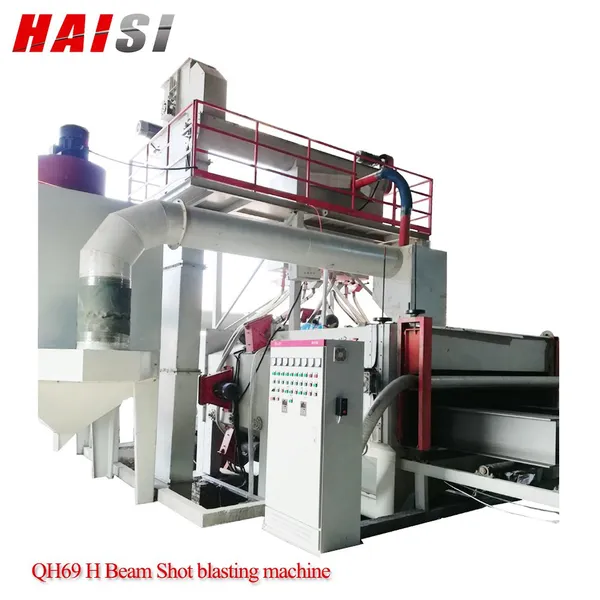

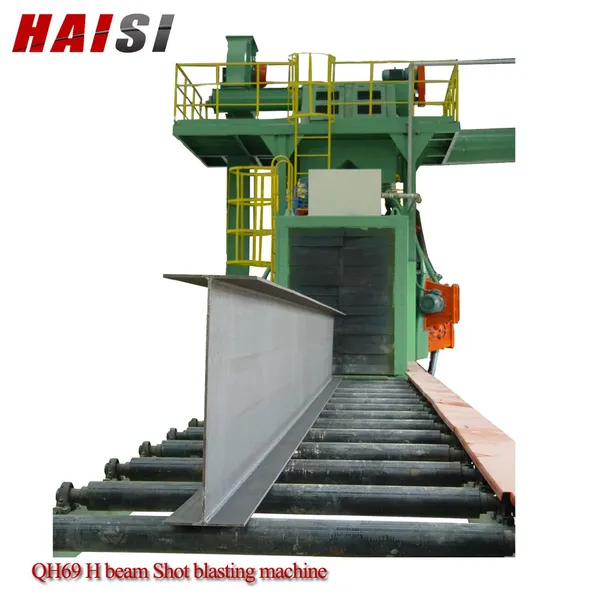

Beam shot blasting machine belongs to roller-type shot blasting machine, mainly used in buildings, bridges, and other industries. Used for surface rust cleaning of large size steel structure and H-beam. We can manufacture large non-standard cleaning machine according to customers’ different requirements.
