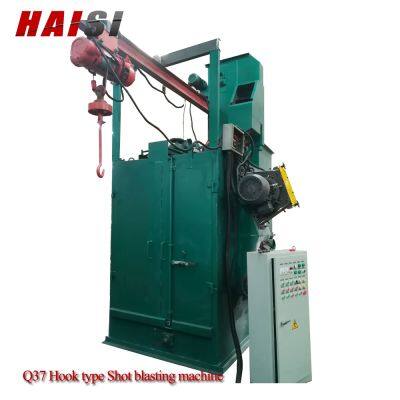

Q37 Hook type shot blasting machine
Usage:
The hook type shot blasting machine particularly suited:
1. Castings, forgings and steel parts for surface cleaning and enhancement.
2. Heat treatment on the surface clean-up and enhancement.
3. Blasting through-cleaning machine applies equally to aluminum alloy wheels, round or square billet, bar, and the work piece to clean the work piece.
Advantages:
Protecting plate:
The cabinet of main impacting district has the high wear-resistant steel manganese 13. This protecting plate is our new research, installing more simply and repairing more conveniently.
Sealed:
Shot blast cleaning cabinet adopts high quality plate ,which is welding together inside the cabinet there is highly wear-resistant cast iron protecting plate, which are toy-brick-type installed, long endurance and easy to maintain and have good sealed effect.
Door:
The door is double leaves sliding door. Inside the door there are wear-resistant rubber sheeting ,the use of steel plate and pressed with special Hex Nuts;There are foam rubber around the sticky tape, to effectively seal around the door;The shot balls have received under the trough, will be brought out to open the door, projectile fell on the ground to prevent people from slipping injuries. Door to door in the shaft with oil cup, so that the door-lubricating bearings with loose-leaf.
Shot blasting recycling & purifying system:
This system can be divided into the Abrasive recycling system and purify System, they consist of abrasive hopper, Abrasive conduit, shot valves (Blast wheel Assemblies), screw conveyors, bucket Elevator, abrasive /dust and separator, etc
Track:
The use of the track of the workpiece hanging hook mode of transport. It made of 16 # I-steel, Fixed by the orbital elements of the upper chamber in the clean-up
Hook system:
By the hook, deceleration devices, friction wheel, electric hoist component parts. Complete the hanging of the system upgrade, and enter the cleaning chamber, in the rotation of the self-driven device so that the workpiece in the chamber can be rotation.
For the double-hook shot blasting machine, hook independent walking track, work-for-needless to track. In this way, operators can work in a hook at the same time the workpiece loading and unloading with another hook, which has effectively improved the production efficiency.
Rotation speed devices:
Composed by reducer, friction wheels, the size of bevel gears, rotary support part of the base, etc.Working Principle:Through the bevel gear reducer drive, friction wheel driven back to around its own axis for rotation, and the friction wheel is driven passive hook system rotation round, clean-up work in order to achieve the rotation in the clean-up room, so that the blast on a workpiece conduct a comprehensive clean-up surface.
After many years of efforts, The workpieces weight can be 20 T; up to a maximum of 18m;the largest cross-section is 8000*8000mm. We also can manufacture non-standard product as per customer's requirement.
