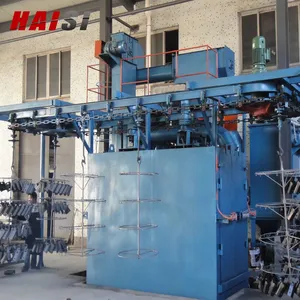

Q38 Series Hanging Chain Shot Blasting Machine
This machine has high production efficiency, also suitable for mass production of small and medium sized castings, forging and heat treatment of a surface to clean up or strengthened, particularly for automobiles, tractors, diesel engines, motors, valves, and other industrys
Q48、Q58Chain step type is suitable for cleaning of steel castings, forgings, mass production, as a result of step methods, improve the utilization and productivity of projectile, on the surface and inner cavity of the more complex work, such as engine cylinder cover and the motor Shell cleaning .

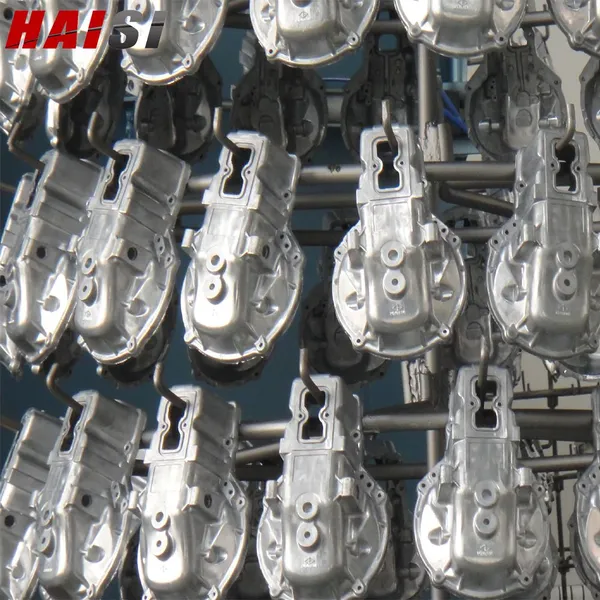

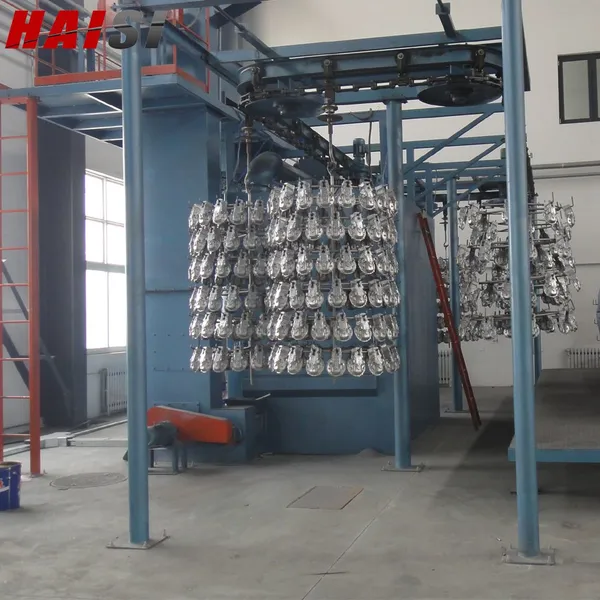

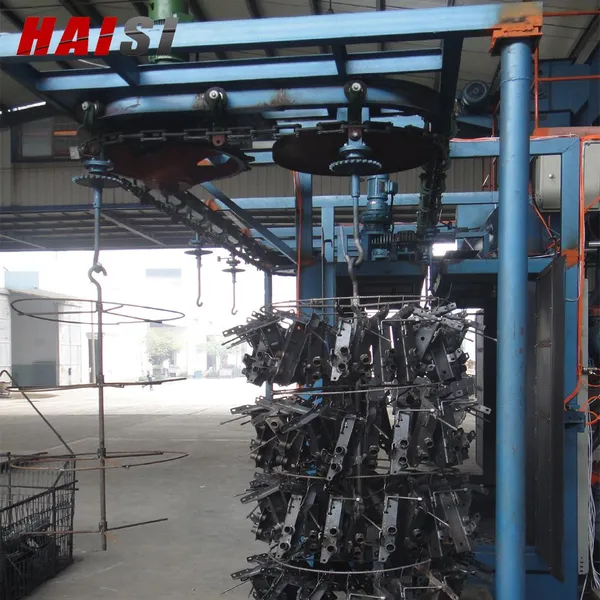

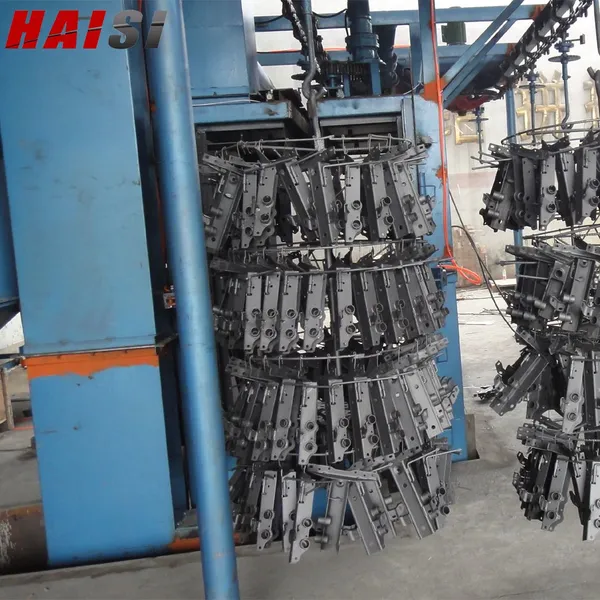

This series hook type shot blast cleaning machine, is mainly used for casting, structural, non-ferrcus alloy parts and other parts of the surface cleaning, shot blasting cleaning machine of this series at a single hook, double hook-type, , lifting style and many other models. It has the advantages of not pit, compact structure, and high productivity.
This Type shot blasting machine Technical:
Item |
Unit |
Q383C |
Q384C |
Q385C |
Productivity |
Hook/h |
50,65 38,49 |
70,80 |
75 |
Hook running speed |
m/min |
0.5,0.65 |
0.8,0.93 |
0.65 |
Single hook Loading |
kg |
250 |
400 |
500 |
Hook distance |
mm |
600,800 |
800 |
800 |
Abrasive follow rate |
kg/min |
4×250 |
6×250 |
5×250 |
Total ventilation |
m3/h |
18000 |
26500 |
23700 |
Workpiece Size |
mm |
Dia. 500×1200, Dia. 700×1200 |
Dia. 700×1500 |
Dia. 700×1500 |
Outline dimension |
mm |
11764×5525×8254 |
15308×14706×9542 |
11783×10063×7500 |
The depth of the pit |
mm |
2070 |
2667 |
1700 |
Power consumption |
kw |
75.3 |
122.6 |
106.75 |
Total Weight |
Kg |
19370 |
53600 |
31877 |
