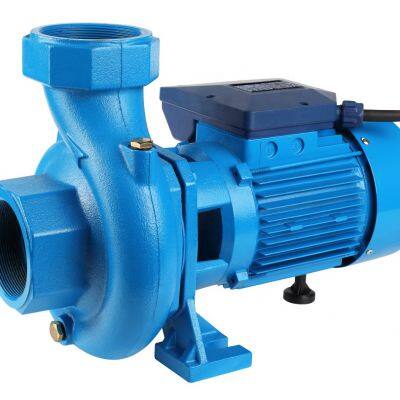

Nfm Series 1inch 2inch 3inch 4inch Centrifugal Water Electric Pump for Irrigation

Nfm Series 1inch 2inch 3inch 4inch Centrifugal Water Electric Pump for Irrigation thumbnail-1
Nfm Series 1inch 2inch 3inch 4inch Centrifugal Water Electric Pump for Irrigation thumbnail-2
Nfm Series 1inch 2inch 3inch 4inch Centrifugal Water Electric Pump for Irrigation thumbnail-3
Nfm Series 1inch 2inch 3inch 4inch Centrifugal Water Electric Pump for Irrigation thumbnail-4
Nfm Series 1inch 2inch 3inch 4inch Centrifugal Water Electric Pump for Irrigation photo-1

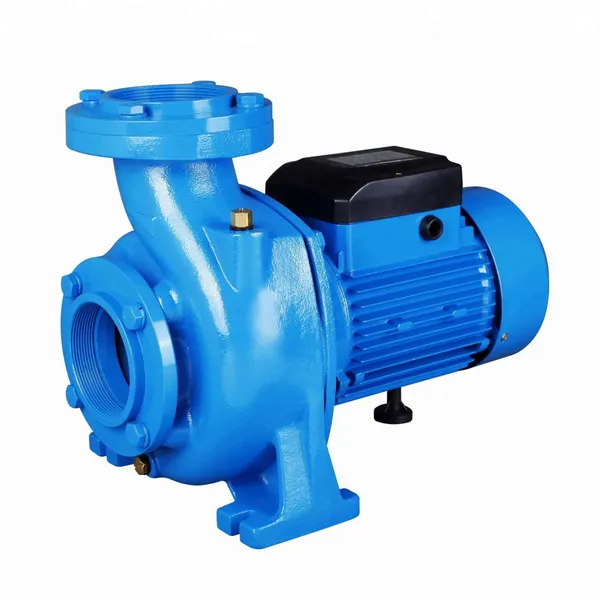

Nfm Series 1inch 2inch 3inch 4inch Centrifugal Water Electric Pump for Irrigation photo-2

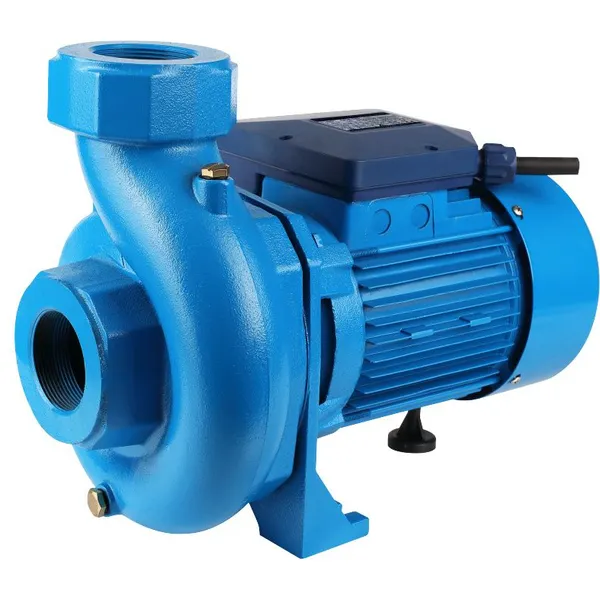

Nfm Series 1inch 2inch 3inch 4inch Centrifugal Water Electric Pump for Irrigation photo-3

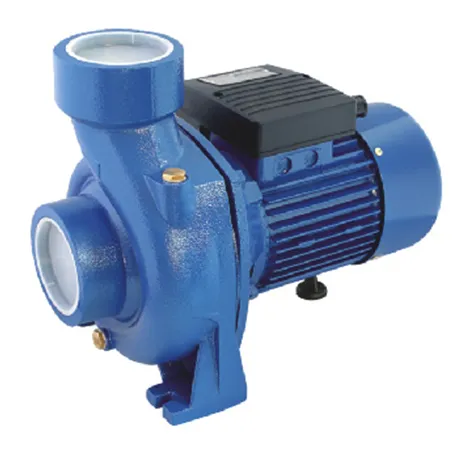

Nfm Series 1inch 2inch 3inch 4inch Centrifugal Water Electric Pump for Irrigation photo-4
US$ 600 - 1000 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Output Type:
AC Three Phase
Transport Package:
PLYWOOD CASE
Specification:
2 3 4 INCH
Contact Supplier Request Quote Chat Now
Fuzhou Sinostar Power Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Output Type AC Three Phase
Transport Package PLYWOOD CASE
Specification 2 3 4 INCH
Trademark SINOSTAR
Origin CHINA

Nfm Series 1inch 2inch 3Inch 4inch Centrifugal Water Electric Pump for irrigation

NFM Pumps are specifically designed to achieve high delivery rates with low to medium heads for industrial and agricultural use,pumping water from lakes,river and wells .

- Pump body: Cast iron

- Impeller: Brass(Cast iron if required)

- Motor: Closed, externally ventilated

- Insulation class: B(Class F if required)

- Protection class: IP44/IP54

- Duty: Continuously rated

- Mechanical seal: φ 16 ceramic steatite/graphite

- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)

The normal power standard is 220V 50Hz single phase.

Three phase 220/380V/50Hz, 220/440V/60Hz,

Single phase 230V, 240V, 127V, 110V,11 5V/60Hz models are available on request

SPECIFICATIONS

TYPE power

Ampere

 R.P.M

Q.Max

(I/min)

H.Max

(m)

S.Head

(m)

 Pipe Dia

L*W*H

(mm)

N.W

(kg)
HP KW 1~220V 3~380V

NFw-100

 1.0 0.75 5.0 - 2850 220 17 9 1½"*1½" 350*180*215

13.2

NFw-150T

 1.5 1.1 7.5 2.7 380 16 2"*2" 370*210*250

18.1

NFw-20OT

 2.0 1.5 9.5 3.5 400 20

19.3

NFw-150A/T

 1.5 1.1 7.5 2.7 800 11 3"*3" 435*265*350

32

NFm-150/T

36

NFw-200A/T

 2.0 1.5 9.5 3.5 900 19

34

NFm-200/T

38

NFw-300/T

 3.0 2.2 13.5 5 1000 19

37

NFm-300/T

41

NFw-300A/T

 3.0 2.2 13.5 5 1200 15 4"*4" 435*285*350

38.6

NFw-400/T

 4.0 3.0 - 7.2 1300 18 520*285*350

45
