Home > Industrial Equipment & Components > Power & Generating Sets > Other Generators > SPJ Series 6INCH Diesel Water Pump Sets Powered by Diesel Engine

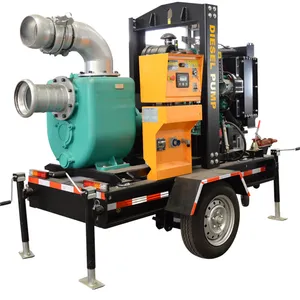

SPJ Series 6INCH Diesel Water Pump Sets Powered by Diesel Engine

Fuzhou Sinostar Power Co.,ltd

SPJ Series 6INCH Diesel Water Pump Sets Powered by Diesel Engine thumbnail-1

SPJ Series 6INCH Diesel Water Pump Sets Powered by Diesel Engine photo-1

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Output Type:

AC Single Phase

Transport Package:

PLYWOOD CASE

Specification:

4 6 8INCH

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

FUZHOU

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Output Type AC Single Phase

Transport Package PLYWOOD CASE

Specification 4 6 8INCH

Trademark SINOSTAR

Origin CHINA

SPJ Series 6INCH Diesel Water Pump Sets Powered by Diesel Engine

General features:
Composed of WATER COOLED diesel engine and wet-prime centrifugal pump
12V DC start motor and storage battery
Abrasion-resistant cast iron centrifugal pump
50ºC radiator as standard
Key start panel control system as standard
Base fuel tank
Optional open type or silent type ,mobile type
All pump sets are rigorously tested according to ISO 9906 standard before delivery.

Pump Set Main Technical Data

Pump Set MODEL	Pump Set Specification					Engine Specification				Pump Model
	Max. Flow rate (M3/H)	Max. head (M)	Solids handling (MM)	dB(A) @7m	Tank (L)	Model	Cyl.	Gov.	Cons @ B.E.P. (L/H)


SPJ6-200	260	30	76	70	100	4B3.9-G2	4	E	8.5	SP6ZW200-22

Pump Model				SP6ZW200-22
Operating speed				1750 RPM
Max. absorbed power				22.4 kW
Max. suction head				7 m
Pump casing				Cast iron
Impeller				Ductile iron
Impeller diameter				285 mm (11.25'')
Pump shaft material				304 stainless steel
Shaft seals type				Mechanical seal

Engine data

Engine Model					4B3.9-G2
Number of Cylinders					4
Cylinder arrangement					Vertical in-line
Cycle					Four stroke
Aspiration					Naturally Aspirated
Bore×Stroke (mm×mm)					102*120
Displacement (Liter)					3.9
Compression Ratio					16.5:1
Rated Power/Speed (kW/rpm)					27/1800RPM
Max Power/Speed (kW/rpm)					30/1800RPM
Speed Governor					Electronic
Cooling System					Water-cooled, 50ºC radiator as standard
Speed Stability (%)					≤3%
Total lubrication system capacity (L)					10.9
Coolant capacity (without radiator) (L)					7.2
Fuel Consumption at best efficiency point (L/H)					8.5
Starter Motor					DC24V
Start type					Electrical
