Help CenterAutomobile Glove Box Hot Plate Welding Machine
Related Products
-
Serve Hot Riveting Machine With Reliable and Stable Performance and Good Welding Effect. Jin Changxing Car Decoration Bar Hot Riveting.US$ 150MOQ: 1 Combo -
Liquid Administration Port Welding; Digital Automatic Frequency Tracking; Jin Changxing Ultrasonic Welding Machine.US$ 800MOQ: 1 Combo
-
Servo Hot Riveting Machine With Reliable and Stable Performance; Jin Changxing Car Decoration Bar Hot RivetingUS$ 150MOQ: 1 Combo
-
Jin Changxing Hand-held Ultrasonic Welding Machine; Automatic Frequency Tracking; Puncture WeldingUS$ 800MOQ: 1 Combo
-
Handheld Ultrasonic Welding Machine; Plastic Spot Welding Machine; Jin Changxing UltrasonicUS$ 800MOQ: 1 Combo

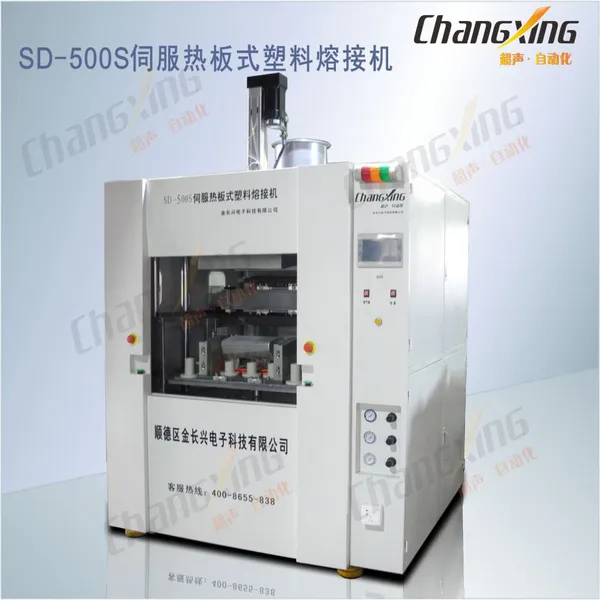

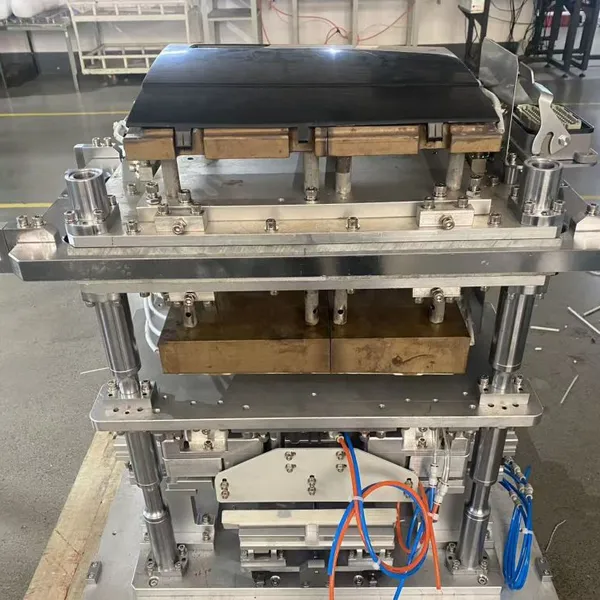

Working principle of the hot plate type plastic welding machine: The plate type plastic welding machine mainly uses a temperature-rollable heating plate to weld plastic parts. During welding, the heating plate is placed between two plastic parts, and when the parts are pressed against the heating plate, the plastic to melt. After a pre-set heating time, the plastic on the surface of the parts will reach a certain degree of melting, at which point the parts are separated to both, the heating plate is removed, and then the two parts are combined together, applying a certain pressure and depth control. When the welding time and welding depth are reached, the entire process is completed. Configuration parameters: 1. Area of the upper pressure plate: 520x240mm 2. Area of the lower pressure plate 660x240mm 3. Maximum distance between the upper and lower pressure plates: 570mm 4. Area of the hot mold:380x220mm; 5. Maximum welding area of the workpiece: 350x200mm; 6. Working power supply:380V, 50Hz; 7. Working air pressure: 0.2-0.8Mpa; 8. Linear guide: ABBA used; 9. Program control: OMRON PLC is used; 10. Temperature controller: OMRON is used; 11. LCD display:7-inch display from Willerton is used; 12. The machine is equipped with 2 sets of programs for selection; 13. Dimension: 100*820*1820mm. Workflow: Place the product's lower glue part - the lower fixture is sucked together - place the products upper glue part → the upper fixture is sucked together → press the start button → the hot plate moves in → the lower pressure plate is up, the upper pressure plate is downmoving relatively at the same time) → hot pressing → the upper pressure plate is up, the lower pressure plate is down → the hot plate moves back → the upper pressure plate is, the lower pressure plate is up ← bonding > the upper fixture is released → the upper pressure plate is up, the lower pressure plate is down ← the lower is released → take out the product The hot plate plastic welding machine uses a single-chip microcomputer (microcomputer) control technology, independently develops a touch screen control system (OMRON) temperature controller. All pneumatic components are brand-name products, and the heating elements are also high-quality products. This equipment has the characteristics of reliable stable performance, good welding effect, and high efficiency. This equipment is specially designed and developed for the automotive industry by our factory. It is an automotive instrument welding equipment. It a multi-unit combination body and uses computer process control to implement welding of large and irregular parts. The equipment is designed reasonably, easy to operate, and has a high degree of. Applicable to: welding of large products such as car dashboards, bumpers, front and rear doors, lights, brake lights, tail lights, etc
