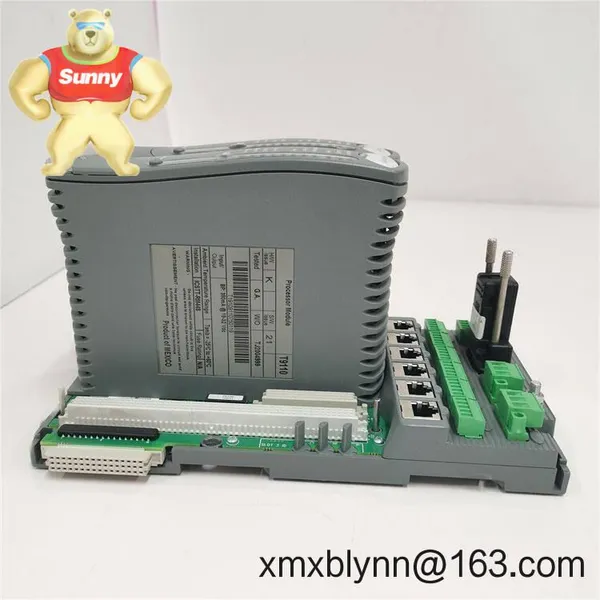

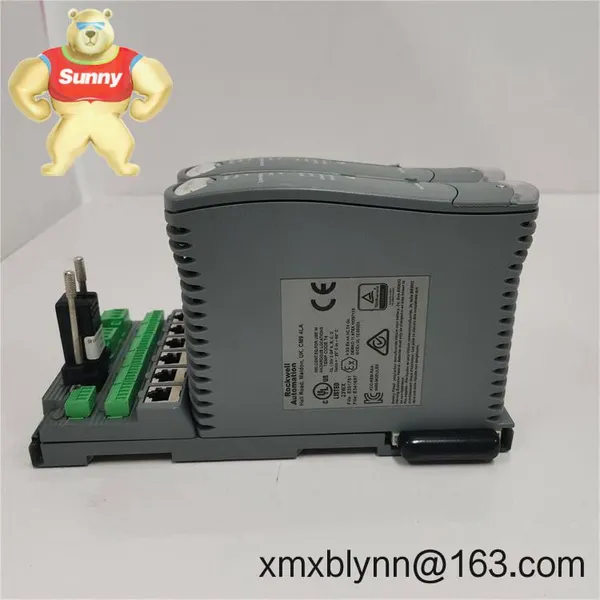

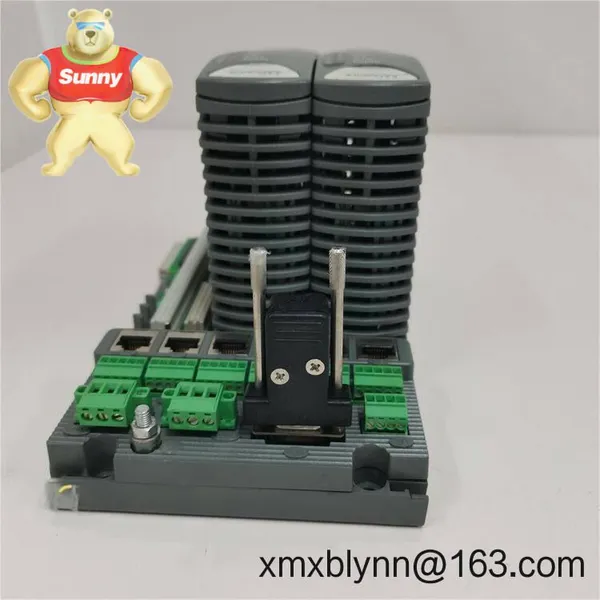

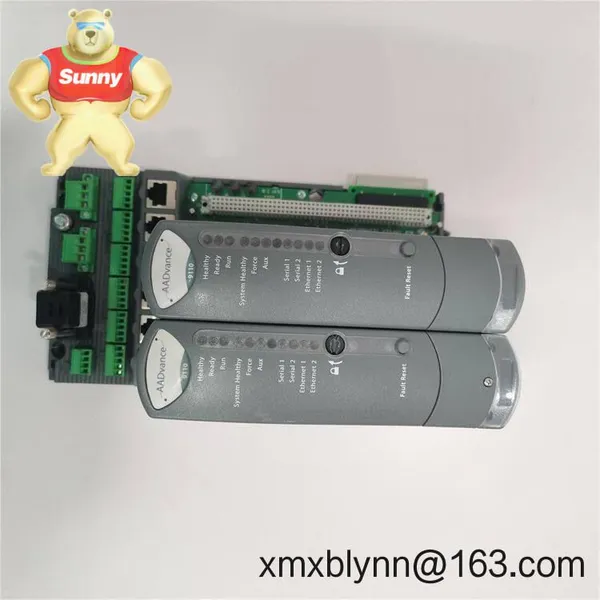

Help CenterICS T1910+9100710010 Module+Base: Reliable I/O Expansion for Industrial Control Systems
Related Products
-
ICS Triplex 9300-9832 Analog Input TA Module: Your Safety System's Reliable Signal InterpreterUS$ 2216.00MOQ: 1 Blade -
ICS Triplex 9852-9802: Rock-Solid Digital Output for Critical Control SystemsUS$ 2216.00MOQ: 1 Blade
-
ICS Triplex 9300-9852 Digital Output Module: Keeping Legacy Control Systems AliveUS$ 2216.00MOQ: 1 Blade
-
ICS TRIPLEX T8111C: Your Safety System’s Redundancy Backbone for Critical ProcessesUS$ 2216.00MOQ: 1 Blade
-
ICS Triplex T8151B Triple Redundancy PLC: Mission-Critical Control for Unforgiving EnvironmentsUS$ 2216.00MOQ: 1 Blade
Integrated module+base design – No more mismatched components or wiring mistakes during installation. The base's locking tabs actually hold firm in high-vibration environments (unlike some brands where they snap off).
True channel-to-channel isolation – Typically handles 1500V surges without breaking a sweat. I've seen this prevent entire line shutdowns when neighboring equipment shorts out.
Tool-less terminal blocks – Swapping channels takes seconds with one hand. Saved a food processing client 3 hours during a midnight sensor failure last month.
Real-time diagnostics – LED indicators actually show per-channel status instead of that vague "system fault" light some manufacturers use. You'll pinpoint issues faster.
| Parameter | Details |
|---|---|
| Brand/Model | ICS T1910 (Module) + 9100710010 (Base) |
| HS Code | 8538.90.80 (Electrical apparatus for switchboards) |
| Power Requirements | 24V DC ±15%, 500mA max (module+base) |
| I/O Configuration | 16-channel digital input (24V DC sinking), 100ms response time |
| Operating Temperature | -25°C to +60°C (derate above 50°C) |
| Installation | Standard 35mm DIN rail (EN 60715) |
Don't bother with this if you're building a lab prototype – it's overkill. But in real industrial hellscapes? Absolutely. I've specified these for:
- Conveyor sorting systems where dust clogs cheaper terminals
- Packaging lines needing fast channel response for reject mechanisms
- Water treatment plants where humidity would corrode standard connectors
You might notice they're particularly popular in facilities using Allen-Bradley ControlLogix systems since the form factor drops right in.
Let's be honest – most specs sheets lie about MTBF. But here's what matters to you as a buyer:
• True cost savings: That integrated base means no separate part number to track. One PO line instead of two cuts admin costs.
• Compatibility peace of mind: Works with standard 750-series backplanes without adapters (unlike some "universal" modules that need dongles).
• Warranty that doesn't suck: 365-day coverage including labor – not just the module. Most competitors make you pay for technician time.
In many cases, the real value shows up during unplanned downtime. When that sensor fails at 2AM, you'll appreciate the tool-less terminals.
Skip the fancy climate-controlled cabinet – this handles typical factory conditions. But here's what the manual won't tell you:
• Leave 10mm clearance on both sides for heat dissipation (I've seen units fail when crammed next to power supplies)
• Tighten terminal screws to 0.5 Nm – over-torquing cracks the housing
• Firmware updates? Only needed if you're integrating with new HMIs. Most users never touch it
• Clean vents quarterly with compressed air. That paper mill in Wisconsin learned the hard way when sawdust clogged their units.
Fully certified for CE, UL 61010-2, and RoHS compliance – no customs headaches. The conformal coating meets IPC-CC-830B for moisture resistance, which explains why they survive in those coastal wastewater plants.
When ordering: 50% upfront gets it pulled from stock (we keep 120 units ready), with full payment before FedEx/UPS/DHL shipment. In-stock items ship in 5 business days; custom-configured units take up to 4 weeks. And yes, that 365-day warranty covers field failures – not just bench tests.
