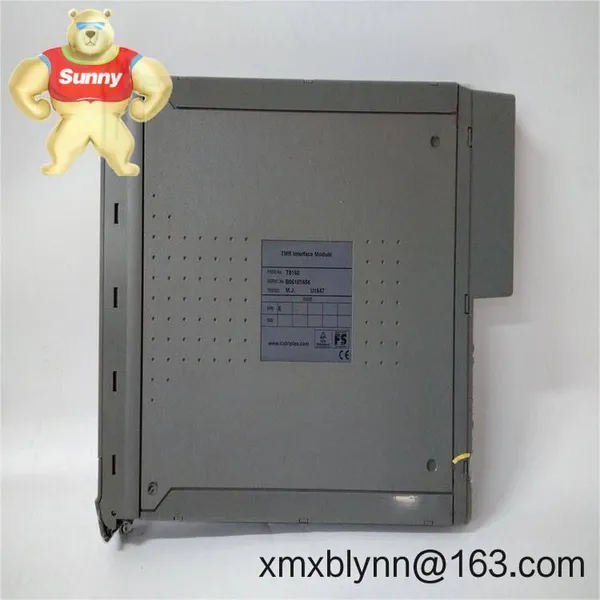

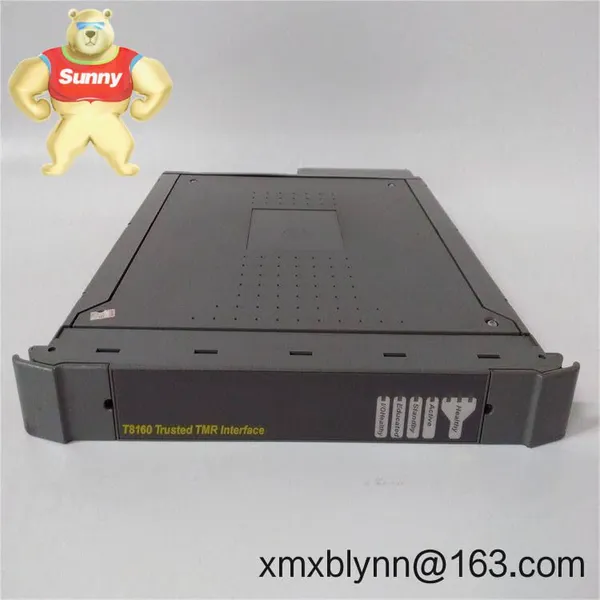

Help CenterICS Triplex T8160 Triple Redundancy Module: Your Last Line of Defense in Critical Control Systems
Related Products
-
ICS Triplex T8161B: Triple Redundant I/O for Critical Process ControlUS$ 2216.00MOQ: 1 Blade -
ICS Triplex T8191: Your Go-To Digital Input Module for Critical Safety ShutdownsUS$ 2216.00MOQ: 1 Blade
-
ICS TRIPLEX T8314 Remote Expander Chassis: Extending Safety System Reach in Harsh EnvironmentsUS$ 2216.00MOQ: 1 Blade
-
ICS Triplex T8193 Controller Module: Keeping Critical Processes Running When It Matters MostUS$ 2216.00MOQ: 1 Blade
-
ICS Triplex T9482 High-Precision Analog Output Module: Keep Critical Processes Running SmoothlyUS$ 2216.00MOQ: 1 Blade
Triple Modular Redundancy (TMR) architecture – Three independent processing channels continuously cross-check each other. One refinery client avoided a $2M+ outage last year when two channels failed during a lightning storm but the system kept running. You'll typically see MTBF figures around 500,000 hours in stable environments.
Hot-swappable I/O modules – Replace faulty components without shutting down the line. From my experience, this saves about 3-4 hours per maintenance event compared to traditional PLCs. Just remember to check the voting status indicator before pulling cards.
Native HART protocol support – Communicate directly with smart field devices without gateways. A chemical plant engineer recently told me this cut their calibration time by nearly 40% during a turnaround.
EMC hardening up to IEC 61000-4-5 – Handles nasty power surges that would cripple standard controllers. In high-vibration environments like offshore platforms, this often means fewer false trips during compressor startups.
| Specification | Details |
|---|---|
| Brand/Model | ICS Triplex T8160 TMR Controller |
| HS Code | 8537.10.9000 (Programmable controllers) |
| Power Requirements | 24 VDC ±15%, 3.5A max (per channel) – better spec out your UPS carefully since triple redundancy draws serious current |
| Dimensions & Weight | 142 x 125 x 58 mm, 0.85 kg – fits standard 19" cabinets but needs that extra 2U space for cooling |
| Operating Temperature | -20°C to +60°C – we've seen them run reliably at 65°C in Middle East refineries, but warranty gets fuzzy past 60°C |
| Signal I/O Types | 8-32 digital inputs (24VDC), 4-16 analog (4-20mA/0-10V) – watch the common-mode voltage on analog inputs in high-noise areas |
| Communication Interfaces | Dual Ethernet (Modbus TCP), RS-485 – the dual ports let you segment safety networks from business networks |
| Installation Method | Top-hat DIN rail (35mm) – leave at least 50mm clearance above for convection cooling |
Don't bother with this for your warehouse lighting controls. You'll typically see T8160s guarding turbine control systems in power plants, emergency shutdown valves on offshore rigs, or reactor trip systems in chemical facilities. One thing I appreciate is how often nuclear facilities use them for backup cooling controls – when a single failure could mean regulatory nightmares, that triple redundancy becomes non-negotiable. Just last month, a client in Alberta used it to replace aging relay logic on a sour gas compressor where H2S exposure made reliability critical.
Let's be real – this isn't a budget PLC. But when you calculate downtime costs at $50k/hour in a continuous process plant, that 99.999% availability rating suddenly looks like a bargain. Compatibility's another big win; it speaks Modbus natively so you're not stuck buying proprietary I/O modules. And unlike some competitors, our 365-day warranty covers firmware-related issues – which matters because I've seen field upgrades brick cheaper controllers during critical path operations.
Keeping It Alive: Installation & TLCMount it in a NEMA 12 cabinet away from VFDs – I've seen too many installations where harmonic noise corrupted the analog inputs. Leave that 50mm headroom for airflow; these run hot when all three channels are busy. Safety-wise, always verify voting status via the front LEDs before maintenance – hot-swapping's great until you accidentally pull the last good channel. For upkeep, schedule quarterly firmware checks (new versions fix those rare comms glitches) and annual calibration of analog inputs. One plant manager swears by blowing out the vents with dry nitrogen during turnarounds – prevents that conductive dust buildup we see in cement plants.
Certifications That Actually MatterCarries CE, UL 61010-1, ATEX Zone 2 (for certain configurations), and ISO 9001:2015 certification. RoHS compliant since 2018 models – though honestly, most industrial buyers care more about that SIL 3 rating from TÜV Rheinland. Warranty covers parts/labor for 365 days, but here's the kicker: unlike some vendors, we don't void coverage if you install third-party I/O modules (just verify compatibility first).
