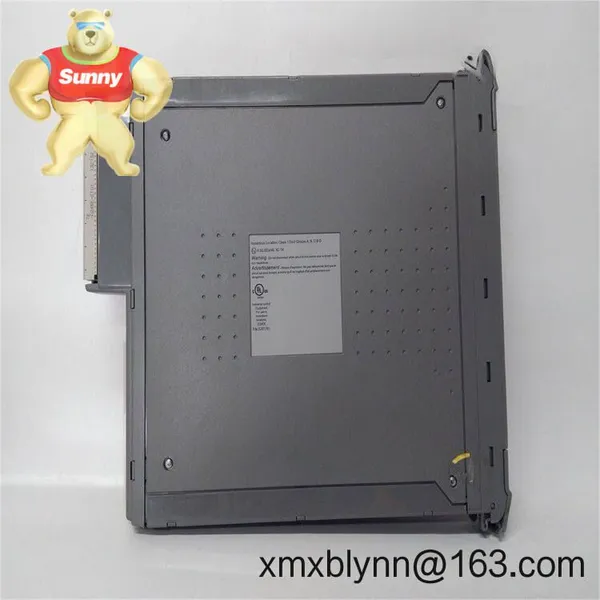

Help CenterICS Triplex T8161B: Triple Redundant I/O for Critical Process Control
Related Products
-
ICS Triplex T8191: Your Go-To Digital Input Module for Critical Safety ShutdownsUS$ 2216.00MOQ: 1 Blade -
ICS TRIPLEX T8314 Remote Expander Chassis: Extending Safety System Reach in Harsh EnvironmentsUS$ 2216.00MOQ: 1 Blade
-
ICS Triplex T8193 Controller Module: Keeping Critical Processes Running When It Matters MostUS$ 2216.00MOQ: 1 Blade
-
ICS Triplex T9482 High-Precision Analog Output Module: Keep Critical Processes Running SmoothlyUS$ 2216.00MOQ: 1 Blade
-
ICS Triplex T8432 Analog Input Module: Your Reliable Drop-In Replacement for Critical Process ControlUS$ 3216.00MOQ: 1 Blade
→Hot-swap recovery – Replace faulty modules in under 90 seconds without shutting down the entire rack. In most cases, operators barely notice the switch.
→Field-proven diagnostics – Real-time health monitoring catches drift issues before they cause trips. A refinery client once told me it flagged a failing pressure sensor three days before it would've triggered an emergency shutdown.
→SIL 3 certified – Meets IEC 61508 requirements for safety-critical loops. You might notice tighter integration with Triplex Triconex systems than with generic PLCs.
→16-channel flexibility – Mix analog inputs (4-20mA) and digital outputs on the same module. Typically simplifies cabinet layouts in pipeline monitoring stations.
| Parameter | Specification |
|---|---|
| Brand/Model | ICS Triplex T8161B |
| HS Code | 8537.10.90 (Programmable controllers) |
| Power Requirements | 24V DC ±15%, 1.2A max per module |
| Dimensions & Weight | 120mm W × 180mm H × 150mm D / 1.8kg |
| Operating Temperature | -20°C to +60°C (derate above 50°C) |
| Signal I/O Types | 8x 4-20mA inputs, 8x dry contact outputs |
| Communication | Triplex Triple Channel Bus (TCB), Modbus TCP |
| Installation | DIN rail (EN 60715), 3-module minimum spacing |
You'll typically find these in places where human safety depends on continuous operation – like nuclear plant coolant monitoring or offshore platform flare stack controls. A petrochemical client recently shared how it prevented a $2M/hour ethylene plant shutdown when lightning took out two redundant channels during a storm. In pipeline applications, it's become the go-to for custody transfer metering where even 15 minutes of downtime means contractual penalties.
Let's be real – the upfront cost stings a bit compared to standard I/O. But when you calculate the cost of unplanned downtime (I've seen figures up to $500K/hour in pharma), the redundancy pays for itself fast. Compatibility with existing Triplex systems means no costly re-engineering, and the 365-day warranty covers those nerve-wracking commissioning periods. From my experience, the real value shows up during audits when safety inspectors see the SIL 3 documentation.
Keeping It Alive (Without Headaches)Mount it in standard 19" cabinets with at least 100mm clearance above/below for airflow – I've seen too many failures from cramming these into tight spaces near VFDs. Always use shielded twisted-pair wiring for analog signals; that refinery client's early failures? Caused by running cables parallel to 480V lines. Do quarterly visual checks for terminal corrosion (common in coastal plants), and schedule firmware updates during planned outages. One pro tip: keep spare modules in climate-controlled storage – condensation during hot swaps causes more field issues than actual component failures.
No-Spin Certifications & GuaranteesCE, UL 61010-1, IEC 61508 SIL 3 certified – no "self-declared" nonsense here. RoHS 3 compliant with full material declarations available. Warranty's straightforward: 365 days from commissioning date covering parts/labor. In-stock units ship within 1 week (FedEx/UPS/DHL), custom-configured within 4 weeks max. Payment's 50% upfront, balance before shipment – because frankly, nobody wants financing drama when their control system's down.
