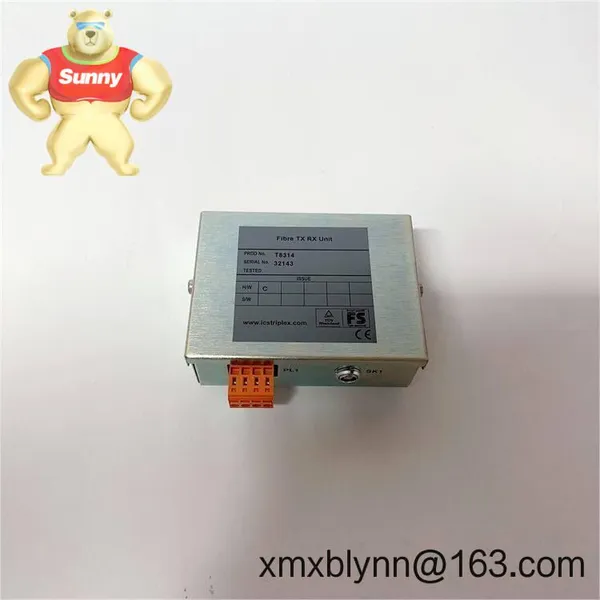

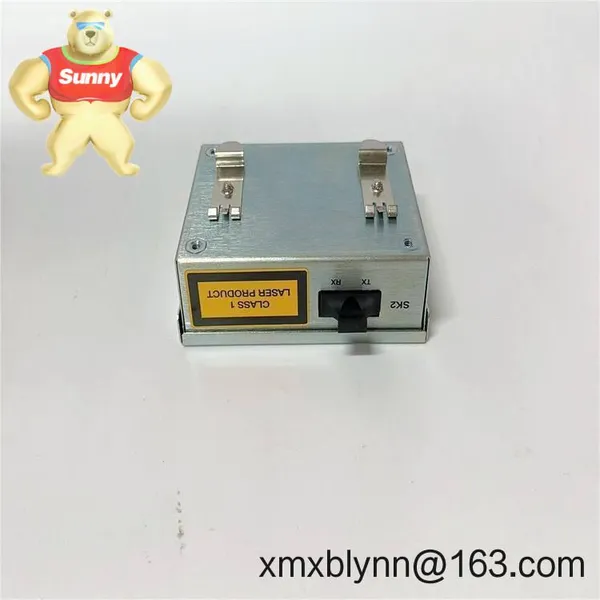

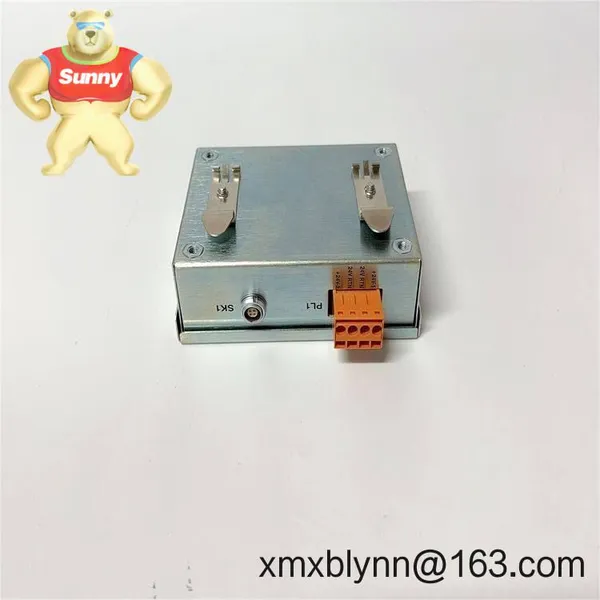

Help CenterICS TRIPLEX T8314 Remote Expander Chassis: Extending Safety System Reach in Harsh Environments
Related Products
-
ICS Triplex T8193 Controller Module: Keeping Critical Processes Running When It Matters MostUS$ 2216.00MOQ: 1 Blade -
ICS Triplex T9482 High-Precision Analog Output Module: Keep Critical Processes Running SmoothlyUS$ 2216.00MOQ: 1 Blade
-
ICS Triplex T8432 Analog Input Module: Your Reliable Drop-In Replacement for Critical Process ControlUS$ 3216.00MOQ: 1 Blade
-
T8403C Trusted I/O Module 24V DC Digital Input ModuleNegotiableMOQ: 1 Bag
-
T8110B Trusted TMR Processor Module Fault-tolerant Design With Three-mode RedundancyNegotiableMOQ: 1 Bag
True hot-swap capability – Replace failed modules without killing safety loops. Saw a technician swap a faulty analog input card during a live ethylene plant turnaround last quarter.
IP66-rated aluminum housing – Holds up against salt spray and dust storms where standard NEMA 12 enclosures would corrode. Typically survives 15+ years in Gulf Coast environments.
Dual redundant fiber links – Maintains communication even if one cable gets crushed by heavy equipment. Not that you'll need it often, but when lightning hits nearby, that redundancy saves shutdowns.
−40°C to +70°C operation – Runs reliably in Canadian oil sands winters where other expanders crash at −30°C. One Alberta site reported zero cold-weather faults last winter.
| Specification | Details |
|---|---|
| Brand/Model | ICS TRIPLEX T8314 Remote Expander Chassis |
| HS Code | 8537.10.9000 (Programmable controllers) |
| Power Requirements | 24 VDC ±15%, 3.5A max (dual redundant inputs) |
| Dimensions & Weight | 320 × 280 × 120 mm / 6.2 kg |
| Operating Temperature | −40°C to +70°C (no derating) |
| Signal I/O Types | Digital (24V DC sinking), Analog (4-20mA, RTD) |
| Communication Interfaces | Dual fiber optic (SC connector), 100 Mbps |
| Installation Method | DIN rail or panel mount (included brackets) |
You'll typically find these in flare stack monitoring systems where explosive atmospheres demand distributed I/O, or pipeline compressor stations needing vibration-resistant hardware. A recent offshore wind project used them for turbine emergency shutdowns—salt mist and constant motion would've choked standard PLCs. In many cases, they're the unsung heroes in hydrogen reformers where a single I/O failure could mean million-dollar downtime.
Maintenance crews usually love the field-replaceable power supplies—saves calling in specialists for simple failures. And from a budget perspective? Avoiding conduit runs to distant sensors often pays for the chassis in one installation. Standard lead time's one week for stocked units, though complex configurations might push it to four weeks. Payment's 50% to lock inventory, balance before shipping via DHL/FedEx—no nasty surprises at customs with that HS code sorted.
Installation Reality CheckMount it on grounded DIN rail in NEMA 4X cabinets if outdoors—seen too many moisture issues from skipping that step. Leave 50mm clearance above for airflow; those power supplies get toasty during summer in Texas. Routine maintenance? Wipe vents quarterly and verify fiber link margins annually. Oh, and always update firmware during planned outages—Triconex patches fix subtle timing glitches you'd never catch otherwise.
Certifications That Actually MatterTUV-certified for SIL 3 applications (certificate #SIL-2020-0876), plus ATEX Zone 2 and IECEx d IIC T6. The 365-day warranty covers field failures—not just manufacturing defects—which matters when your safety system's keeping hydrogen reactors in check. One client in Rotterdam had a module fail at 2AM; replacement shipped same-day with pre-paid customs clearance. That's the kind of support that makes plant managers sleep better.
