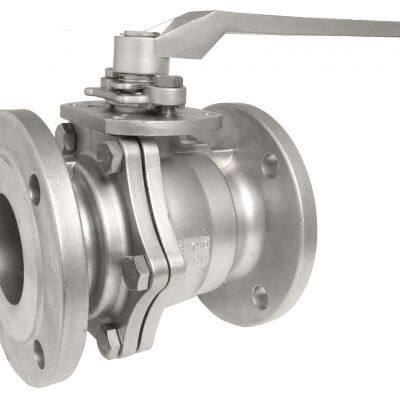

Help CenterRobust ANSI Stainless Steel Ball Valve in DN15-DN400 Range, Designed for Chemical Processing Industries
Related Products
-
Corrosion-resistant ANSI Stainless Steel Ball Valve Featuring Multiple Seat Options Like NBR and EPDM for Versatile UseNegotiableMOQ: 1 Piece -
API 608 Compliant ANSI Stainless Steel Ball Valve Featuring ASME B16.5 Flange Standard for Reliable ConnectionsNegotiableMOQ: 1 Piece
-
Compact ANSI Stainless Steel Ball Valve for HVAC and Industrial Systems, Offering Easy Installation and MaintenanceNegotiableMOQ: 1 Piece
-
ANSI Stainless Steel Ball Valve With Carbon Steel Stem and Cast Iron Body for High-pressure 300LB Applications in PetrochemicalNegotiableMOQ: 1 Piece
-
ANSI Thread Ball Valve for Water Supply Systems in Commercial BuildingsNegotiableMOQ: 1 Piece
Chengxin Valve Co., Ltd. introduces its ANSI-compliant stainless steel ball valves, engineered specifically for rigorous applications in chemical processing industries. With a comprehensive size range from DN15 to DN400, these valves deliver exceptional corrosion resistance and long-term reliability in aggressive media handling. Manufactured since 1993 in our 50,000-100,000 sqm facility, each valve integrates decades of metallurgical expertise to ensure zero-leak performance under extreme pressures and temperatures.
Core Technical Advantages:
Superior Material Integrity – Constructed from 304/316 stainless steel or CF8M alloy for chloride resistance
Precision Sealing – PTFE or RPTFE seats ensure bubble-tight shutoff exceeding ANSI Class VI standards
Reduced Maintenance – Self-lubricating stem design eliminates routine greasing requirements
Flow Optimization – Full-bore design minimizes pressure drop across all DN sizes
Technical Specifications Table
| Parameter | Standard Range | Custom Options |
|---|---|---|
| Temperature Range | -20°C to 200°C | -196°C to 450°C (special orders) |
| Face-to-Face Dimensions | ASME B16.10 compliant | API 6D pattern available |
| Actuation Compatibility | Manual lever/gearbox | Pneumatic/electric actuators |
The three-piece body construction allows easy maintenance without pipeline disassembly, significantly reducing downtime in continuous chemical processes. All valves undergo:
Hydrostatic testing at 1.5x rated pressure
Helium leak detection for critical service validation
Surface passivation per ASTM A967
For acid transport, chlorine handling, or solvent transfer systems, our valves provide measurable operational benefits:
40% longer service life versus carbon steel alternatives
Zero fugitive emissions compliance for EPA and OSHA regulations
Interchangeability with existing ANSI pipeline infrastructures
With ISO 9001, 14000, and OHSAS 18001 certifications, Chengxin guarantees consistent quality across all production batches. Our global logistics network enables shipment from Tianjin, Qingdao, Shanghai, or Ningbo ports to Eastern Europe, South America, Africa, and Mid East markets within 30 days.
Why Choose Chengxin Valves?
Backed by 30+ years of manufacturing excellence and a 101-200 person engineering team, we offer technical support from material selection to installation. The US$1-1.5 million annual export volume demonstrates our capability to fulfill bulk orders while maintaining rigorous quality control. Request a pressure rating chart or material test reports to verify performance specifications for your specific chemical media.
Frequently Asked Questions
Q: Are these valves suitable for sulfuric acid service?
A: Yes, 316SS construction with PTFE seats handles concentrations up to 98% at moderate temperatures. For hot concentrated acid, specify Hastelloy trim.
Q: What is the lead time for DN300 valves?
A: Standard DN300 valves ship in 4 weeks. Expedited 2-week production is available for urgent requirements.
Q: Do you provide actuated versions?
A: Yes, pneumatic and electric actuators compatible with Namur standards can be factory-mounted. Submit torque requirements for sizing.
Q: Can I get certificates for traceable materials?
A: Mill test reports (MTRs) with heat numbers are provided upon request for all critical applications.
Q: What maintenance is required?
A: Our stem sealing system typically requires no maintenance for 5+ years in chemical services. Inspection intervals depend on media abrasiveness.
Q: Are your valves compatible with existing flanges?
A: Yes, all valves conform to ASME B16.5 flange dimensions. Confirm facing type (RF/FF) when ordering.
Optimize your chemical processing systems with Chengxin's certified ball valves. Contact our overseas offices for regional stock availability or request a custom quote for project-specific configurations. Leverage our chemical industry expertise to enhance safety and efficiency in your critical flow applications.
