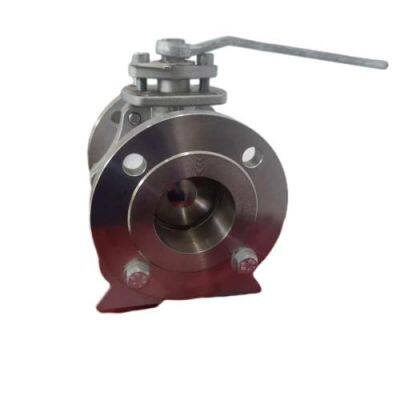

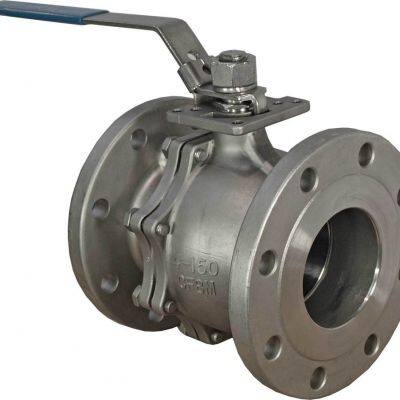

Help CenterANSI Stainless Steel Ball Valve With Carbon Steel Stem and Cast Iron Body for High-pressure 300LB Applications in Petrochemical
Related Products
-
ANSI Thread Ball Valve for Water Supply Systems in Commercial BuildingsNegotiableMOQ: 1 Piece -
Industrial Grade ANSI Thread Ball Valve Compatible With Oil and Gas PipelinesNegotiableMOQ: 1 Piece
-
3/4" Stainless Steel ANSI Thread Ball Valve With NPT Threads for Chemical ProcessingNegotiableMOQ: 1 Piece
-
1/2" Brass ANSI Thread Ball Valve With High Pressure Rating for Industrial ApplicationsNegotiableMOQ: 1 Piece
-
Low Torque ANSI Thread Ball Valve With Teflon Seals for Easy Manual OperationNegotiableMOQ: 1 Piece

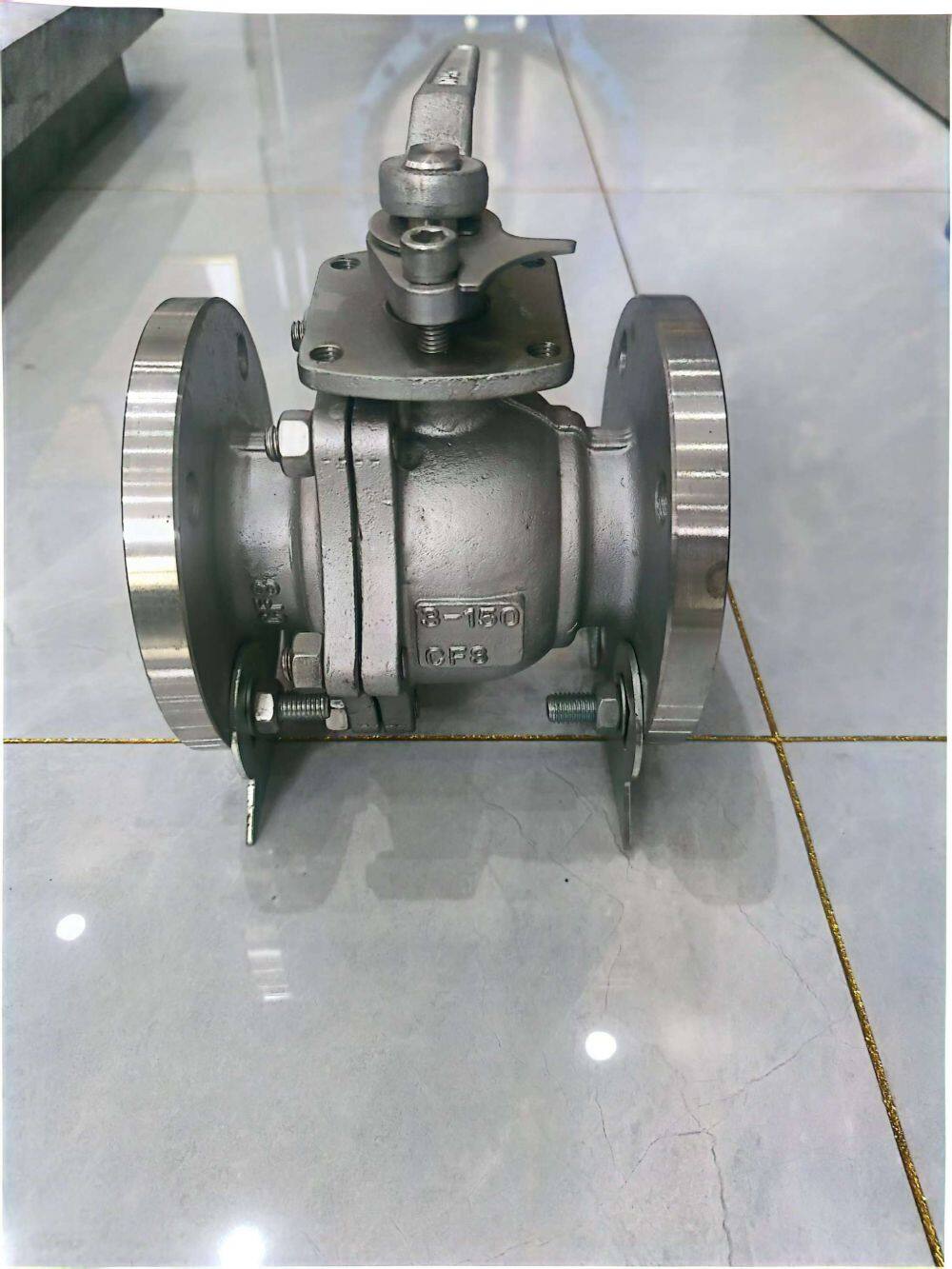

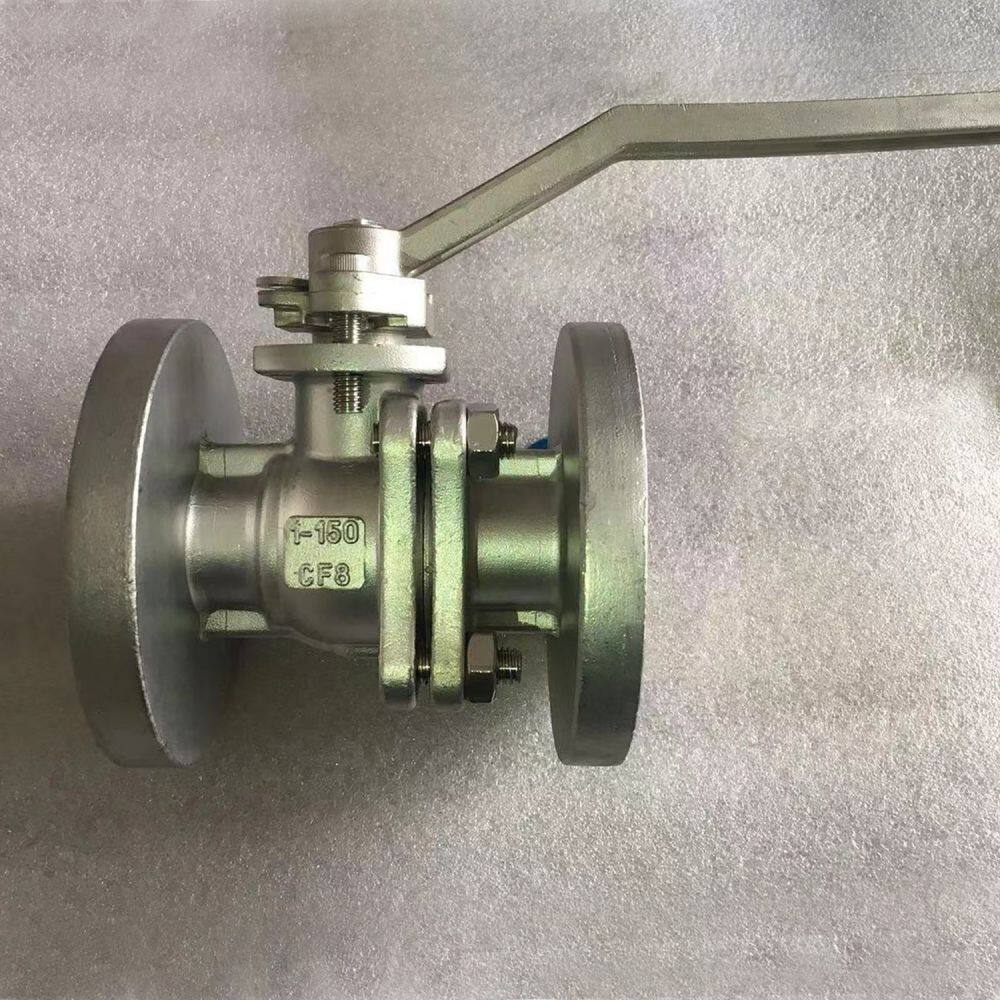

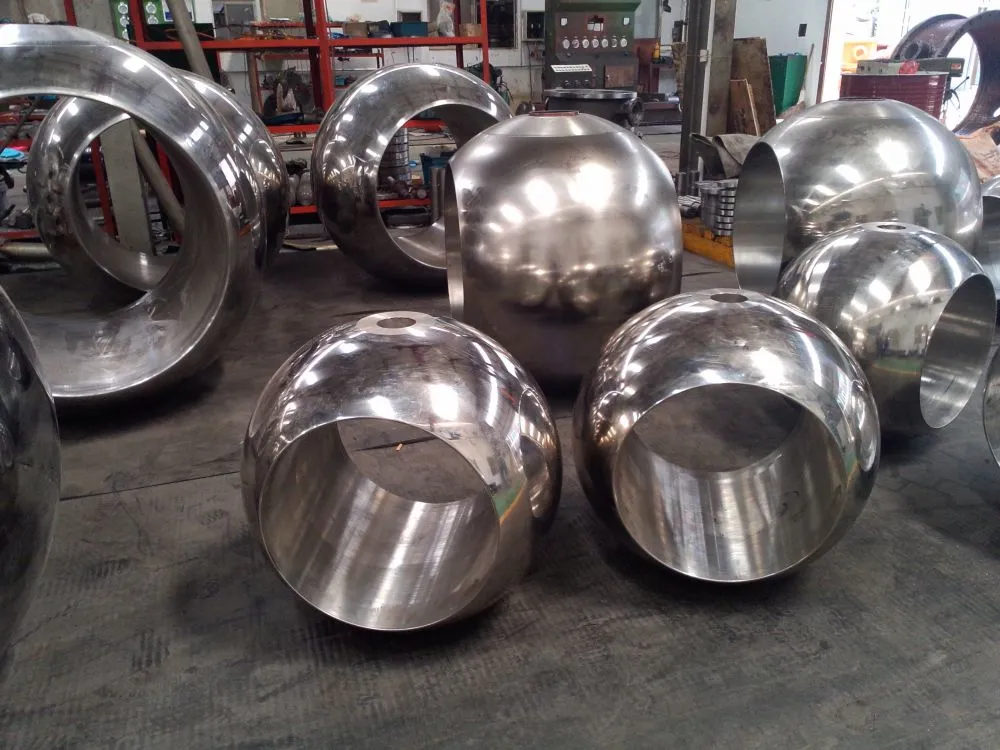

Engineered for demanding petrochemical applications, Chengxin Valve's ANSI Stainless Steel Ball Valve delivers exceptional reliability in high-pressure 300LB systems. Combining a corrosion-resistant stainless steel ball with a durable cast iron body and carbon steel stem, this valve ensures optimal performance where failure is not an option.
With ISO-certified manufacturing processes and OHSAS18001 compliance, we guarantee valves meeting stringent safety standards while providing bubble-tight shutoff in critical hydrocarbon processing environments. Our three-decade expertise in industrial valve production translates to extended service life and reduced maintenance costs for your operations.
Core Technical Advantages:
- Pressure Integrity: Rigorously tested to withstand 300LB ANSI pressure ratings with 150% safety margin
- Corrosion Defense System: Dual-seal design with stainless steel ball and optional PTFE seats
- Thermal Resilience: Operates reliably between -20°C to 200°C (-4°F to 392°F)
- Fire-Safe Configuration: Optional anti-static and fire-safe features available
- Low-Torque Operation: Precision-machined components reduce actuation force by 30%
Detailed Specifications:
| Parameter | Specification | Testing Standard |
|---|---|---|
| Hydrostatic Shell Test | 450 PSI | API 598 |
| Seat Leakage | Zero bubble-tight | ISO 5208 Rate A |
| End Connection | RF Flange (ANSI B16.5) | ASME B16.10 |
| Cycle Life | 10,000+ cycles | MSS SP-72 |
| Stem Seal | Double O-ring + graphite packing | ISO 15848-1 |
Installation flexibility is enhanced through multiple operator configurations. Standard lever handles provide manual control for accessible locations, while our optional gear operators reduce torque requirements by up to 85% for large-diameter valves or hard-to-reach installations. For automated process control, electric/pneumatic actuators can be factory-mounted with ISO 5211 compliant interfaces.
Material compatibility extends beyond standard hydrocarbons to include:
- Steam service up to 150 PSIG
- Compressed air/gas systems
- Mild chemical processing fluids
- Water treatment applications
Note: For highly corrosive media or extreme temperatures, material upgrades including full stainless steel construction or specialized seat materials are available. Consult our engineering team for application-specific recommendations.
Operational Benefits for Petrochemical Plants:
- Eliminate unplanned downtime with 24-month mean time between maintenance
- Reduce fugitive emissions compliance risks with dual-sealing stem technology
- Cut installation costs through standardized ANSI flanges
- Minimize inventory requirements with interchangeable components
With established export channels through major Chinese ports including Tianjin, Qingdao, and Shanghai, we deliver to global destinations with 45-day average lead times for standard configurations. Our quality assurance process includes 100% pressure testing and material traceability documentation with each shipment.
Why choose Chengxin Valve?

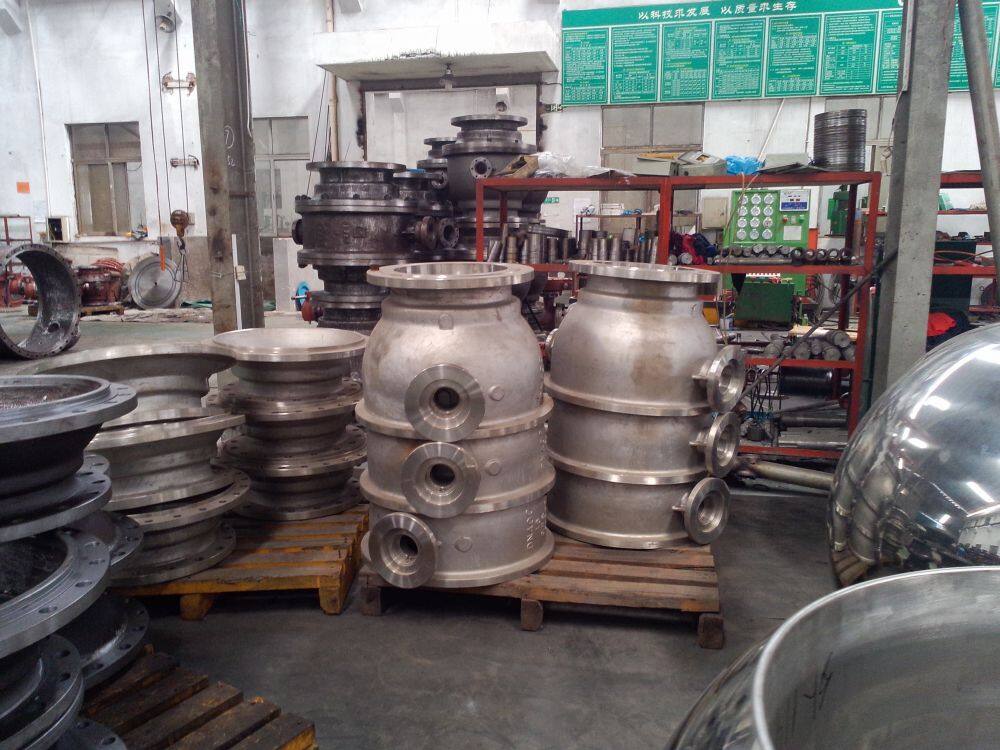

Since 1993, we've supplied industrial valves to over 28 countries with dedicated technical support teams in Eastern Europe, Africa, and South America. Our 80,000m² manufacturing facility employs advanced CNC machining centers and automated assembly lines, ensuring dimensional accuracy within 0.01mm tolerance levels.
Request a pressure loss calculation report or valve sizing consultation today. Contact our export department for regional stock availability, commercial quotations, or to schedule a virtual factory tour. Experience the Chengxin reliability difference engineered into every valve.
Frequently Asked Questions
Q1: What stem sealing system prevents leaks in high-pressure service?
Our triple-seal design combines primary O-rings, secondary graphite packing, and stem thrust washers to prevent leakage even under pressure cycling conditions.
Q2: Are these valves suitable for sour gas service?
Standard models meet NACE MR0175 requirements when ordered with optional sulfide-stress-resistant components.
Q3: What documentation accompanies shipments?
Each valve includes material test certificates, hydrotest reports, installation manual, and compliance declarations for ISO certifications.
Q4: Can I get valves with emergency shut-off features?
Yes, we offer spring-return actuators for fail-safe operation and lockable lever options for safety isolation.
Q5: What is the typical delivery time to Middle East destinations?
Standard configurations ship within 30 days via Shanghai or Ningbo ports with 15-day average transit time.
Q6: Do you provide on-site installation support?
Global technical assistance is available through our overseas offices with optional commissioning supervision services.
Q7: How does the carbon steel stem perform in corrosive environments?
The stem receives multiple corrosion-resistant treatments including nickel plating and epoxy coating based on application requirements.
Q8: Are repair kits available for field maintenance?
Comprehensive seal replacement kits with installation tools are stocked for rapid shipment worldwide.
