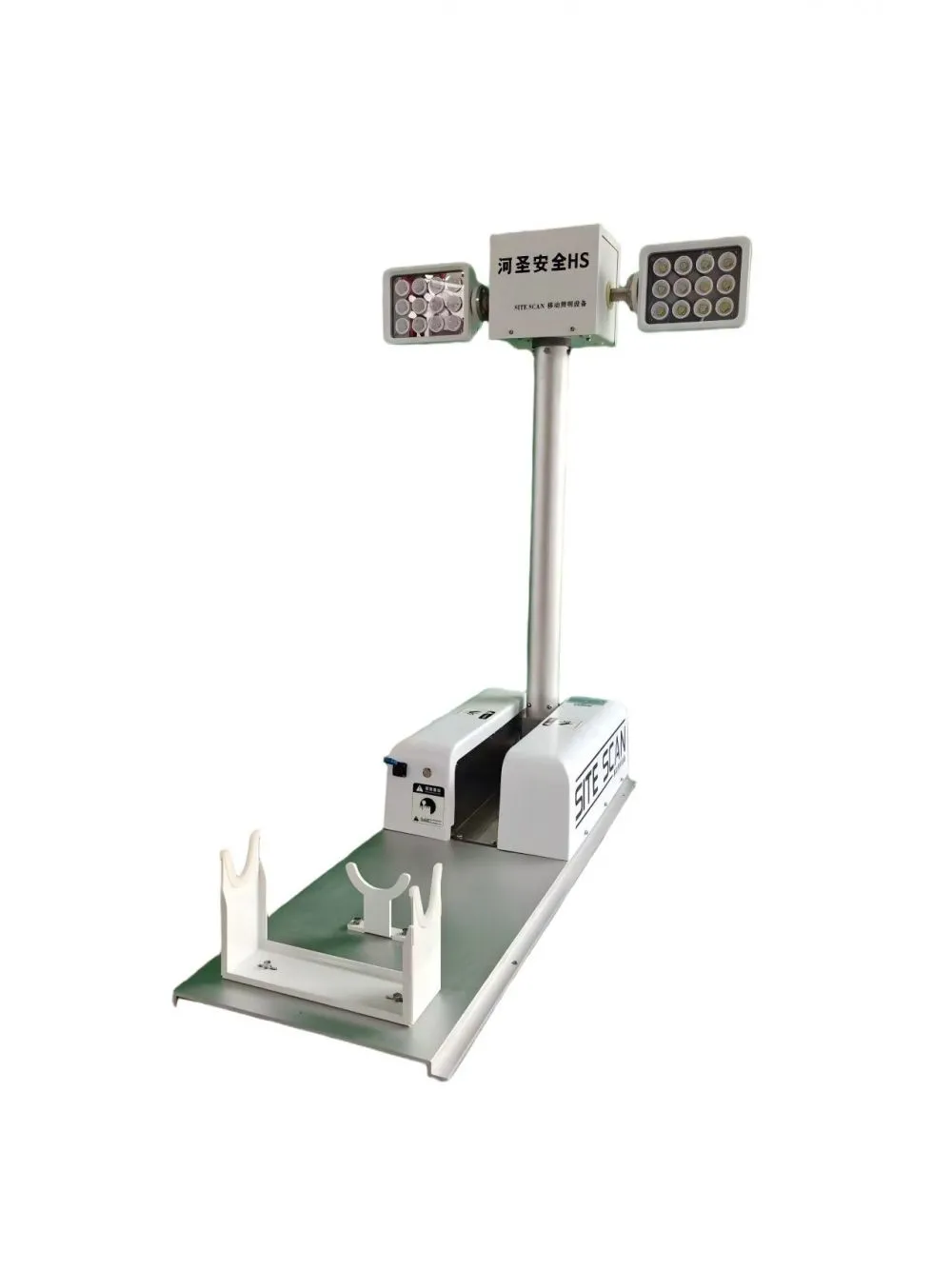

Vehicle-mounted lighting equipment WD-122120 type
Product Description
The vehicle-mounted mobile lighting equipment is a series of lighting devices with a height of 1.2 meters when the lifting air rod is raised. It is suitable for medium-sized special vehicles such as communication and command vehicles, lighting vehicles, rescue vehicles, fire vehicles, etc.
It is lifted to a height of 1.2 meters by three pneumatic lifting rods to expand the illumination range.
The vehicle-mounted mobile lighting equipment is equipped with lifting, lowering, raising and lowering functions. The equipment is lifted from the initial horizontal position to 90 degrees, and then the lifting mast is raised to a height of 1.2 meters through the air pump, and then the pan-tilt is rotated
The positioning lighting is achieved through a full rotation of 380 degrees horizontally and 330 degrees vertically.
According to customer requirements, the product can be equipped with a camera installation bracket above the rotating pan-tilt and between the two end lamp components, with reserved video cables and control lines for the camera to meet the camera function. The camera rotates horizontally
The positioning Angle is 360 degrees, and the vertical positioning Angle is 360 degrees. The reset position can be selected in two states: forward or downward of the lamp mirror after the device is toppled (set before leaving the factory).
The system working voltage of the vehicle-mounted mobile lighting equipment, which is targeted at medium and large-sized vehicles, is DC12V.
The lighting lamp head adopts LED solid-state lighting, which features high luminous efficiency, long lifespan, low power consumption and shock resistance.
The vehicle-mounted mobile lighting equipment has a wind resistance capacity of 50Km/h.
Main technical parameters
System operating voltage: DC12V
The working voltage of the lamp: DC12V-24V/AC220V is optional
Lifting height: 1.2 meters
Lamp power: 150W*2
Working current of the lamp: ≤5A
Rotating working current: ≤2 A (max)
Straightener working current: ≤10 A
Horizontal rotation Angle: 360°
Vertical rotation Angle: 360°
Horizontal and vertical rotation speed: 4r/min
Luminous flux: 30,000 lm
The operating environment temperature of the equipment: -40° C to 55° C
Lamp protection grade: IP66
The switch method of the lamps: Each lamp is controlled separately
Luminaire light form: Focused light/floodlight
Type of light source for lamps: LED
Control mode: Wired and wireless control
Remote control distance: ≥30 meters, powered by 1 9V dry battery
Protocol control mode: RS485 control interface (built-in)
Agreement Address: 01
Baud rate: 9600
Packing list
One piece of equipment
2) One wired controller
3) One wireless remote control
4) One wired controller installation box
5) One wireless remote control installation box
6) One 9V dry battery
7) One user manual
