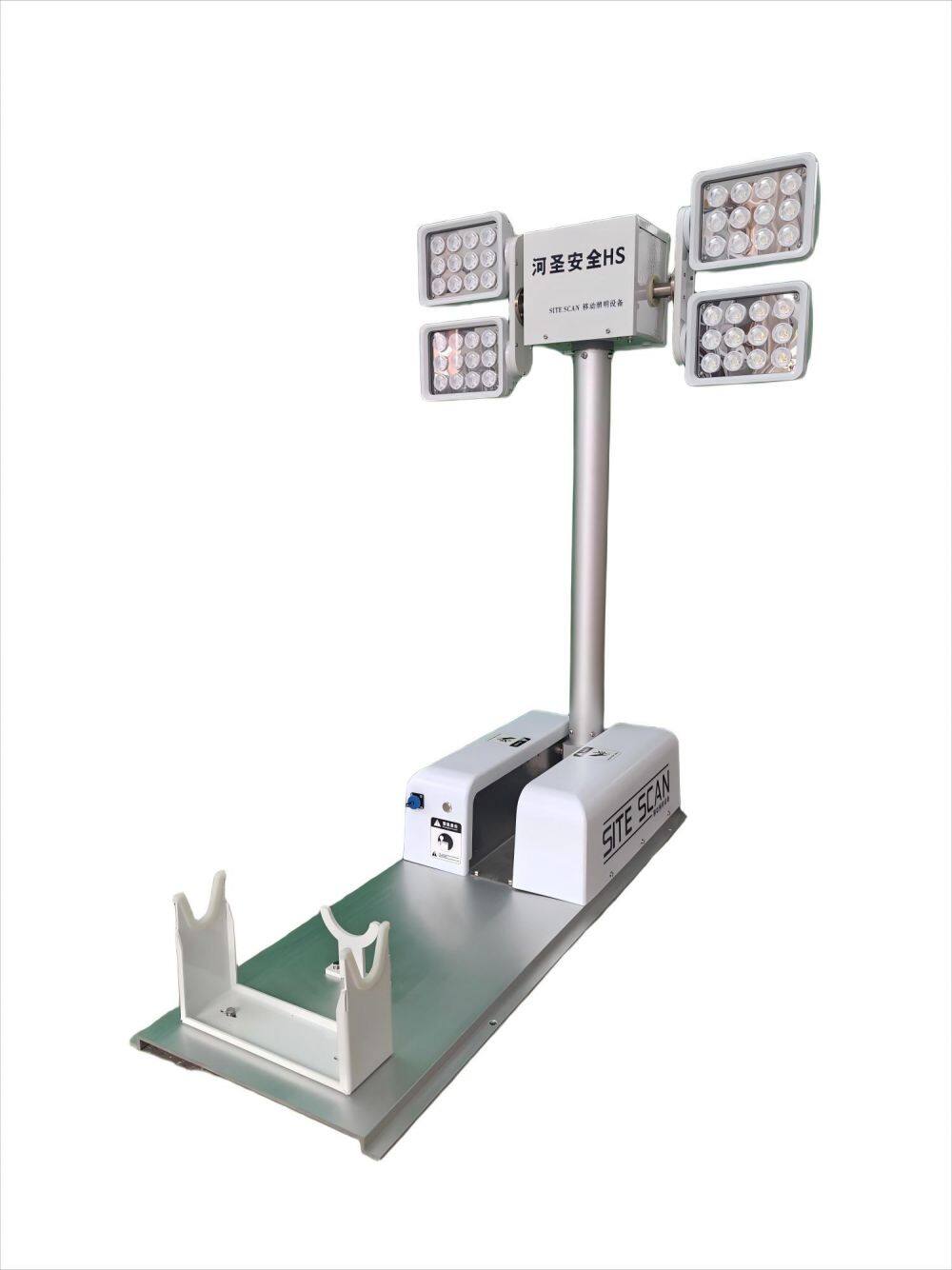

Vehicle-mounted mobile lighting group WD-124120

Product Description

The vehicle-mounted mobile lighting equipment is a series of lighting devices with a height of 1.2 meters when the lifting air rod is raised. It is suitable for medium-sized special vehicles such as communication and command vehicles, lighting vehicles, rescue vehicles, fire vehicles, etc.

It is lifted to a height of 1.2 meters by a lifting pole, expanding the illumination range.

The vehicle-mounted mobile lighting equipment has the functions of lifting, lowering, raising and lowering. The equipment is lifted from the initial horizontal position to 90 degrees, and then the lifting mast is raised to a height of 1.2 meters through the air pump. The positioning lighting is completed by the all-round rotation of the rotating pan-tilt at 380 degrees horizontally and 330 degrees vertically.

According to customer requirements, the product can be equipped with a camera installation bracket above the rotating pan-tilt and between the two end lamp components, with reserved video cables and control lines for the camera to meet the camera function. The horizontal rotation positioning Angle of the camera is 360 degrees, and the vertical positioning Angle is 360 degrees. The reset position can be selected in two states: forward or downward of the lamp mirror after the device is toppled (set before leaving the factory).

The system working voltage of the vehicle-mounted mobile lighting equipment, which is targeted at medium and large-sized vehicles, is DC12V.

The lighting lamp head adopts LED solid-state lighting, which features high luminous efficiency, long lifespan, low power consumption and shock resistance.

The vehicle-mounted mobile lighting equipment has a wind resistance capacity of 50Km/h.

Main technical parameters

System operating voltage: DC12V

The working voltage of the lamp: DC12V-24V/AC220V is optional

Lifting height: 1.2 meters

Lamp power: 150W*2

Working current of the lamp: ≤5A

Rotating working current: ≤2 A (max)

Straightener working current: ≤10 A

Horizontal rotation Angle: 360°

Vertical rotation Angle: 360°

Horizontal and vertical rotation speed: 4r/min

Luminous flux: 30,000 lm

The operating environment temperature of the equipment: -40° C to 55° C

Lamp protection grade: IP66

The switch method of the lamps: Each lamp is controlled separately

Luminaire light form: Focused light/floodlight

Type of light source for lamps: LED

Control mode: Wired and wireless control

Remote control distance: ≥30 meters, powered by 1 9V dry battery

Protocol control mode: RS485 control interface (built-in)

Agreement Address: 01

Baud rate: 9600

Packing list

One piece of equipment

2) One wired controller

3) One wireless remote control

4) One wired controller installation box

5) One wireless remote control installation box

6) One 9V dry battery

7) One user manual
