Lift lighting camera System WD-182150D/HK
Technical indicators
Product Brand: Hesheng Safety
Product Model: WD-182150D/HK
System operating voltage: DC12V
Working voltage of the lamp: DC12-24V
Light source type: Illuminance 8 lx from the center with a 100-meter illumination radius
Horizontal and vertical rotation speed: 4r/min
Lamp power: 2X150(W)
Luminous flux of the lamp tube: 2X12000(lm
Light source brand: Cree
Horizontal rotation radius of the lamp: 400(mm)
Horizontal rotation Angle: 360°
Vertical rotation Angle: Conventional 360°/ After installing the camera, the vertical rotation Angle is within 180 degrees
Product weight: 40kg
Control system: Wireless remote control + wired controller
Configuration Function 1
Hot start function
Configuration Function 2
One-click reset function makes operation simpler
Product Overview

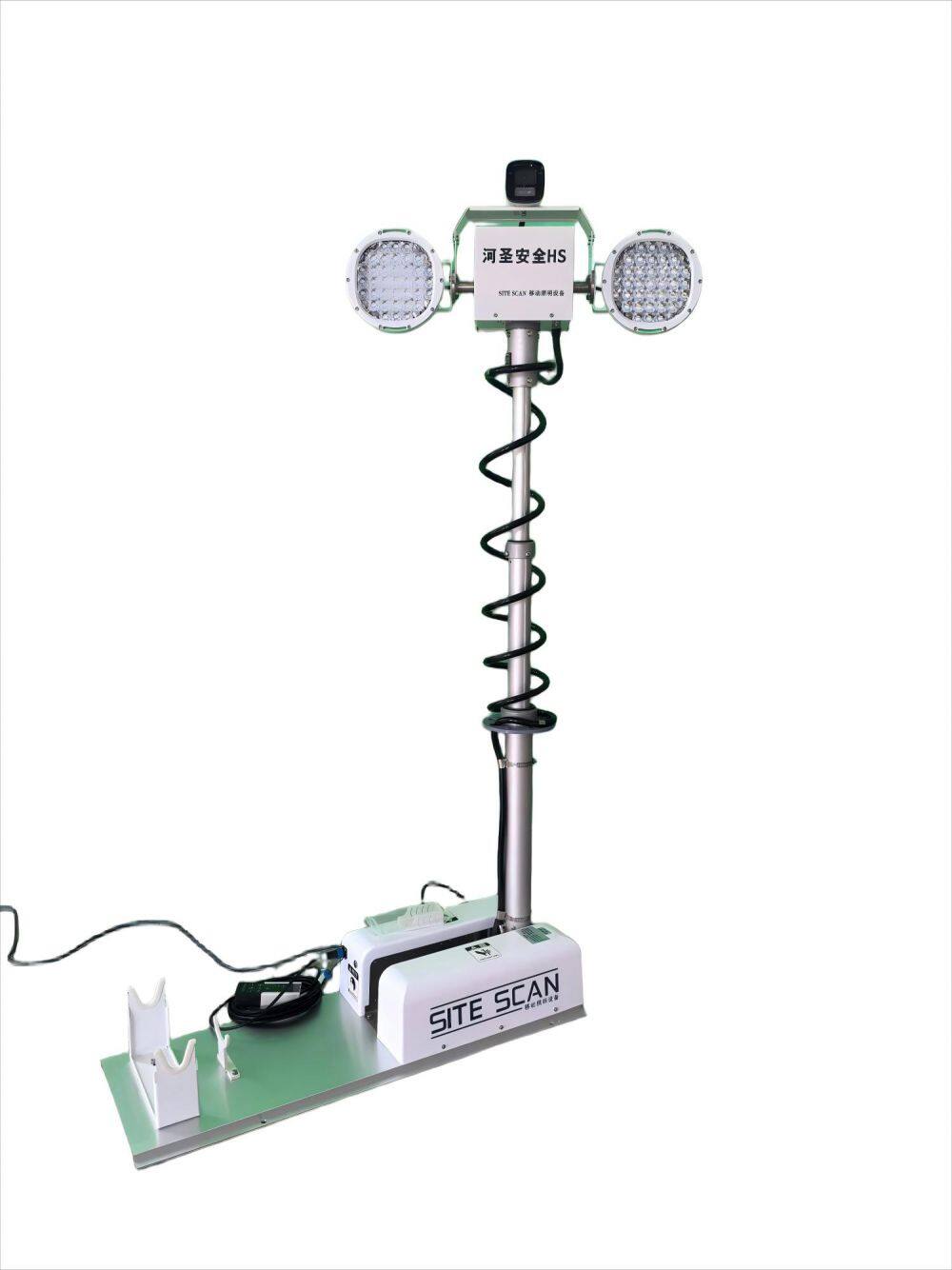

The WD-182150D/HK type lifting lighting camera system is a lighting system with a total height of 1.8 meters when lifted. The top is equipped with a Hikvision fixed-focus camera. It is suitable for small cars such as sedans and pickup trucks.
It fixes the lamp components on the lamp post through a rotating pan-tilt and has the functions of lifting, lowering, raising and lowering. The equipment can be lifted from the initial horizontal position to 90 degrees and then start working. It can be raised 360 degrees vertically and 360 degrees horizontally through the rotating pan-tilt
The lighting fixtures can be adjusted to rotate in all directions to achieve emergency lighting and all-round search and positioning functions. It is suitable for night lighting, on-site investigation, and emergency lighting.
The inverted vehicle-mounted lighting uses high-brightness leds as the light source, providing two 150W lamps with a focused illumination distance of 100 meters and a light emission Angle of 30 degrees. The product has high luminous efficiency, a color temperature close to that of sunlight and a long service life.
The inverted vehicle-mounted lighting adopts metal lamp head components to achieve 360-degree lighting. It can provide close-range large-area lighting or long-distance concentrated lighting according to the on-site usage conditions.
The equipment has a wind resistance capacity of 80Km/h after reset and can be equipped with cameras, antennas and other devices.
