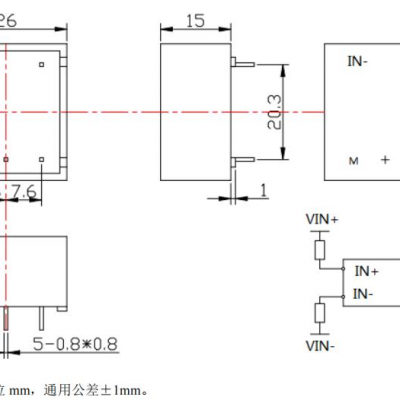

Help CenterFSV025A-Freesor-voltage Sensor
US$ 7.2
≥672 Units
Key Specifications
Get Latest Price
Certification:
CE
Customized:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
14 days
Related Products
Certification
CE
Customized
Customized
Type |
FSV025A |
|||
IPN |
Primarynominalinputcurrent |
10 |
mA |
|
Ip |
Measuringrangeofprimarycurrent |
0~±15 |
mA |
|
IsN |
Secondarynominaloutputcurrent |
25 |
mA |
|
KN |
Conversionratio |
2500:1000 |
||
RM |
Measuringresistance(VC=±12V) |
Ip=±10mA：30～350 |
Ip=±15mA：30～235 |
Ω |
(Vc=±15V) |
Ip=±10mA：100～460 |
Ip=±15mA：100～315 |
Ω |
|
Ve |
Supplyvoltage |
±12~±15(±5%) |
V |
|
Ic |
Currentconsumption |
Vc=±15V10+Is |
mA |
|
Va |
Insulationvoltage |
Between primary and secondary circuits: 2.5kV rms/50Hz/1 minute |
||
8L |
Linearity |
%FS |
||
X |
Accuracy |
TA=25℃Vc=±15V±0.5 |
%FS |
|
Io |
Zerooffsetcurrent |
TA=25℃ |
mA |
|
IoT |
ThermaldriftofI0 |
Ip=0TA=-25～+85℃ |
mA |
|
Tr |
Responsetime |
90%ofVPN≤40 |
μs |
|
TA |
Ambientoperatingtemperature |
-25～+85 |
℃ |
|
Ts |
Ambientstoragetemperature |
-40～+100 |
℃ |
|
