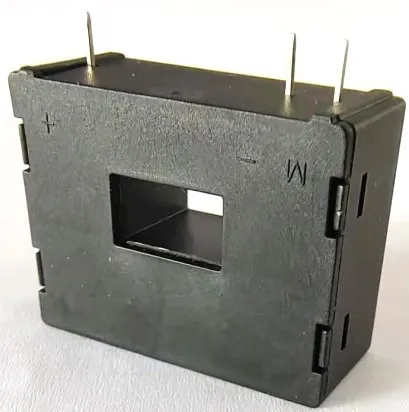

Help CenterFSM100LA-Freesor-current Sensor
US$ 5.4
≥240 Units
Key Specifications
Get Latest Price
Certification:
CE
Accuracy Grade:
Other
Customized:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
14 days
Related Products
-
FSM025AY-Freesor-current SensorUS$ 6.5MOQ: 100 Units -
FSM3005 Freesor-current SensorUS$ 263MOQ: 5 Units
-
FSD7304 - Freesor-current SensorUS$ 4MOQ: 500 Pieces
-
KPLS- Freesor-current SensorUS$ 1.8MOQ: 100 Pieces
-
KG24ZCD12C-500ACAN-Freesor-current Sensor -New Energy Current SensorsUS$ 18.6MOQ: 90 Units
Certification
CE
Accuracy Grade
Other
Customized
Customized
Trademark
freesor
Origin
China
Electricalcharacteristics | ||||
Tpye |
FSM050LAFSM100LA |
|||
IPN |
Primarynominalinputcurrent |
50100 |
A |
|
IP |
Measuringrangeofprimarycurrent |
0～±750～±150 |
A |
|
ISN |
Secondarynominaloutputcurrent |
5050 |
mA |
|
KN |
Conversionratio |
1:10001:2000 |
||
RM |
Measuringresistance(Vc=±15V) |
IP=±50A ：50-160IP=±100A ：0-110 |
Ω |
|
(Vc=±15V) |
IP=±75A ：50-90IP=±150A ：0-33 |
Ω |
||
VC |
Supplyvoltag |
±12～±15(±5%) |
V |
|
IC |
Currentconsumption |
Vc=±15V10+Is |
mA |
|
Vd |
Insulationvoltage |
2.5KVRMS/50Hz/1minbetweenprimaryandsecondarysidecircuits |
||
εL |
Linearity |
%FS |
||
X |
Accuracy |
TA=25℃Vc=±15V |
% |
|
IO |
Zerooffsetcurrent |
TA=25℃ |
mA |
|
IOM |
Residualcurrent |
IP=0 |
mA |
|
IOT |
ThermaldriftofI0 |
IP=0TA=-25～+85℃ |
mA |
|
Tr |
Responsetime |
μs |
||
f |
Frequencybandwidth(-1dB) |
DC～100 |
kHz |
|
TA |
Ambientoperatingtemperature |
-25～+85 |
℃ |
|
TS |
Ambientstoragetemperature |
-40～+100 |
℃ |
|
RS |
Secondarycoilresistance(TA=25℃) |
35 |
120 |
Ω |
Standard |
GI/FS-0105 |
|||
