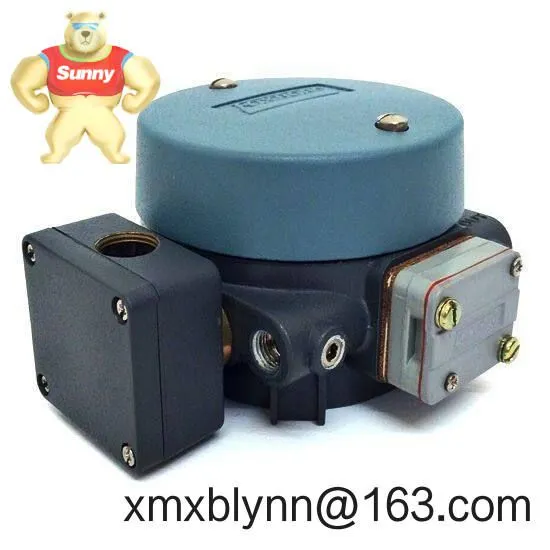

Help CenterFOXBORO E69F-T12-JRS Field-Mounted Current-to-Pneumatic Converter for Reliable 4–20 mA to 3–15 Psi Control
Related Products
-
Foxboro FBM201 P0914SQ Analog Input Interface Module – Stable 4–20 mA Acquisition for I/A Series Process ControlUS$ 1216.00MOQ: 1 Blade -
FOXBORO FBM201e P0924TR Analog Input Module – Stable 4–20 mA Collection for I/A Series/200 Series SystemsUS$ 1216.00MOQ: 1 Blade
-
Foxboro FBM203 P0914SV 8-Channel Isolated RTD Input Module – Multi-point, High-integrity Temperature Acquisition for Foxboro I/A Series SystemsUS$ 1216.00MOQ: 1 Blade
-
Foxboro FBM206 P0916CQ Pulse Input Module – Reliable Pulse and Totalizer Input for I/A Series 200 Series SystemsUS$ 1216.00MOQ: 1 Blade
-
Foxboro FBM207 P0914TD Discrete Input Interface Module – Reliable Digital Signal Acquisition for I/A Series SystemsUS$ 1216.00MOQ: 1 Blade
Warranty: 365 days
Lead time: 1 week if in stock; no more than 1 month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
4–20 mA loop-powered – No separate power supply in most cases; reduces panel complexity and wiring time.
Standard 3–15 psi output – Fits common valve positioner and actuator requirements; other ranges are typically available in the series.
Field-mounted rugged housing – Weather-resistant enclosure suited to outdoor and process-area installations.
Stable control with low air consumption – Helps maintain tight loops while keeping utility costs reasonable.
Zero and span trimming – Allows quick on-site calibration to match loop scaling.
Clean, dry air compatible – Works reliably with standard instrument air when properly filtered.
Flexible mounting – Commonly mounts to 2-inch pipe, wall, or panel with standard brackets.
| Brand / Model | FOXBORO E69F-T12-JRS |
| HS Code | 9032.89 (Other automatic regulating or controlling instruments and apparatus) |
| Power Requirements | 4–20 mA DC, loop-powered; typical loop supply available 12–30 VDC from host/controller |
| Signal Input / Output Types | Input: 4–20 mA DC; Output: pneumatic 3–15 psi (0.2–1.0 bar) nominal |
| Instrument Air Supply | Clean, dry air; typically 20–30 psi supply for 3–15 psi output; use filtration (≈5 μm) and dew point below ambient |
| Operating Temperature | Typically −40 to +85 °C (−40 to +185 °F) |
| Enclosure Rating | Weather-resistant field housing; NEMA 4/4X or IP65-class construction typically used in this series |
| Communication Interfaces | None (analog 4–20 mA only) |
| Connections | Typical ports: 1/4 in NPT pneumatic; 1/2 in NPT conduit for wiring (varies by submodel) |
| Installation Method | Field mounting on 2-inch pipe, wall, or panel with bracket; standard fasteners |
| Dimensions & Weight | Compact field unit; typically under 2 kg; exact values may vary by configuration |
This model is a good fit wherever an analog control signal needs to drive a pneumatic actuator or positioner:
Oil & gas skids (separator level control, gas flow control, burner management loops)
Refining & chemicals (valve positioners on control valves in unit operations)
Power & utilities (steam valve actuation, soot-blowing air control)
Water & wastewater (aeration valve control, chemical dosing with pneumatic actuators)
OEM machinery and process skids requiring stable I/P conversion
A maintenance supervisor told us they replaced older I/P units with E69F-series devices and the loops settled much faster, especially on small pneumatic actuators where drift was an issue before.
Reliability in harsh areas – The field housing and simple loop-powered design reduce points of failure.
Compatibility – Works with standard 4–20 mA loops and typical valve positioners at 3–15 psi.
Cost of ownership – Low air consumption and minimal maintenance usually mean fewer unplanned stops.
Spares & interchange – The E69 family is widely used; replacement and interchange are typically straightforward.
Support – Clear zero/span adjustments help technicians re-range and calibrate quickly on site.
Mounting – Install on a rigid surface or 2-inch pipe; keep the unit accessible for calibration. Avoid direct heat sources and heavy vibration when possible.
Wiring – Route the 4–20 mA pair separately from high-voltage lines. Use shielded cable and earth the shield at one end to reduce noise pickup.
Air quality – Feed with clean, dry instrument air through a filter/regulator. A 5 μm filter and a dew point below ambient are typically sufficient.
Start-up – Apply air, then energize the loop. Set zero and span under normal operating pressure to match your control range.
Routine checks – Inspect fittings for leaks quarterly, verify output against a test gauge, and clean/replace the air filter as needed.
Calibration – Annual verification is common practice; trim zero/span if the process demands tighter accuracy.
Firmware – Not applicable; this is an analog device, which in many cases simplifies site maintenance.
CE compliance is typical for this series; hazardous-area approvals (such as FM/ATEX/CSA) are available on certain submodels—please verify against the E69F-T12-JRS nameplate.
Manufacturing quality aligns with established FOXBORO process instrumentation standards.
Warranty: 12 months from shipment.
Instrument air filter-regulator (with 5 μm element) to stabilize supply pressure
Coalescing filter for oil removal where compressors are oil-lubricated
Pressure gauge (3–30 psi) mounted near the outlet for quick visual checks
Mounting bracket set for 2-inch pipe or wall mounting
