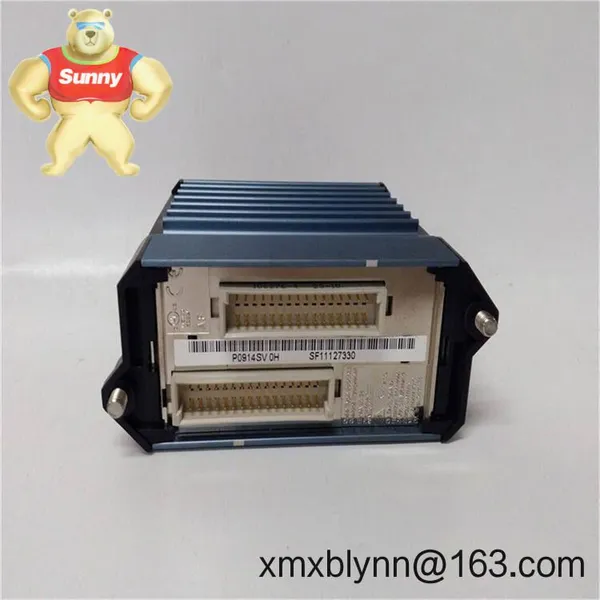

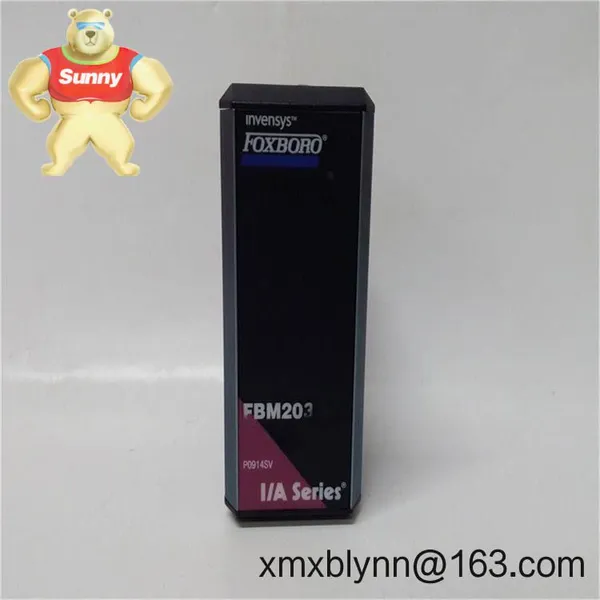

Help CenterFoxboro FBM203 P0914SV 8-Channel Isolated RTD Input Module – Multi-point, High-integrity Temperature Acquisition for Foxboro I/A Series Systems
Related Products
-
Foxboro FBM206 P0916CQ Pulse Input Module – Reliable Pulse and Totalizer Input for I/A Series 200 Series SystemsUS$ 1216.00MOQ: 1 Blade -
Foxboro FBM207 P0914TD Discrete Input Interface Module – Reliable Digital Signal Acquisition for I/A Series SystemsUS$ 1216.00MOQ: 1 Blade
-
Foxboro FBM207B P0914WH Contact Sense Input Interface Module – Reliable 120 Vac Discrete Input for I/A Series 200US$ 1216.00MOQ: 1 Blade
-
Foxboro FBM207B P0916JS Contact Sense Module – Reliable 16‑Channel Dry Contact Input for I/A Series SystemsUS$ 1216.00MOQ: 1 Blade
-
Foxboro FBM208 P0914TB Discrete Output Interface Module – Reliable 8‑Channel DO for I/A Series and EcoStruxure Foxboro DCSUS$ 1216.00MOQ: 1 Blade
Warranty: 365 days coverage.
Delivery: 1 week for in-stock items; no more than one month at the latest.
Payment: 50% advance payment; full payment prior to delivery.
Express options: FedEx, UPS, DHL.
8 isolated RTD channels – Each channel is isolated, which typically reduces crosstalk and prevents ground loop issues across long cable runs.
Direct RTD connection – Designed for standard industrial RTDs (commonly Pt100), 2- or 3‑wire, so you don’t need external transmitters in many cases.
Tight integration with Foxboro I/A Series – Plugs into the 200 Series baseplate and communicates over the Foxboro Module Fieldbus for seamless engineering and diagnostics.
High-density temperature input – Eight channels in a single-wide module saves cabinet space and simplifies wiring for multi-point temperature monitoring.
Noise immunity and stability – Isolation plus robust input design helps retain accuracy in electrically noisy environments, like MCC rooms or near VFDs.
Maintenance-friendly – Front-access terminals (via baseplate) and clear channel diagnostics make routine checks straightforward.
| Brand / Model | Foxboro FBM203 (P0914SV) |
| HS Code | 8537.10 (Boards/panels for electric control, PLC/DCS modules) |
| Channels | 8 RTD input channels, individually isolated |
| Supported Sensors | Typically Pt100 per IEC 60751; 2‑ or 3‑wire connection (additional RTD types may be supported depending on configuration) |
| Typical Measurement Range | Pt100 approximately −200 to +650 °C (actual range depends on RTD curve and engineering units) |
| Isolation | Channel‑to‑channel and channel‑to‑bus isolation (typical 250 V isolation class) |
| Power Requirements | Powered from the Foxboro 200 Series baseplate (nominal 24 VDC cabinet supply to baseplate) |
| Communication | Foxboro Module Fieldbus via baseplate to I/A Series / EcoStruxure Foxboro DCS controller |
| Dimensions & Weight | Standard single‑wide 200 Series FBM form factor; approx. 110 × 45 × 105 mm; around 0.3 kg |
| Operating Temperature | Typically 0 to 60 °C, 5–95% RH non‑condensing |
| Installation Method | Plugs into 200 Series baseplate; DIN‑rail or panel‑mounted baseplate; field terminations via baseplate terminal assembly |
The FBM203 typically finds its place anywhere precise multi-point temperature feedback is critical:
Oil & Gas and Petrochemical – reactor jackets, heat-tracing circuits, distillation column trays.
Power Generation – bearing temperatures, lube oil skids, heat exchanger monitoring.
Water & Wastewater – digester temperature, sludge drying, blower room monitoring.
Pharma & Food – CIP/SIP temperature validation and controlled heating loops.
Pulp & Paper – dryer sections and process tank temperature balancing.
You might notice that plants often replace scattered standalone transmitters with the FBM203 when they want uniform engineering, diagnostics, and alarming inside the DCS. It seems to be a cleaner lifecycle approach in many cases.
Reliability – Isolated channels and robust Foxboro hardware typically boost uptime in electrically noisy areas.
Compatibility – Native fit with 200 Series baseplates and I/A Series controllers reduces engineering hours and commissioning time.
Cabinet efficiency – Eight inputs per module means less footprint and fewer terminal blocks compared to single-loop transmitters.
Lower total cost – Direct RTD inputs can cut hardware spend and spares compared with distributed transmitters across the plant.
Serviceability – Easy module swap on the baseplate; diagnostics help you pinpoint wiring or sensor faults fast.
Cabinet environment – Mount on a Foxboro 200 Series baseplate within a ventilated control cabinet; keep within the stated temperature/humidity range.
Power & grounding – Feed the baseplate with a clean 24 VDC supply; maintain a solid single-point ground to minimize noise.
Wiring – Use shielded twisted pairs for RTDs; land 2‑ or 3‑wire leads per the channel diagram on the terminal assembly; separate from high‑voltage cabling.
Commissioning tips – Verify RTD type (e.g., Pt100), wiring method, and scaling in the DCS. A quick loop check at ambient can catch inversions or open circuits.
Routine checks – Inspect terminal tightness and cable shields periodically; perform sensor cross‑checks against a reference probe during planned outages.
Firmware/config – Keep controller and system firmware current per site policy; document any range or filter changes in the instrument index.
Supporting components typically used with the FBM203: a 200 Series baseplate (DIN/panel mount), redundant baseplate power supply modules, and the matching terminal assembly for field wiring. If you’re consolidating panels, a slimmer baseplate can help fit eight or more FBMs in a single bay.
Quality & CertificationsCE compliance for EMC and safety (typical for Foxboro 200 Series modules).
UL/CSA certifications are commonly available for North American installations.
RoHS conformity varies by hardware revision; we can confirm by serial/part code.
Manufacturer-grade quality control with proven installed base in critical process industries.
Warranty support is 365 days through our channel. If you’d like, we can match the exact hardware revision to your controller firmware to avoid any compatibility surprises.
