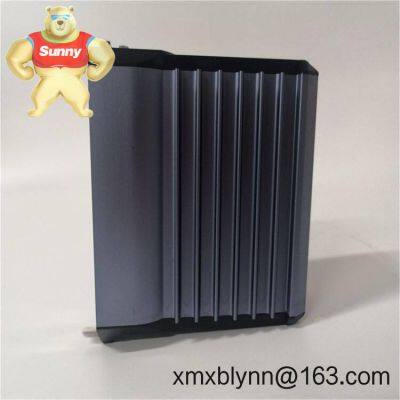

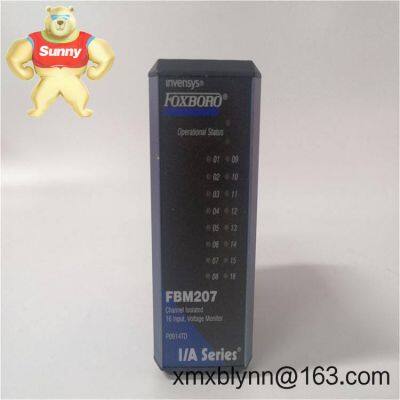

Help CenterFoxboro FBM207 P0914TD Discrete Input Interface Module – Reliable Digital Signal Acquisition for I/A Series Systems
Related Products
-
Foxboro FBM207B P0914WH Contact Sense Input Interface Module – Reliable 120 Vac Discrete Input for I/A Series 200US$ 1216.00MOQ: 1 Blade -
Foxboro FBM207B P0916JS Contact Sense Module – Reliable 16‑Channel Dry Contact Input for I/A Series SystemsUS$ 1216.00MOQ: 1 Blade
-
Foxboro FBM208 P0914TB Discrete Output Interface Module – Reliable 8‑Channel DO for I/A Series and EcoStruxure Foxboro DCSUS$ 1216.00MOQ: 1 Blade
-
Foxboro FBM211 P0914TN Discrete Input Module – Reliable Digital Status Acquisition for I/A Series / EcoStruxure Foxboro DCSUS$ 1216.00MOQ: 1 Blade
-
Foxboro FBM212 P0914XL Interface Module – Stable I/A Series I/O Interface for Demanding Process PlantsUS$ 1216.00MOQ: 1 Blade
- Warranty period: 365 days
- Delivery time: 1 week for in-stock items; no more than one month at the latest
- Payment: 50% advance payment; full payment before delivery
- Express delivery options: FedEx, UPS, DHL
Multi‑channel discrete inputs – Typically up to 16 digital inputs per module, suitable for dry contacts and proximity-type field devices.
Robust isolation and filtering – Channel/field isolation helps reduce noise and ground issues in electrically harsh areas.
Status and diagnostics – Per-channel status indication and module health reporting simplify troubleshooting.
Hot‑swappable on 200 Series baseplate – In many cases, maintenance can replace a module without shutting down the entire cabinet.
Redundancy‑ready architecture – Supports redundant strategies at the system level for higher availability.
Compact footprint – Single‑wide 200 Series FBM form factor saves cabinet space and eases wiring.
Compatible with standard TAs – Works with Foxboro 200 Series Termination Assemblies for different voltage ranges and wiring styles.
| Brand / Model | Foxboro FBM207 (P0914TD) |
| HS Code | 8537.10 – Boards, panels, consoles for electric control (industrial control equipment) |
| Power Requirements | Powered from 200 Series baseplate (no external supply to module; typical low power draw) |
| Operating Temperature | 0 to 50°C typical control room/service environment |
| Signal Input/Output Types | Discrete (digital) inputs; dry contact/proximity type; voltage levels depend on TA and field power (commonly 24 Vdc or 120 Vac wiring schemes) |
| Communication Interfaces | Foxboro 200 Series fieldbus via baseplate to I/A Series controller |
| Installation Method | Installs on 200 Series baseplate (DIN-rail mounted baseplate); field wiring via plug-in Termination Assembly (TA) |
| Dimensions & Weight | Standard single‑wide 200 Series FBM; fits one baseplate slot (compact, cabinet‑friendly) |
Typical deployments include oil & gas (skid packages, wellhead panels), petrochemicals (unit interlocks, permissives), power generation (balance‑of‑plant status), water & wastewater (pump stations, valve feedback), pulp & paper (conveyor and drive status), and mining/minerals (crusher/mill auxiliaries). One thing I appreciate is how easily it handles mixed plant signals when paired with the right TA—handy in brownfield upgrades where wiring standards vary by unit.
Reliability – Robust isolation and mature firmware lead to stable operation, even with long cable runs and noisy motors around.
Compatibility – Fully compatible with Foxboro I/A Series 200 Series baseplates, controllers, and engineering tools.
Cabinet efficiency – High channel density per slot typically lowers panel space and wiring cost.
Lifecycle support – Broad installed base and long-term service support reduce long-run risk for maintenance teams.
Procurement clarity – Standardized spare strategy; easy to stock and swap, keeping downtime to a minimum.
“We swapped an FBM207 during a turnaround—rewired the TA and validated points in under an hour. No surprises.” — Maintenance Supervisor, chemical plant (shared after a field retrofit)
Installation & MaintenanceCabinet environment – Install in a clean, ventilated enclosure; maintain ambient 0–50°C and avoid condensation.
Baseplate & TA – Mount on a 200 Series baseplate; select the TA that matches your field voltage and wiring style (sourcing/sinking, fuse/relay options as required).
Wiring practice – Use twisted pair for long runs; land shields per site standard; verify commons and isolation groups to prevent ground loops.
Safety – Isolate field power before wiring; confirm TA voltage rating; verify each channel with a simulated contact before commissioning.
Routine upkeep – Quarterly terminal re‑torque checks, visual inspection for contamination, and periodic point-by-point validation. Firmware updates may be applied when recommended by the vendor.
Spares strategy – Keep at least one spare FBM207 and the matching TA on site for critical units; label wiring clearly to speed replacements.
CE marking for EMC/safety (typical for I/A Series FBMs)
UL/cUL industrial control equipment listing
RoHS-compliant variants commonly available
Manufactured under ISO 9001 quality systems
Standard warranty: 365 days (provided by our sales channel as listed above)
200 Series Baseplates (DIN‑rail) – Single-wide slot baseplates for FBM mounting; include fieldbus backplane and power rails.
Termination Assemblies (TAs) for FBM207 – TA variants to suit typical 24 Vdc or 120 Vac circuits, with options for fusing or relay interfacing as applicable.
Shielded Field Cables – Pre‑terminated or site-fabricated cabling for neat routing and reduced EMI.
Redundancy Hardware – System-level redundancy components when dual FBM strategies are employed.
Cabinet Power & Protection – DC power supplies, distribution, and surge protection aligned with Foxboro 200 Series practices.
If you’re migrating or expanding an I/A Series node and need consistent digital input handling, the FBM207 P0914TD is typically a safe choice—easy to integrate, simple to maintain, and proven in continuous-process plants.
