Wholesale Stainless Steel 410s Tortoise Shell Mesh Double Clench Bonding Hole Hexmetal Perforated Expanded Liner Cutting
US$ 9.2 - 45
MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Material:
Stainless steel wire
Type:
Expanded Mesh
Technique:
Perforated
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
B Lance Type Hexmetal Manufacturer 20mm Hexagonal Aperture Stainless Steel Wire Expanded Mesh for Hot Floors Welding ProcessingUS$ 9.2 - 45MOQ: 1 Square Meter -
Hexmesh for Retain Refractories Thin Wall Linings in the Oil, Petrochemical, Metallurgy, Chemical and Cement IndustriesUS$ 31.50 - 37.50MOQ: 50 Square Meters
-
Manufacturer's Cost-Effective Low Carbon Steel Hexsteel Plain Weave Turtle Wire Mesh for Hot Floors Cut Weld for FoundryUS$ 9.2 - 45MOQ: 1 Square Meter
-
Stainless Steel Hexsteel Mesh for Refractory Linings In Boiler FlueUS$ 5 - 15MOQ: 1 Square Meter
-
Corrosion-Resistant Hexagonal Cellular Mesh Stainless Steel Hexagonal Mesh for Chemical Plant & Marine UseUS$ 33.50 - 37.50MOQ: 50 Square Meters
Technique
Perforated
Model Number
Hexagonal Mesh5151
Brand Name
Longen
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Cutting, Welding
Weave Style
Plain Weave
Hex steel material
A3F,0CR13,1CR17,OCR18NI9,SS321,SS316
Hex steel material thickness
1.0mm,1.2mm,1.5mm,1.8mm,2.0mm,2.5mm,3.0mm
Mesh size
40mm,48mm,50mm,60mm,80mm,100mm
Product name
Hex Steel Mesh Hexmetal
Usage
refractory linings
Hex steel product depth
10-60mm
Connection Type
Inner buckle lock riveting \ outer buckle lock riveting
Feature
High weldability \ long lifetime \ easy to install
Color
sliver and black
sample
Sample Availible
Product Description
Hex mesh, commonly referred to as hex metal or hex metal grating, is a robust steel framework widely used in industrial and construction applications. Also termed hex steel mesh, hex steel grill, or hex steel grid, this material serves as a reinforced structural support for refractory linings and concrete surfaces. Engineered for durability, hex metal mesh is manufactured by precision-pressing and interlocking metal strips, forming uniform hexagonal apertures that enhance load distribution and material adhesion.
Ideal for high-temperature environments and heavy-duty projects, hex metal grating combines strength with flexibility, making it a preferred choice for furnace linings, flooring systems, and infrastructure reinforcement. The unique hexagonal pattern of hex mesh ensures optimal anchoring for castable refractories while allowing thermal expansion control. Available in various steel grades and aperture sizes, hex steel grid solutions meet rigorous engineering standards for industrial lining applications and architectural designs.
Specification
Hex mesh material |
A3F,0CR13,1CR17,OCR18NI9,SS321,SS316 |
Hex mesh material thickness |
1.0mm,1.2mm,1.5mm,1.8mm,2.0mm,2.5mm,3.0mm |
Mesh size |
40mm,48mm,50mm,60mm,80mm,100mm |
Hex mesh product thickness |
10-60mm |
Connection Type |
Inner buckle lock riveting outer buckle lock riveting. |

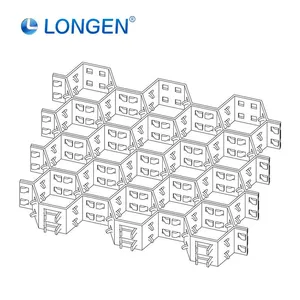

Hexsteel: Bonding Hole Type
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to
achieve a bond from one cell to another.
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to
achieve a bond from one cell to another.
Hexsteel: lance tab type
This style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
This style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
Application
Hex Mesh & Hex Metal: Versatile Solutions for Industrial Applications
1. High-Temperature Equipment Protection
Hex steel mesh serves as an exceptional refractory lining material for extreme environments, offering unmatched flexibility, tensile strength, and corrosion resistance. Its thermal stability makes it ideal for lining:
Industrial furnaces and reactor vessels
Cement plant cyclones and kiln components
Power plant flue gas systems and ductwork
Petrochemical processing equipment ：Particularly effective in power generation, steel production, and heavy manufacturing sectors, hex metal significantly enhances heat dissipation while resisting thermal erosion and mechanical abrasion.
2. Heavy-Duty Floor Reinforcement
Hex mesh provides superior impact resistance for industrial flooring systems requiring:
Forklift traffic durability in warehouses
Thermal protection in foundry floors (800°C+ environments)
Load-bearing capacity for truck ramps/docks
Slip-resistant surfaces in steel mills
Structural reinforcement for waste treatment plants
Its interlocking design withstands continuous rolling loads and mechanical stress, outperforming conventional concrete floors in high-traffic zones.
3. Adaptable Structural Solutions
The unique flexibility of hex metal allows seamless adaptation to complex geometries, making it perfect for:
Curved duct lining installations
Custom-shaped furnace interiors
Reactor vessel contouring
1. High-Temperature Equipment Protection
Hex steel mesh serves as an exceptional refractory lining material for extreme environments, offering unmatched flexibility, tensile strength, and corrosion resistance. Its thermal stability makes it ideal for lining:
Industrial furnaces and reactor vessels
Cement plant cyclones and kiln components
Power plant flue gas systems and ductwork
Petrochemical processing equipment ：Particularly effective in power generation, steel production, and heavy manufacturing sectors, hex metal significantly enhances heat dissipation while resisting thermal erosion and mechanical abrasion.
2. Heavy-Duty Floor Reinforcement
Hex mesh provides superior impact resistance for industrial flooring systems requiring:
Forklift traffic durability in warehouses
Thermal protection in foundry floors (800°C+ environments)
Load-bearing capacity for truck ramps/docks
Slip-resistant surfaces in steel mills
Structural reinforcement for waste treatment plants
Its interlocking design withstands continuous rolling loads and mechanical stress, outperforming conventional concrete floors in high-traffic zones.
3. Adaptable Structural Solutions
The unique flexibility of hex metal allows seamless adaptation to complex geometries, making it perfect for:
Curved duct lining installations
Custom-shaped furnace interiors
Reactor vessel contouring
Cyclone separator reinforcement
When combined with flex metal systems, hex mesh creates hybrid linings that strengthen both flat surfaces (factory floors) and curved structures (chimney flues), while enhancing cement composite durability through embedded reinforcement.
production process
installation Instructions
Hex mesh Hexagonal Heat-Resistant Mesh install process ：
1.Weld the Tortoise Shell Mesh directly to the inner walls of equipment (e.g., boilers, pipelines).
2.Apply heat-resistant coatings or castables over the mesh to create a robust, insulated layer.
2.Apply heat-resistant coatings or castables over the mesh to create a robust, insulated layer.
