Hexmesh are made of pressed strips and riveted together to form hexagonal holes.
Hexmetal (hexmesh), also known as hexagonal steel or hexagonal mesh, is used to support refractory materials in the refining, petrochemical, cement, steel and subcontracting industries to minimize erosion and retain refractory materials in furnaces, kilns, incinerators and reactors.
Hexagonal Steel Mesh and flexible metal refractory lining features：
1. High wear resistance high temperature corrosion resistance.
2. Strong Thermal state impact ability.
3. Good mechanical processing performance.
4. Used in about 1300 °C.
5. High weldability long lifetime easy to install.
Specification
Certification |
ISO:9001,CE |
Hole Shape |
Hexagonal |
Material |
Carbon Steel 、Stainless Steel、Varies Alloys |
Gauge |
12#, 14#, 16# Etc. |
Thickness |
3/4", 1", 2" Etc |
Standard Panel Size |
36"X120" (914X3050mm),1000x2000mm,1000x1000mm,Customizable |
Technical |
Perforating & Riveting |
LE Quality Requirements |
Uniform Mesh ,Firm Riveting ,Flat Mesh Surface ,Free Of Oil Stains Surface |
Packaging Details |
Steel Pallet / Wooden Pallet |
Application |
Support Refactories In The Refining, Petrochemical, Cement, Steel And Sub-Contract Industries For The Minimising Of Erosion And The Retention Of Refractories In Furnaces, Kilns, Incinerators, And Reactors. |
Supply Ability |
800㎡/Day |
Delivery Time |
According To The Order (In Stock) |
Whether you need standard size panels, custom-shapes or rolled products, LONGEN® has the equipment, expertise and experience to meet your needs quickly and cost-effectively.

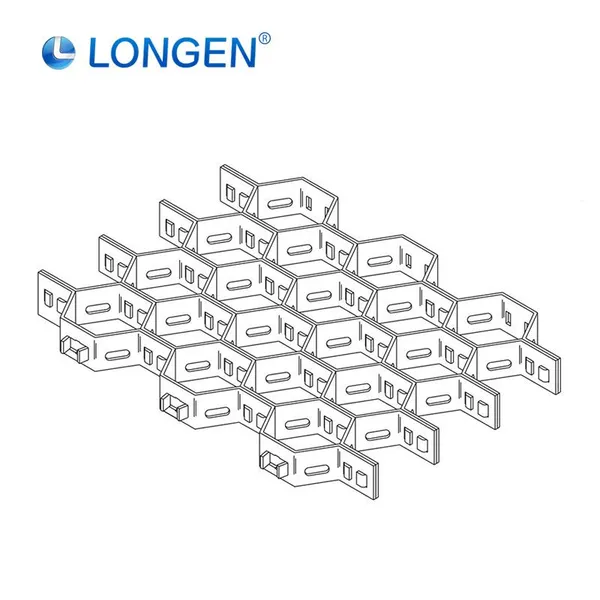

Hexmesh Types：H Type With Bonding Holes and L Type With Lance Tabs.

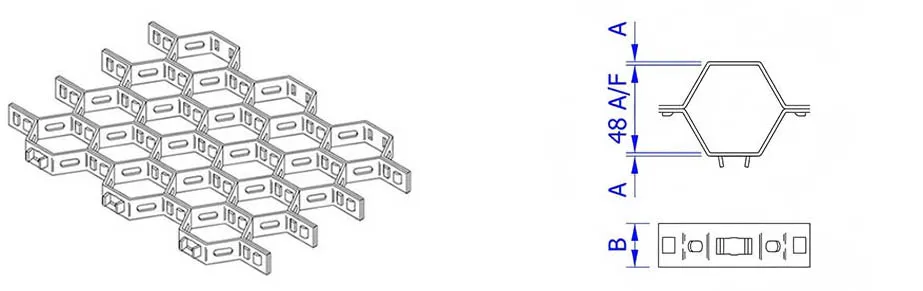

H Type With Bonding Holes.
1）Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.

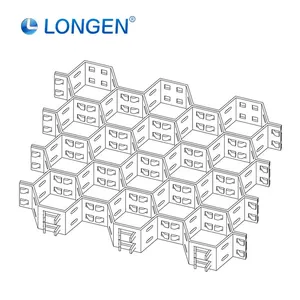

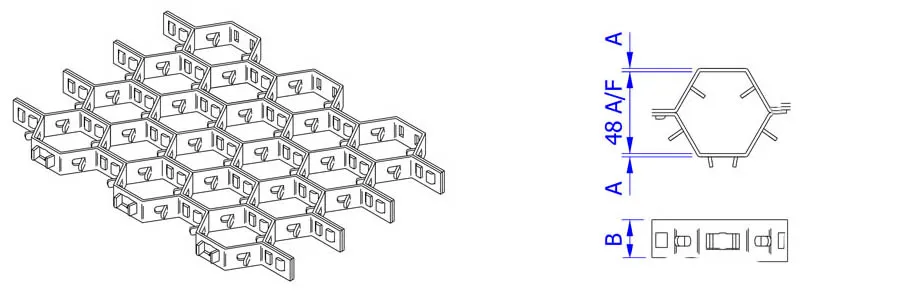

L Type With Lance Tabs.
1）Hex-metal: Pronges/Lances Type This style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.

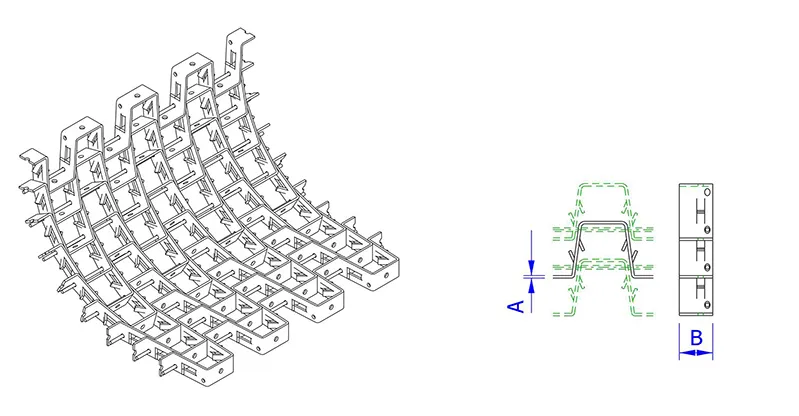

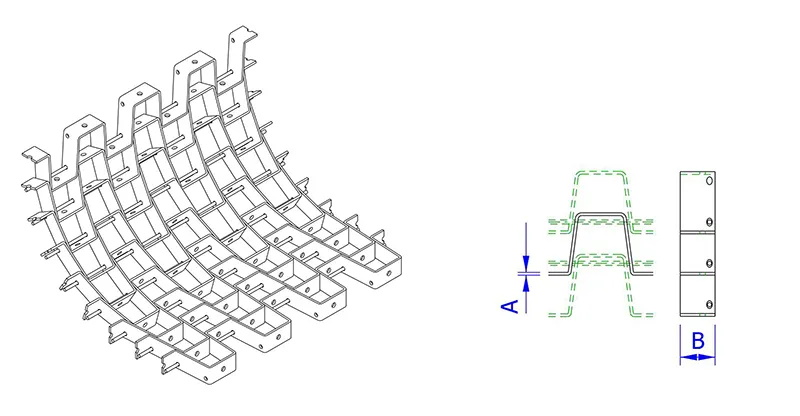

Flexmesh Type: Bonded Hole Flexmesh and Lance Tabs Flexmesh
H Type Bonding Holes Flexmesh
1）Bonding hole (H Type) - instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.
L Type Lance Tabs Type Flexmesh
2）Lance Tabs Type Flexmesh
Lance Tabs (L type) - this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory . If the refractory is being gun applied the lances may cause a shadow effect with a void forming behind the lances.

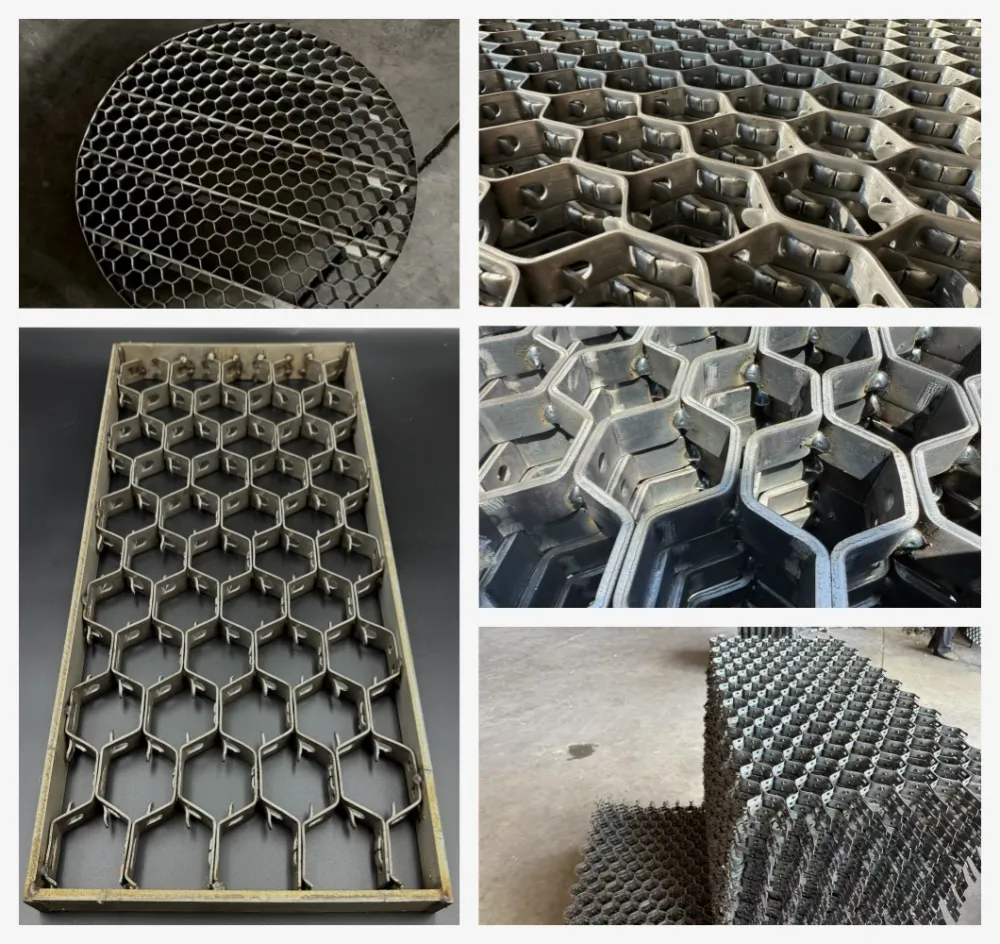

Product Details
Our hexmesh (hexmetal) products have uniform mesh size, are firmly riveted, have a flat surface, and are free of oil stains. They are manufactured in full accordance with industry standards and customer requirements. We can also provide customers with deep processing services for hexmesh (hexmetal).

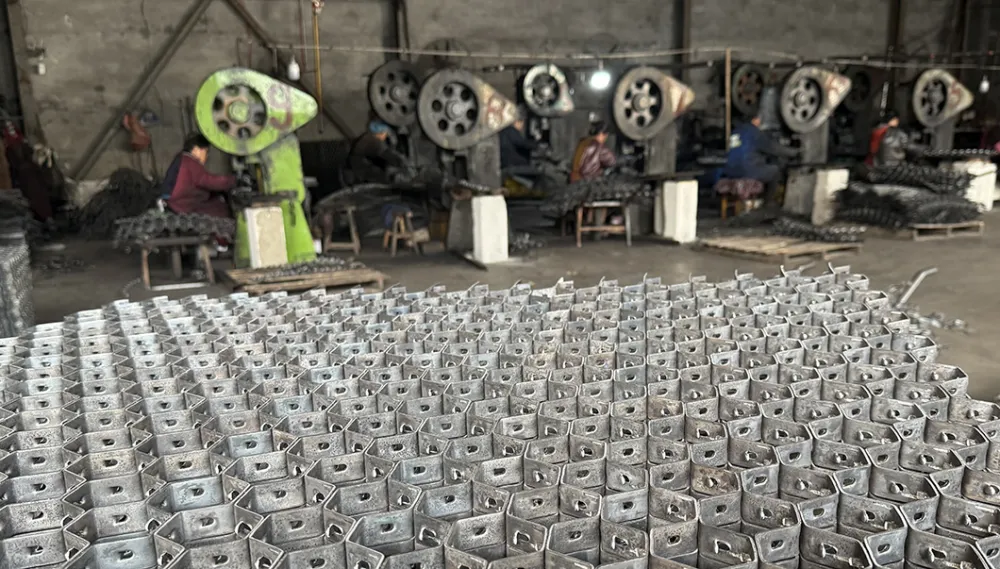

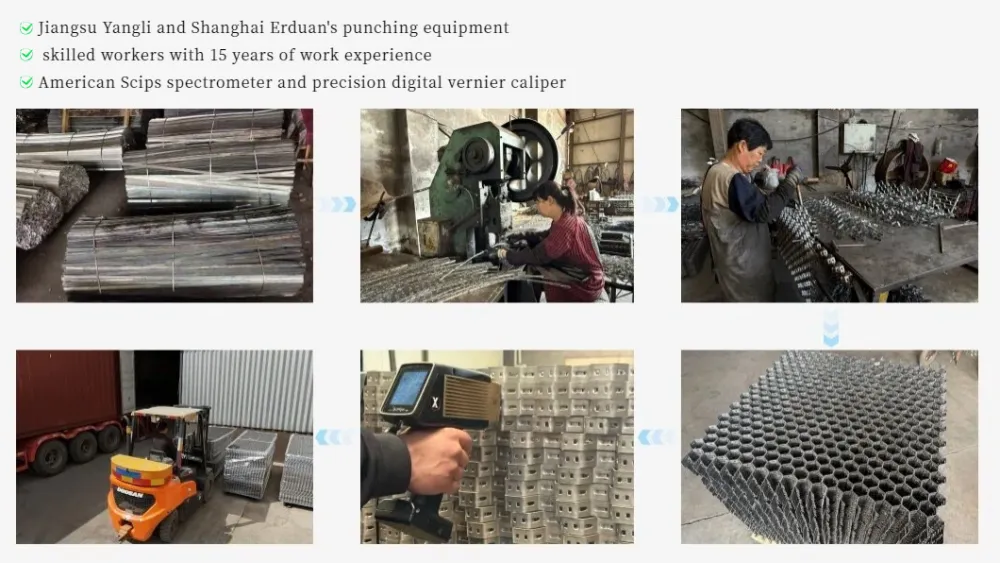

Production details
We strictly adhere to and implement the ISO 9001 quality management system, and our fully automated process ensures consistent product quality. From raw materials to finished products, our advanced factory rigorously controls every step.

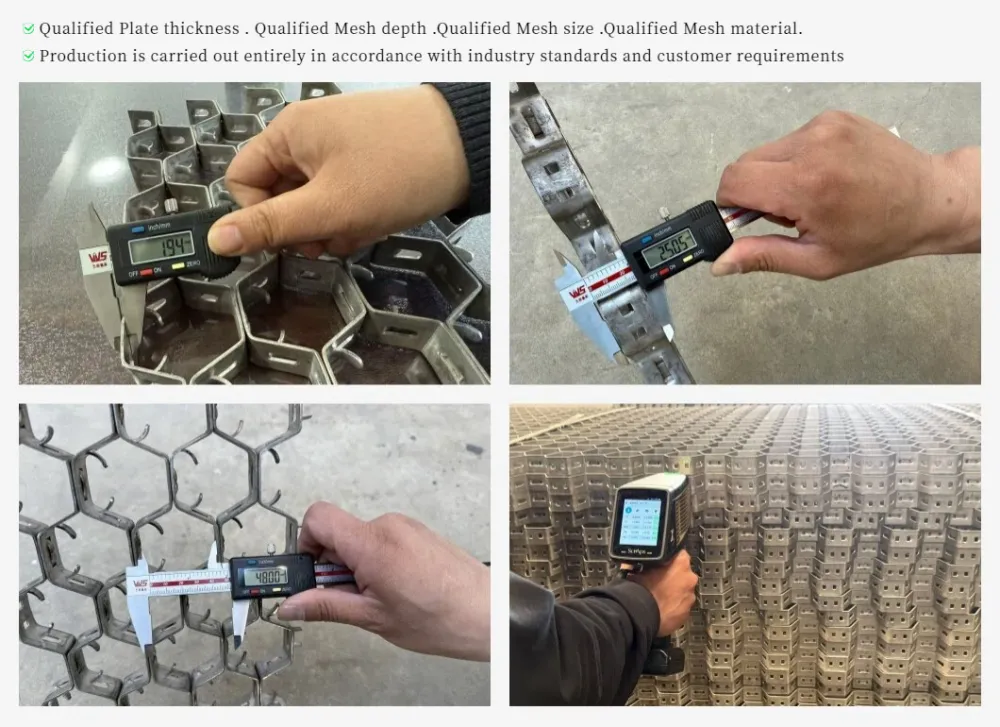

Product inspection
Before products leaving the factory, we have conducted rigorous inspections on the product's material, plate thickness, depth, external dimensions, connection points, etc., in accordance with industry standards and customer requirements.

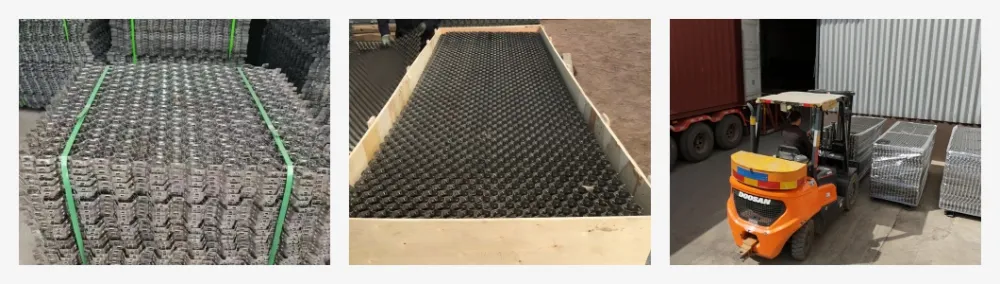

Packaging and Shipping
1.packing in wooden box
2. packing in bundles
3..Acccording to client's requirement.

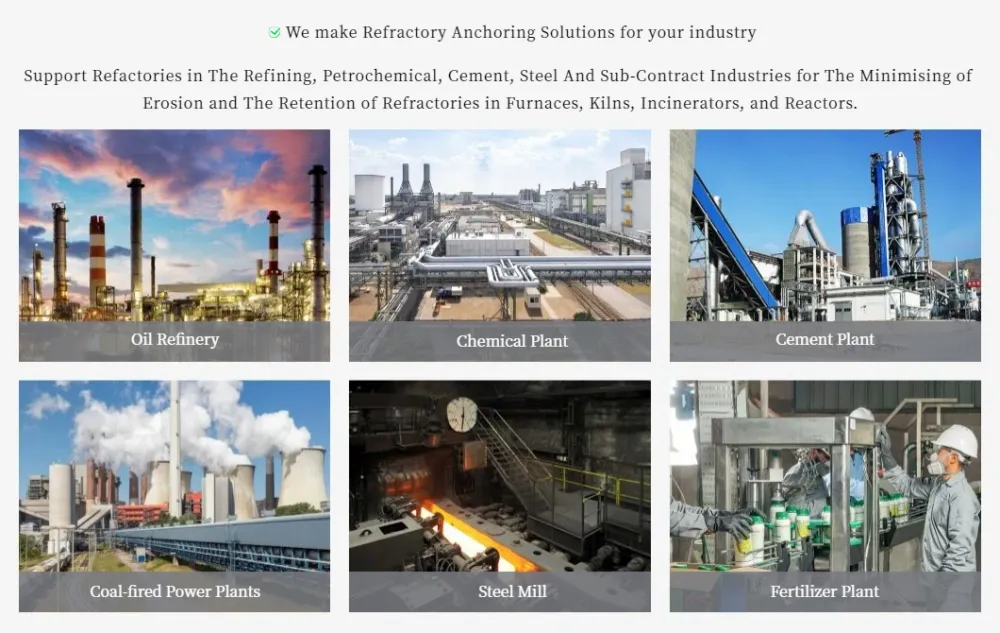

Applications of hexmesh（hexmetal）：
Our hexmesh and refractory anchor products are used to support refractory materials in the refining, petrochemical, cement, steel and subcontracting industries to minimize erosion and retain refractory materials in furnaces, kilns, incinerators and reactors.

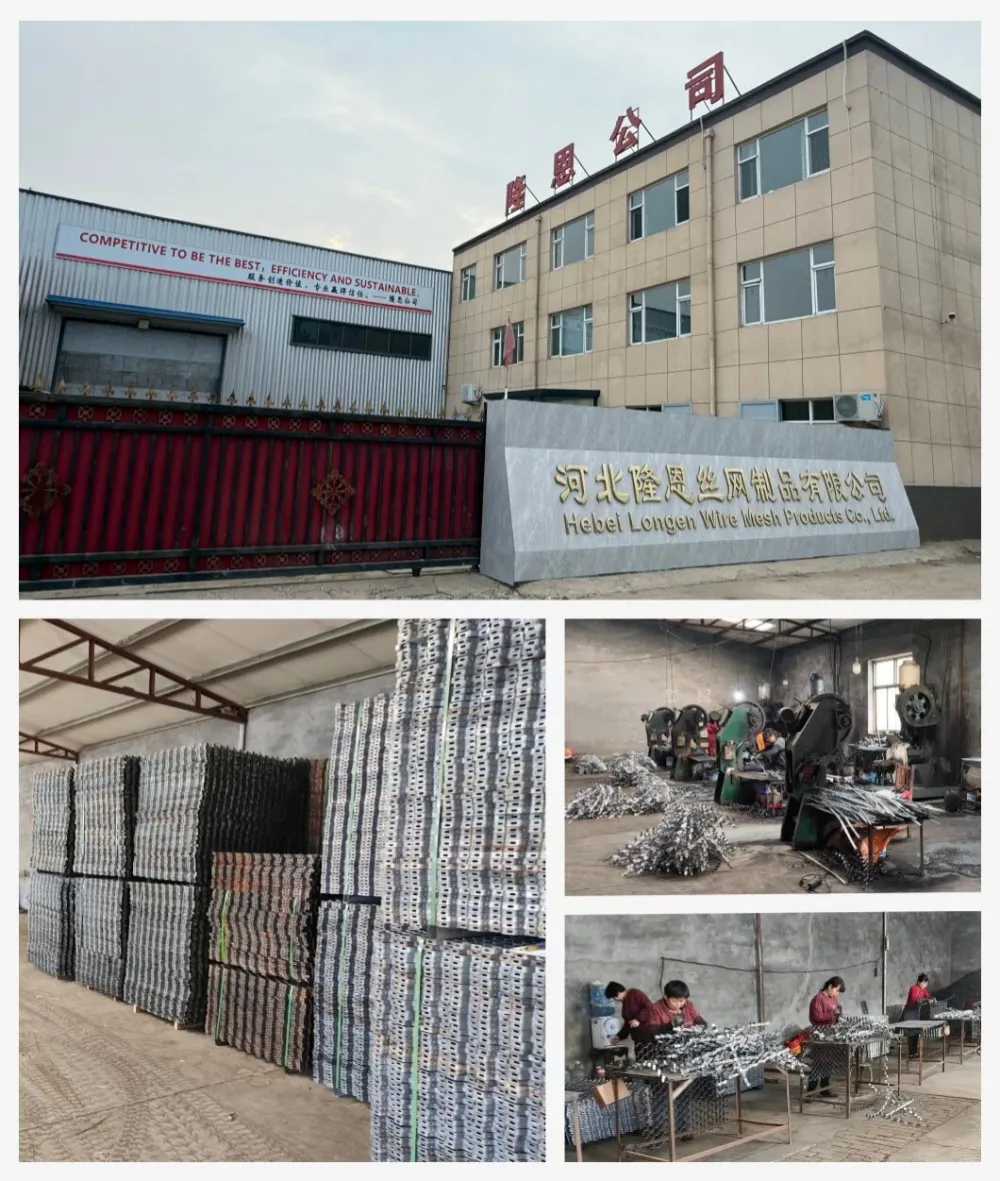

Company Profile
What can we do for you?
Give us a call or send us an email, We will be happy to provide you with technical support and service !
Hebei Longen Wire Mesh Products Co., Ltd. Was established in 2015,The company relies on continuous technological innovation andquality improvement to create value for customers. We have established a management system based on ISO 9001 requirements and havebecome a benchmark enterprise in the industry.
Our excellence in manufacturing, service, and support ensure we offer the best solutions to fulfil the diverse needs of our customers.
