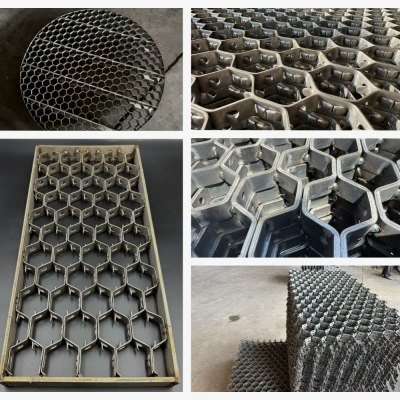

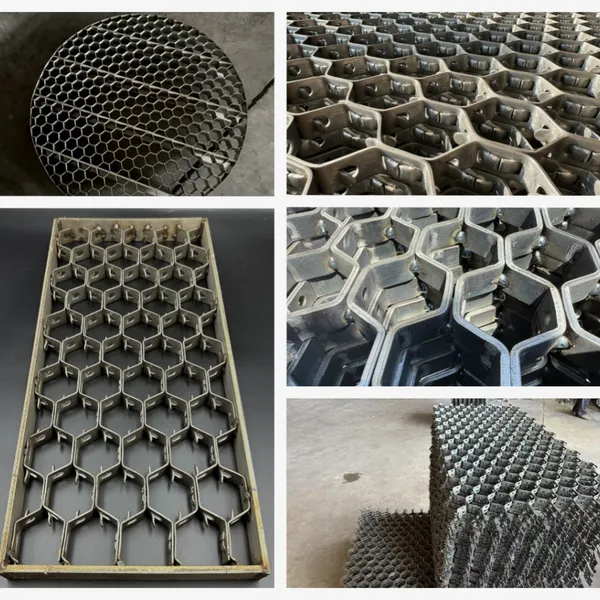

Help CenterHexmesh Stainless Steel 410 Bonding Hole Hexmesh Lance Tabs Hexagonal Mesh , for Fix Refractory Materials for FCC Units in Refineries
Product Spotlights
Related Products
-
Refractory Armour Systems Refractory Hexmetal Mesh Flexmetal Mesh Lining Ancillaries Refractory Anchors Hex Steel ManufacturerUS$ 33.5 - 37.5MOQ: 1 Square Meter -
LONGEN Refractory Hex Mesh ManufacturerUS$ 12.50 - 16.80MOQ: 1000 Meters
-
Refractory Hex Metal Hexsteel SupplierUS$ 12.50 - 16.80MOQ: 1000 Meters
-
Refractory Lining Supplier Stainless Steel Hexmesh/Hexsteel Metal/Hex GridUS$ 99.00 - 100.00MOQ: 100 Square Meters
-
SS304 210 Hex Metal Refractory SupplieUS$ 99.00 - 100.00MOQ: 100 Square Meters
Stainless Steel hexmesh Refractory Lining Manufacturers
Stainless Steel Hexsteel Mesh
Hexagonal grids are made from battens riveted together to form hexagonal holes.
Hexagonal metal (hexmesh), also known as hex steel or hexagonal mesh, is used to support refractory materials in the refining,petrochemical, cement, steel and subcontracting industries to minimize erosion and retain the refractory material in furnaces,kilns, incinerators and reactors.
Features of hexagonal steel mesh and flexible metal refractory lining:
1. High wear resistance, high temperature resistance and corrosion resistance.
2. Strong thermal shock resistance.
3. Good mechanical processing performance.
4. Used at about 1300 ℃.
5. High weldability, long life and easy installation.
Specification
Metal Materials |
A3F, 0CR13, 1CR17, OCR18NI9, SS321, SS316,Customizable |
Hexagonal steel material thickness |
1.0mm, 1.2mm, 1.5mm, 1.8mm, 2.0mm, 2.5mm, 3.0mm,Customizable |
Mesh size |
40mm, 48mm, 50mm, 60mm, 80mm, 100mm,Customizable |
Hexagonal steel product thickness |
10-60 mm,Customizable |
Length x Width |
According to customer requirements |
Connection Type |
Internal lock riveting External lock riveting. |
Our experience has enabled us to develop a unique range of intelligent anchoring systems. Whether you require standard sizedpanels, custom shapes or rolled products, Longen has the equipment, expertise and experience to provide our customers with flexible, reliable and cost-effective solutions to ensure the safety of refractory linings. Our use of technology gives us the flexibility to provide faster production and shorter delivery times to suit the needs of different customers and industries.

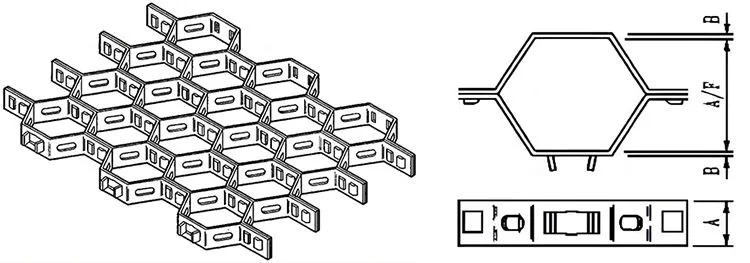

Hexmesh Types: H-Type With Bonding Holes and L-Type With Lance Tabs.
H-Type With Bonding Holes.
1) Instead of lance tabs, holes are punched in the walls of the hexagonal cells. The refractory material can then flow through these holes to achieve the bond from one cell to the other.

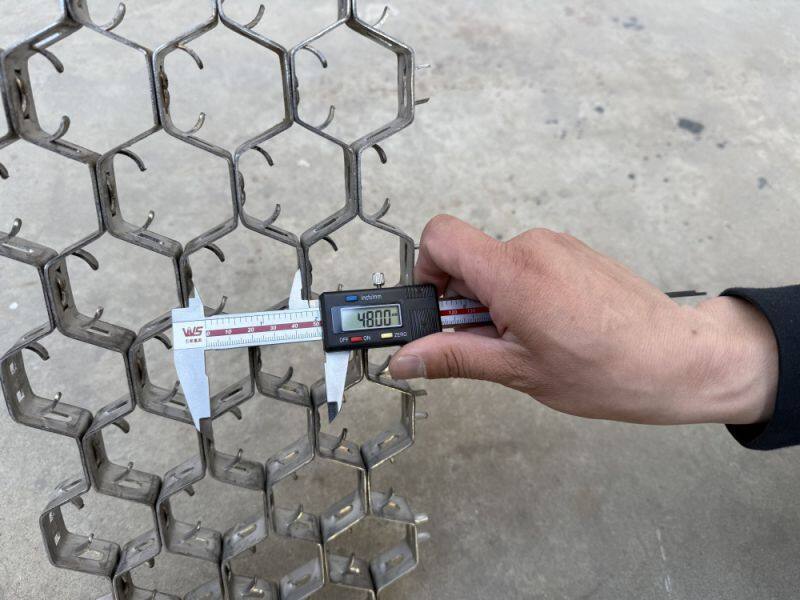

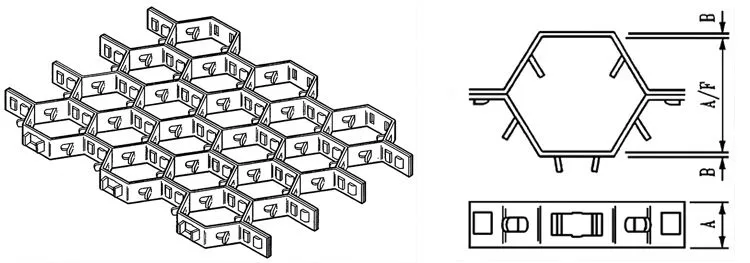

L-Type With Lance Tabs.
2) Hexagonal Metal: Fork/Lance Type This style has lance tabs protruding from the wall of the hexagonal cell which act as anchors for the refractory.
Applications
Applications of hexmesh (hexmetal):

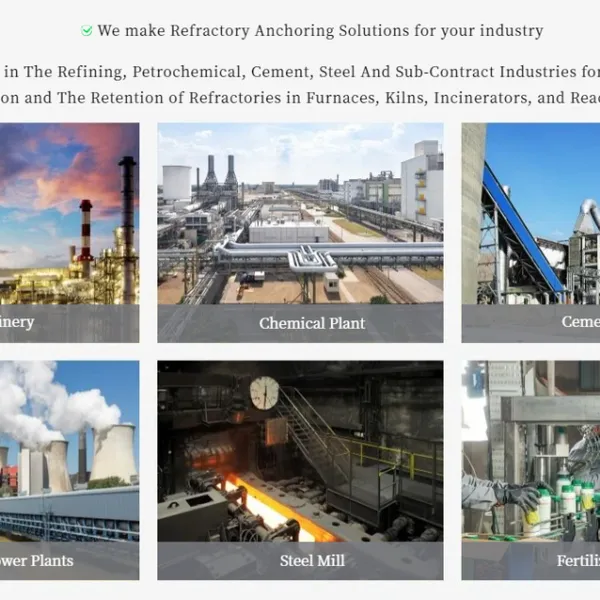

Our hexmesh and refractory anchor products are used to support refractories in the refining, petrochemical, cement, steel andsubcontracting industries to minimize erosion and retain refractory materials in furnaces, kilns, incinerators and reactors.

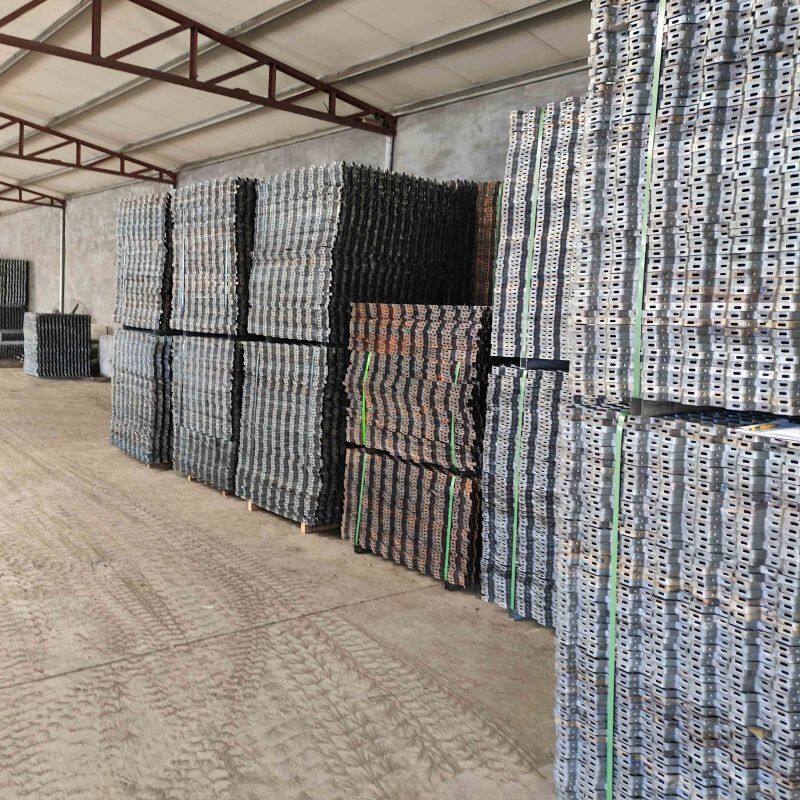

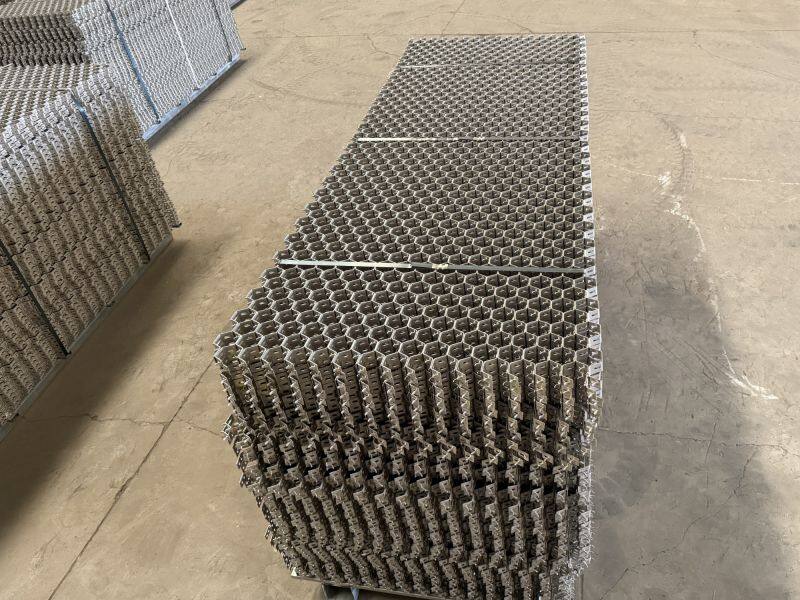

Product Display

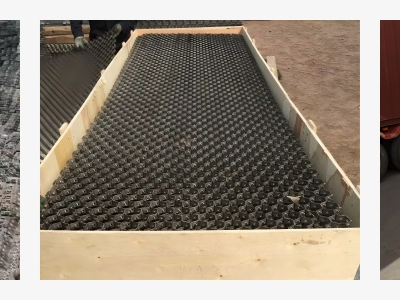

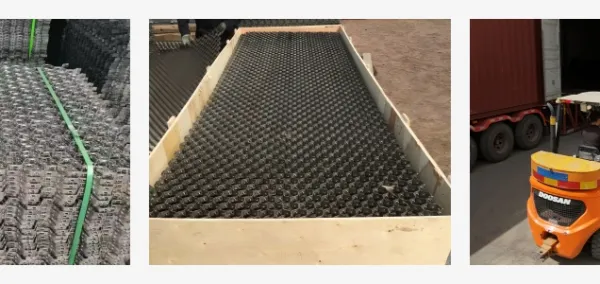

Packing & Delivery

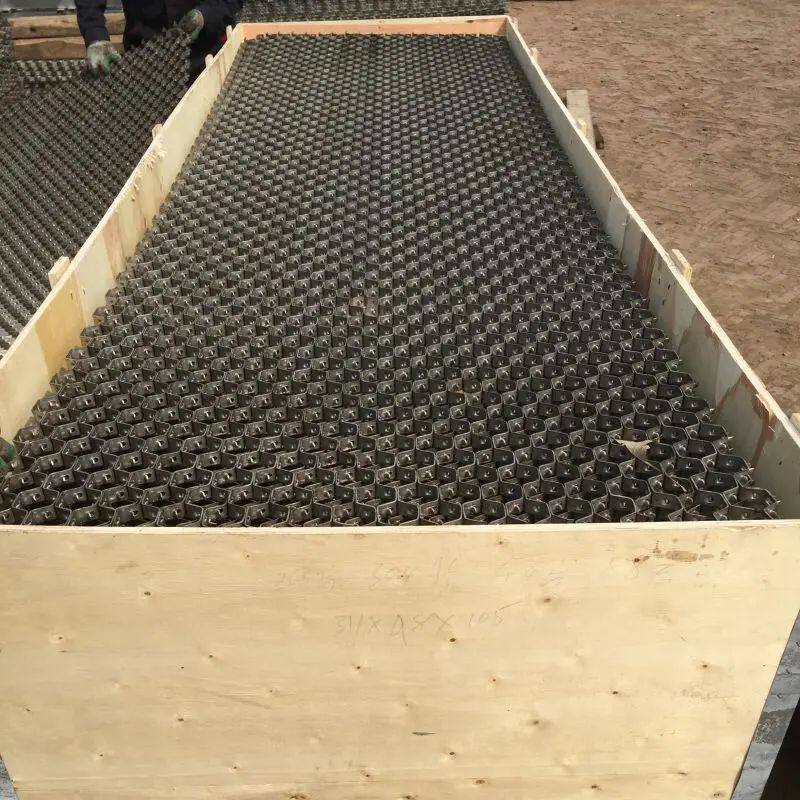

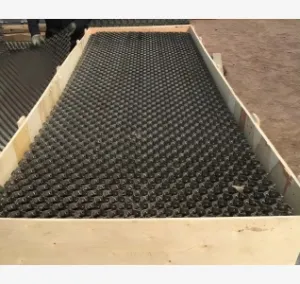

1. Wooden box packaging

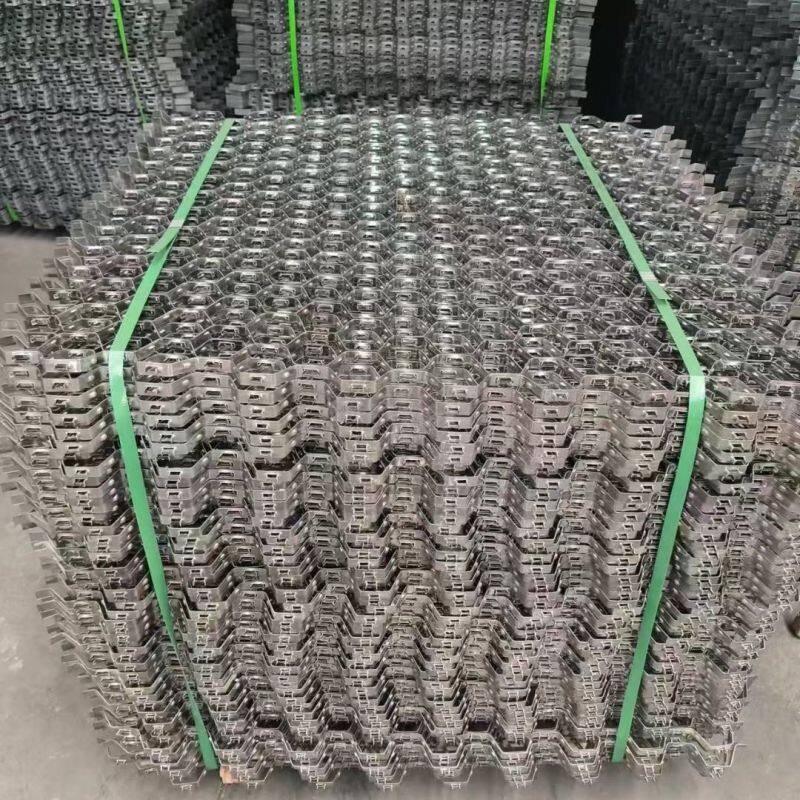

2. Bundle Packaging
3. According to customer's requirements.
Company Profile
What can we do for you?
Give us a call or send us an email and
we will be happy to provide you with technical support and service!

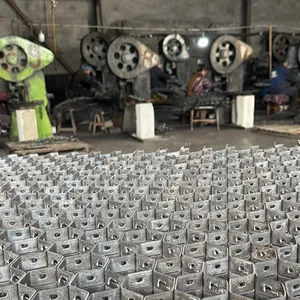

Hebei Longen Wire Mesh Products Co., Ltd. was established in 2015. The company relies on continuous technological innovation andquality improvement to create value for customers. It has established a management system based on ISO 9001 requirements and hasbecome a benchmark enterprise in the industry.
Our excellent manufacturing, service and support ensure that we provide the best solutions to meet the different needs of our customers.
Certification
FAQ
1. Are you a trading company or a manufacturer?
We are a leading manufacturer of hexagonal mesh and fire-resistant anchors. With more than 20 years of design and manufacturing experience, more than 20 production equipments and OEM/ODM services, we can provide high-quality fire-resistant armor systems to new and old customers.
2. What is your minimum order quantity?
We are a factory, there is no minimum order quantity. We will produce 1 square meter for you and sell it to new and old customers at normal price.
3. How to get samples?
We can provide free samples. But the customer will pay the courier fee.
4. What payment methods can you accept?
We usually adopt T/T, L/C, Western Union, PayPal, Money Gram and etc.
5. How long is your delivery time?
If production is required, it is about 20 working days. If it is in stock, it is 3 working days.
6. Can the packaging be customized?
Yes, we can customize the outer package and your company's logo as per your requirements.
