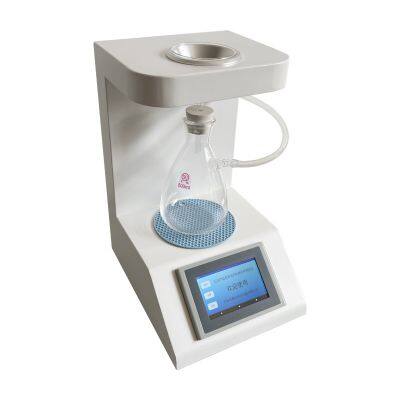

Mechanical Impurity Tester

Mechanical Impurity Tester thumbnail-1
Mechanical Impurity Tester thumbnail-2
Mechanical Impurity Tester thumbnail-3
Mechanical Impurity Tester thumbnail-4
Mechanical Impurity Tester thumbnail-5
Mechanical Impurity Tester photo-1
Mechanical Impurity Tester photo-2
Mechanical Impurity Tester photo-3
Mechanical Impurity Tester photo-4
Mechanical Impurity Tester photo-5
US$ 1700 ≥1 Unit
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Jilin, Jilin, China
Contact Supplier Request Quote Chat Now
Jilin RuiGu Scientific Instruments Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
I. Instrument Overview
The RJZ-1 Mechanical Impurity Tester is designed and manufactured in accordance with GB/T 511-2010 "Standard Test Method for Mechanical Impurities in Petroleum, Petroleum Products and Additives". It is suitable for determining the content of mechanical impurities in various hydrocarbons, heavy oils, lubricating oils, and additives within petroleum products. It can be widely used in electric power, petroleum, chemical industry, commodity inspection, and scientific research institutions.
Equipped with a built-in oil-free maintenance-free vacuum pump and a metal bath thermostatic funnel, the instrument can complete all functions with a single main unit—no external vacuum pump or water bath is required, making it energy-efficient and environmentally friendly.
II. Main Functions and Features

  1. 5-inch color touchscreen with a resolution of 480×272, featuring an aesthetically pleasing and user-friendly human-machine interface.

  2. Adopts a 32-bit microprocessor as the main control core, paired with a new generation of intelligent operating systems.

  3. Utilizes PID temperature control to precisely regulate the temperature of the thermostatic funnel.

  4. Incorporates a built-in oil-free maintenance-free vacuum pump, enabling program-controlled vacuum filtration.

  5. The vacuum pump features a unique structural design: even if oil samples are sucked into the pump, the instrument will not be damaged, reducing unexpected losses.

  6. Compact structure, with a footprint only 15% larger than that of an A4 paper.

III. Technical Specifications
Specification Item Details
Adopted Standard GB/T 511-2010 "Standard Test Method for Mechanical Impurities in Petroleum, Petroleum Products and Additives"
Display 5-inch LCD screen, resolution 480×272
Temperature Control Range Room temperature ~ 99℃
Temperature Control Accuracy ±0.2℃
Resolution 0.1℃
Rated Power 240 W
Overall Dimensions 240×300×400 mm (excluding foot pads)
Weight 6 kg
IV. Operating Conditions

  1. Ambient Temperature: 5℃ ~ 40℃

  2. Relative Humidity:

  3. Input Power Supply: AC 220V ± 10V, 50Hz

Notes on Translation

  1. Standard Number (GB/T 511-2010): Retained in its original form (GB/T = "Guobiao/Tuijian," meaning "National Recommended Standard" in China) to ensure consistency with international technical document conventions. The full standard name is translated to clarify its scope for English readers.

  2. Technical Terms: Professional terms (e.g., "PID temperature control," "vacuum filtration," "metal bath thermostatic funnel") are translated in line with industry practices to maintain accuracy.

  3. Units of Measurement: International standard symbols (mm, kg, W, ℃, Hz) are used, consistent with global technical writing norms. Supplementary explanations (e.g., "excluding foot pads") are added to avoid ambiguity.
