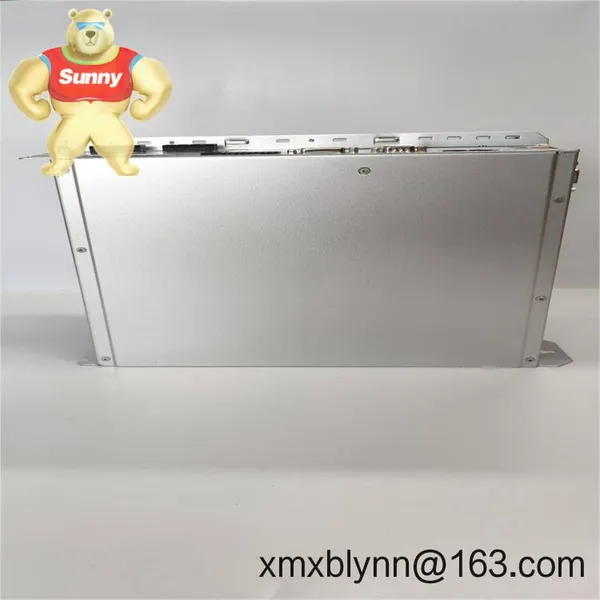

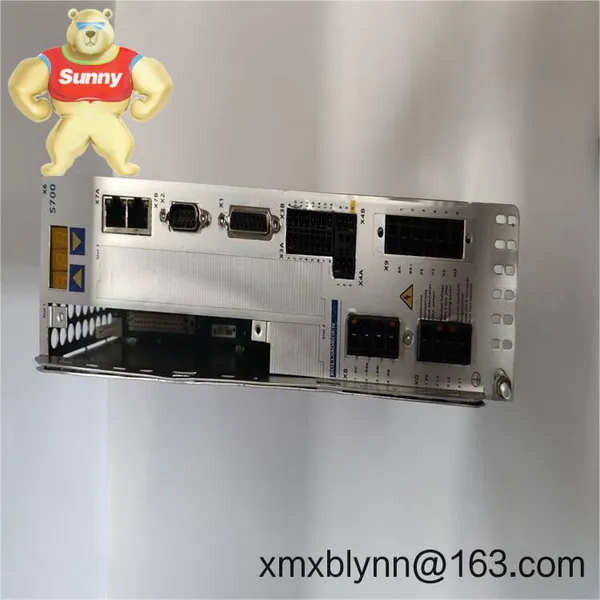

Help CenterKollmorgen S70601-SE – High-Precision Digital Servo Amplifier for Demanding Motion Control
Related Products
-
LAM 810-048219-015 Control PCB Module – Reliable I/O and Control for Lam Research ToolsUS$ 4216.00MOQ: 1 Blade -
LAM 810-810202-013 Multi-Functional Circuit Board Module – OEM Control Board for LAM 810-series ToolsUS$ 4216.00MOQ: 1 Blade
-
Rexroth HCS02.1E-W0054-A-03-NNNN – Compact IndraDrive Converter for Efficient Servo MotionUS$ 3216.00MOQ: 1 Blade
-
LAM 810-073479-215 High‑Speed Circuit Board Module – OEM Plug‑in Control Board for Lam Research ToolsUS$ 1216.00MOQ: 1 Blade
-
Bosch Rexroth CSH01.1C-SE-EN2-NNN-NNN-NN-S-XP-FW – Multi-Functional IndraDrive Control Section for Smart, High-Performance Servo SystemsUS$ 2216.00MOQ: 1 Blade
Warranty: 365 days
Lead time: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
High-precision digital control – Advanced current, velocity, and position loops help achieve smooth motion and tight accuracy, typically with robust disturbance rejection.
SERCOS real-time networking (SE variant) – Enables cycle-synchronous control and coordinated multi-axis motion; ideal when deterministic timing matters.
Wide feedback compatibility – Commonly supports resolver, incremental TTL/HTL, and serial encoders like EnDat, Hiperface, or BiSS (exact options depend on the variant).
Flexible command interfaces – Analog ±10 V, digital I/O, and motion bus control let you retrofit legacy machines or build modern Ether-based architectures.
Auto-tuning and notch filters – Speeds up commissioning and helps suppress resonances in lighter frames or belt-driven axes.
Integrated safety (typically STO) – Safe Torque Off is commonly available on S700 drives to simplify safety compliance; exact safety level depends on the build.
Compact booksize housing – Saves cabinet width and keeps heat dissipation manageable in tightly packed enclosures.
Regenerative handling – Built-in DC bus connections with provision for external braking resistors to manage decel energy on high-inertia moves.
| Brand / Model | Kollmorgen S70601-SE (SERVOSTAR S700 Series) |
| HS Code | 850440 (Static converters / servo drive) |
| Power Requirements | AC mains, 50/60 Hz; commonly in 230/400/480 VAC classes (exact rating is model dependent for S70601-SE) |
| Rated Continuous Current | Typically around 6 Arms for S706-class drives (verify per nameplate) |
| Operating Temperature | 0 to +40 °C without derating (up to ~+50/55 °C with derating, depending on variant) |
| Signal I/O | Analog ±10 V command, digital inputs/outputs, motor brake control, motor temperature input (PTC/NTC), encoder/resolver feedback (option dependent) |
| Communication Interfaces | SERCOS (SE variant); other S700 variants may offer EtherCAT, CANopen, or PROFIBUS |
| Installation Method | Panel/cabinet mounting (booksize drive); grounded metallic backplate recommended |
The S70601-SE is a versatile choice for both new builds and retrofits where precision and repeatability are critical:
Packaging and converting lines – register control, flying knife, and multi-axis sealing heads
Electronics assembly – pick-and-place, screwdriving, and small gantry axes
Machine tools and grinding – auxiliary axes, feeders, wheel dressers
Testing/inspection equipment – motion profiles with tight velocity ripple requirements
Printing and labeling – tension control, web handling, and synchronized rolls
Reliability in production – The S700 family has a good reputation for stable operation under continuous duty; in many cases, heat and EMI management are easier than expected thanks to the booksize design.
Compatibility and retrofit ease – Works well with Kollmorgen AKM/AKM2G motors, and typically accepts common encoder types used by other brands.
Lower total cost – Flexible I/O and tuning reduce commissioning hours. Being able to reuse existing motors/feedback (where compatible) often saves budget.
Technical support – Parameter sets, auto-tuning, and diagnostic tools streamline troubleshooting; remote assistance is straightforward once traces are captured.
Cabinet & environment – Mount vertically on a grounded metal backplate inside an IP-rated cabinet. Provide clearance above/below for airflow. Keep ambient within 0–40 °C for full performance.
Power & wiring – Use appropriately rated circuit protection and an EMC line filter. Shielded motor/feedback cables with 360° grounding at the drive end are strongly recommended.
Safety – Implement STO and interlocks per your risk assessment. Verify safe stop behavior during commissioning before running automatic modes.
Commissioning tips – Start with motor identification and basic auto-tuning, then add notch filters if you see structural resonances. Log traces to validate following error under load.
Routine maintenance – Quarterly dust cleaning, connector re-seating checks, and fan/air-path inspection. Keep firmware aligned with your PLC/motion stack; update only after a backup.
CE conformity (EMC/Low Voltage) – typical for S700 series
UL/cUL listing – commonly available on S700 drives
RoHS compliance
Manufacturer warranty support (12 months as stated above)
Kollmorgen AKM/AKM2G servo motors with compatible feedback (resolver, EnDat, Hiperface, or BiSS)
Pre-assembled motor power, brake, and feedback cables with proper shielding
EMC mains filter, line reactor (if required by installation), and external braking resistor sized for your decel profile
SERCOS fiber/copper media and motion controller supporting the required cycle time
A maintenance supervisor shared with us that swapping an older analog drive for an S706 on a labeler cut their commissioning time in half—the built-in auto-tune and a single notch filter cleaned up the oscillation they’d been chasing for days.
