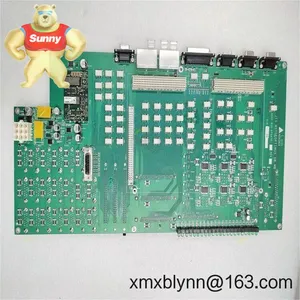

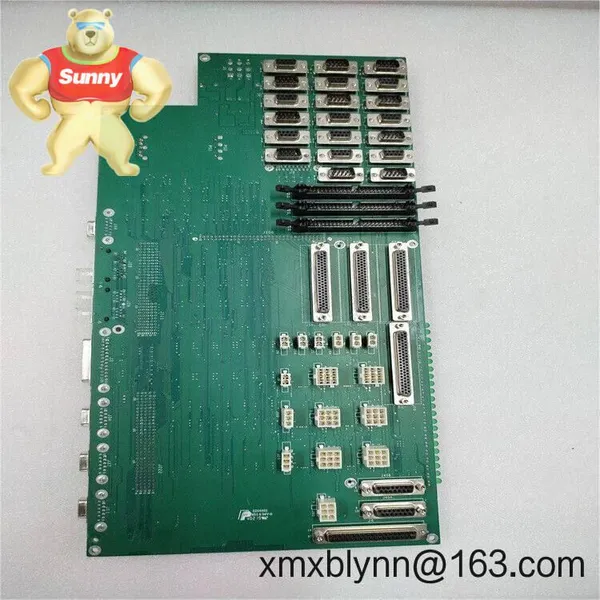

Help CenterLAM 810-073479-215 High‑Speed Circuit Board Module – OEM Plug‑in Control Board for Lam Research Tools
Related Products
-
Bosch Rexroth CSH01.1C-SE-EN2-NNN-NNN-NN-S-XP-FW – Multi-Functional IndraDrive Control Section for Smart, High-Performance Servo SystemsUS$ 2216.00MOQ: 1 Blade -
Bosch Rexroth HDS03.2-W075N-HS12-01-FW (R911190008) – Booksize Drive Controller for DIAX04 Multi-Axis Servo SystemsUS$ 2216.00MOQ: 1 Blade
-
Kollmorgen S20360-SRS High‑Speed Digital AC Servo Drive – Precise, Compact Control for Demanding MotionUS$ 216.00MOQ: 1 Blade
-
DEIF CM-2 Control Module – Compact Controller for Generator and Power Management ApplicationsUS$ 3216.00MOQ: 1 Blade
-
DEIF DLQ144-PC-NB Multi-Function Controller – Reliable 144 mm Panel Controller for Gensets and SwitchgearUS$ 216.00MOQ: 1 Blade
Warranty: 365 days
Lead time: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
810‑series backplane compatibility: Designed to plug into the Lam 810 architecture for fast replacement and minimal re‑wiring.
High‑speed signal handling: Supports fast digital signaling and deterministic timing paths used in critical tool sequences.
OEM‑grade integration: Firmware and I/O mapping align with Lam tool conventions, which typically reduces commissioning time.
Robust ESD and noise behavior: Board design and grounding points help maintain signal integrity inside crowded control cabinets.
Service‑friendly layout: Status indicators and labeled connectors simplify field checks and module swaps.
Traceable sourcing: Units are inspected and function‑tested before shipment, with serial/PN traceability.
| Brand / Model | LAM 810-073479-215 High-Speed Circuit Board Module |
| HS Code | 8538.90 (Parts suitable for apparatus of 8535/8536/8537) |
| Power Requirements | 24 VDC nominal from tool/backplane; power draw typically low (board‑level), dependent on revision and load |
| Dimensions & Weight | Plug‑in PCB for Lam 810‑series slot; lightweight board module (approx |
| Operating Temperature | 0–50 °C in control cabinet; 15–35 °C typical fab ambient |
| Signal I/O Types | High‑speed digital lines and backplane I/O; differential pairs utilized where required by tool design |
| Communication Interfaces | Backplane bus interface per Lam 810 architecture; service connection methods vary by board revision |
| Installation Method | Front‑insert, plug‑in module; secures to chassis with panel screws; requires ESD‑safe handling |
Commonly used in Lam Research semiconductor equipment across front‑end processes. You’ll see modules like this supporting:
Wafer handling/robotics sequencing where tight timing is essential
Vacuum and gas‑box I/O orchestration (interlocks, valves, mass‑flow triggers)
Chamber subsystem coordination (sensors, heaters, shutters), depending on tool configuration
High‑speed digital interfacing with other 810‑series boards on the backplane
One thing I appreciate is how these boards tend to reduce troubleshooting time. A maintenance lead at a 300‑mm fab told us a drop‑in swap restored a handler in under 30 minutes because the I/O mapping matched their existing revision.
Reliability: OEM‑grade hardware helps stabilize uptime in high‑throughput tools.
Compatibility: Built for the Lam 810 platform, which in many cases avoids custom harnessing or requalification.
Cost & lead time: Faster availability versus factory lead times, often reducing costly tool idle.
Technical support: We can match revisions/EPROM notes and provide test reports so maintenance teams can install with confidence.
Cabinet & environment: Install in a clean, ventilated control cabinet meeting standard SEMI fab conditions; keep ambient 15–35 °C and non‑condensing humidity.
ESD safety: Use a grounded wrist strap and antistatic mat; handle by edges only; store in ESD‑safe packaging.
Wiring/backplane: Power down and discharge; align board rails and connectors; tighten front‑panel screws to avoid vibration‑induced intermittents.
Routine care: Quarterly visual inspection for connector wear or contamination; clean edge connectors with approved wipes; verify firmware/revision alignment during PM.
Diagnostics: Check on‑board status LEDs and tool logs after install; if signals seem noisy, confirm grounding points and backplane seating.
Quality system: Supplied from facilities operating to ISO 9001 QMS principles; each unit function‑tested before shipment.
Compliance: CE/UL apply at the tool/system level; board‑level RoHS status can vary by revision—confirmable by part/serial on request.
Warranty: 365‑day warranty coverage against manufacturing defects.
810‑series backplane/chassis slot hardware (replacement panel screws and card guides)
Shielded backplane connectors and harnesses matched to the tool revision
ESD‑safe storage box and moisture‑barrier bag for spares strategy
