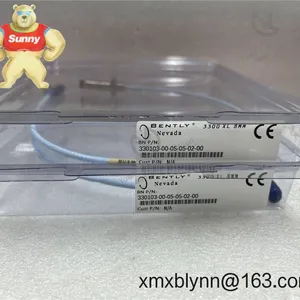

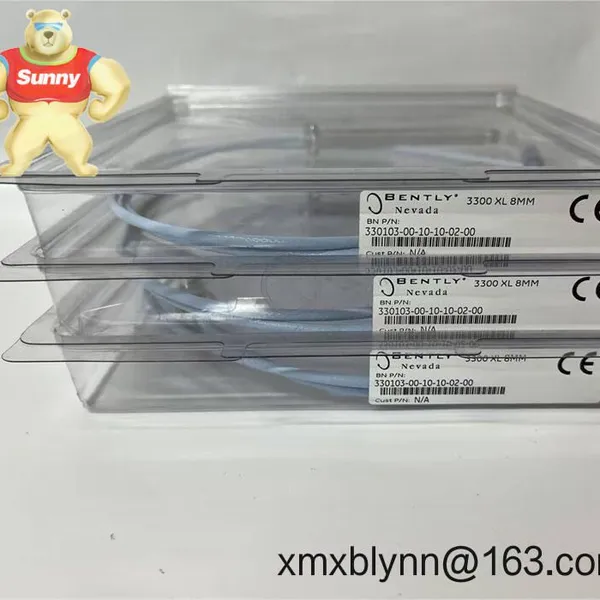

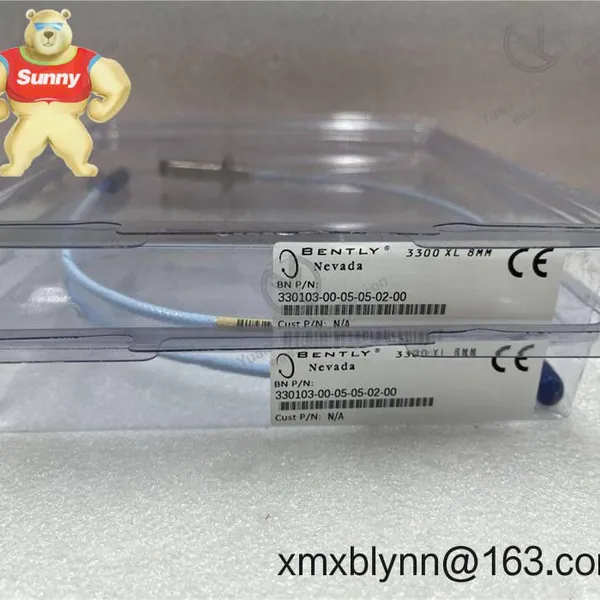

Help CenterBently Nevada 330103-05-30-10-02-00 – Extension Cable for 3300 XL Proximity Transducer Systems
Related Products
-
Bently Nevada 330104-00-05-05-01-05 Proximity Transducer – Non‑contact Shaft Vibration and Position Sensing for Critical MachineryUS$ 216.00MOQ: 1 Blade -
Bently Nevada 330104-05-11-10-02-CN – 8 mm Proximity Probe for 3300 XL Transducer SystemsUS$ 216.00MOQ: 1 Blade
-
BENTLY 330180-91-00 Proximitor Preamplifier – Eddy-current Proximity Sensor Conditioning for Reliable Shaft Vibration and PositionUS$ 216.00MOQ: 1 Blade
-
Bently Nevada 330104-11-22-10-02-CN – 3300 XL 5 mm Proximity Probe for Vibration and Shaft Position MonitoringUS$ 216.00MOQ: 1 Blade
-
Bently Nevada 330876-03-50-00-00 50 mm Proximity Probe – Long‑reach Non-contact Sensing for Critical Rotating MachineryUS$ 216.00MOQ: 1 Blade
Warranty period: 365 days
Delivery time: 1 week for in-stock items; no more than one month at the latest
Payment: 50% advance payment, full payment for delivery
Express delivery methods: FedEx, UPS, DHL
5 m system extension (per “-05”): Helps maintain the specified 3300 XL system length for accurate eddy-current measurements.
OEM-graded compatibility: Designed for use with Bently Nevada 3300 XL 8 mm probes and 3300 XL Proximitor sensors.
Stable signal integrity: Coaxial construction supports low‑noise transmission between probe and Proximitor.
Field-proven durability: Suitable for routed installs in machine skids and panels; typically withstands plant vibration and oil mist environments.
Supports API 670 system compliance: When paired with matching 3300 XL probes and Proximitor sensors, it supports API 670‑compliant installations.
Drop‑in replacement: Minimizes rework during turnarounds; no splicing or field termination needed.
| Brand / Model | Bently Nevada 330103-05-30-10-02-00 |
| Product Type | 3300 XL proximity transducer extension cable (8 mm system) |
| HS Code | 8544.20 (Coaxial cable and other coaxial electric conductors) |
| Power Requirements | None (passive cable; powered by Proximitor system) |
| Length (per code “-05”) | 5 m |
| Signal Type | Coaxial link between probe and Proximitor (eddy‑current transducer system) |
| Compatibility | Bently Nevada 3300 XL 8 mm probes and associated 3300 XL Proximitor sensors |
| Installation Method | Routed from probe to Proximitor; secured in trays/conduits; no field splicing |
Typically used across oil & gas, petrochemical, power generation, pulp & paper, and steel plants—anywhere you need continuous condition monitoring. Common machines include steam and gas turbines, centrifugal compressors, large pumps, fans, and generators. Maintenance teams use these cables during probe changeouts or when standardizing to 5 m systems across a unit.
A customer note that stuck with me: “We standardized on -05 cables with matching probes, and our alignment and gap‑set checks became predictable. Swaps now take under 30 minutes per bearing housing.”
Reliability: Stable signal path that preserves transducer linearity and calibration, minimizing nuisance alarms.
Compatibility assurance: Built for the 3300 XL 8 mm ecosystem; reduces risk of mixed or mismatched lengths.
Maintenance efficiency: Pre‑terminated cable shortens outage tasks and avoids field termination errors.
Cost control: Prevents repeat calibration work and unplanned rework, which in many cases is the bigger cost driver than the part itself.
Technical support: We can help verify your total system length (probe + cable) to match your Proximitor settings.
Environment: Route in clean, dry paths; avoid sharp bends and hot surfaces. Maintain bend radius per good instrumentation practice.
Cabinet standards: Place the Proximitor in a ventilated cabinet or junction box; provide proper grounding.
Wiring: Do not splice the 330103 cable. Use OEM connectors; keep connector faces clean and dry.
Separation: Separate from high‑voltage cables and VFD outputs to minimize electromagnetic interference.
System length check: Confirm total length (probe + extension cable) matches your Proximitor setup to maintain sensitivity and linear range.
Routine checks: Inspect jacket condition during outages, verify gap voltage and vibration trend values after any cable replacement.
Manufactured to OEM standards for the 3300 XL proximity transducer system
Supports API 670 system compliance when used with matching 3300 XL components
Typical OEM quality management: ISO 9001; regional CE/UKCA and RoHS conformity may apply
Warranty: 365 days
Note: The option string “-05-30-10-02-00” defines length and connector/sheath options specific to this build. The 5 m length is clear from “-05”; the other options describe configuration details (e.g., connector orientation or jacket style). If you’re matching an installed base, sharing your current part code helps us confirm a like‑for‑like replacement.
