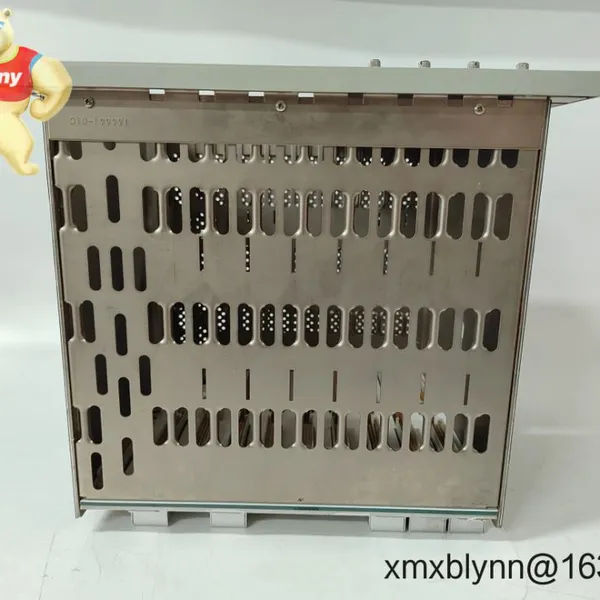

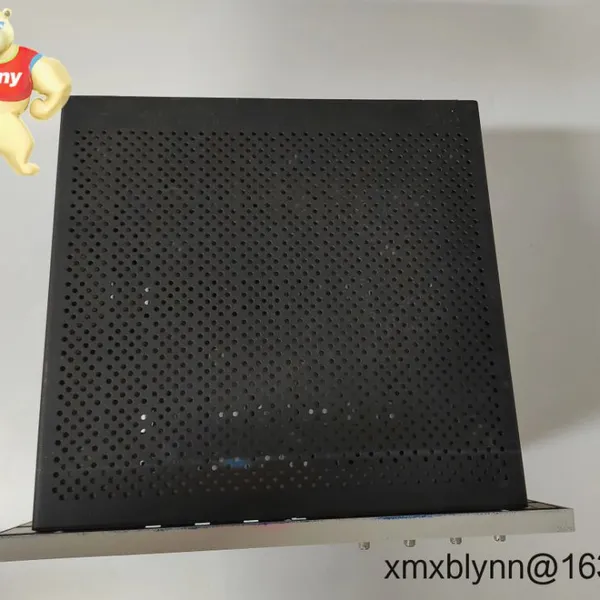

Help CenterBently Nevada 3500/05-02-04-00-00-00 System Rack — Chassis for 3500 Machinery Protection Modules
Related Products
-
Bently Nevada 3500/22M (P/N 288055-01) – Transient Data Interface for 3500 Machinery Protection RacksUS$ 3216.00MOQ: 1 Blade -
BENTLY 3500/91M EGD Communication Gateway – Deterministic Ethernet Link From Your 3500 Rack to GE Control NetworksUS$ 3216.00MOQ: 1 Blade
-
BENTLY 3500/42M 176449-02 — Multi-channel Proximitor/Seismic Monitor for Critical Machinery ProtectionUS$ 3216.00MOQ: 1 Blade
-
Bently Nevada 3500/92-01-01-00 Communication Gateway Module – Ethernet Bridge for 3500 Rack Data to DCS/SCADAUS$ 3216.00MOQ: 1 Blade
-
Bently Nevada 3500/70 Expansion Monitoring Module – Real-time Turbine Expansion Measurement and Machinery ProtectionUS$ 3216.00MOQ: 1 Blade
Warranty: 365 days
Lead time: 1 week for in‑stock items; no more than 1 month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
Purpose-built chassis for 3500 series – Houses power supplies, TDI, monitors, relays, and communication modules in a structured backplane.
Modular and scalable – Supports common configurations for 7‑slot or 14‑slot racks; the -02 option set here is consistent with a standard factory configuration.
Redundant power capable – Accepts 3500/15 AC or DC power supplies, including redundant pairs for high availability.
Centralized data interface – Works with 3500/22 TDI for plant network connectivity and historian links.
Flexible communications – Add 3500/90 or 3500/91 communication gateways for Modbus RTU/TCP or EGD to DCS/PLC systems.
Industrial-grade build – Rugged rack mechanics, reliable card guides, and grounded backplane help in high‑vibration panels.
Service friendly – Front-access module insertion/removal and clear slot indexing reduce downtime during swaps.
| Brand / Model | Bently Nevada 3500/05-02-04-00-00-00 (System Rack) |
| HS Code | 9032.90 (typically declared as parts of automatic regulating/control instruments) |
| Power Requirements | Via 3500/15 power supply module: AC 85–264 VAC, 47–63 Hz or DC ~18–36 VDC (redundant supply supported) |
| Dimensions & Weight | Form factors for 7‑slot and 14‑slot; 19‑inch EIA width options, height typically 3U (7‑slot) or 6U (14‑slot); depth and weight depend on module population |
| Operating Temperature | -30 °C to +65 °C (typical for 3500 system hardware) |
| Signal I/O Types | Module-dependent: vibration/position inputs, Keyphasor, buffered BNC outputs, relay contacts, 4–20 mA outputs (per installed monitor/relay cards) |
| Communication Interfaces | Via 3500/22 TDI Ethernet; optional 3500/90 (Modbus RTU/TCP) or 3500/91 (EGD) gateway modules |

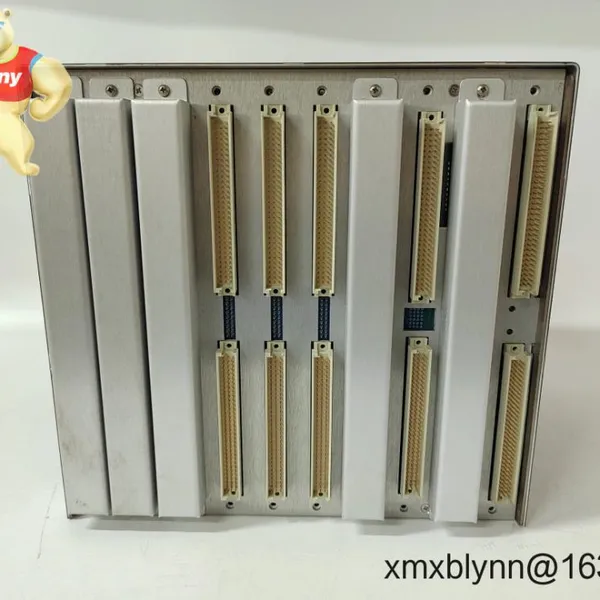

| Installation Method | 19‑inch rack‑mount or panel‑mount configurations; front‑insert modules, rear I/O terminations |
The 3500/05 rack underpins critical machinery protection in refineries, petrochemical plants, power generation (steam, gas, hydro), steel/cement lines, pulp & paper, and pipeline compressor stations. From my experience, it’s most often chosen where API‑670 style monitoring and trip logic are required and where DCS integration via Modbus or EGD is a must.
Large compressors, turbines, and motors (vibration and axial position monitoring)
Pumps and blowers with shutdown relays tied to permissives
Units needing historian connectivity and condition data to PI or similar
Proven reliability – The 3500 platform is widely used; spares and field know‑how are easy to source in most regions.
Compatibility – Seamlessly pairs with 3500/22 TDI and 3500/90/91 gateways for plant integration without custom hardware.
Lifecycle savings – Modular swaps reduce MTTR; you can expand channels without replacing the entire system.
Risk reduction – Redundant power supply support and robust backplane improve availability during upset conditions.
A maintenance lead at a Gulf Coast refinery told us their move to a redundant 3500/05 rack “cut nuisance trips to near zero” after they cleaned up grounding and moved to dual supplies—seems to be a common outcome when the rack is installed to spec.
Installation & MaintenancePanel/cabinet – Use a clean, ventilated enclosure; follow EIA‑310 standards for rack mount. Keep ambient within spec and allow cable bend radius at the rear.
Power & grounding – Use a 3500/15 AC or DC supply; for critical trains, add a redundant second 3500/15. Bond the rack to a low‑impedance ground to minimize noise.
Wiring – Separate sensor and power cabling; shield and ground per Bently Nevada wiring practices. Maintain correct proximity probe extension cable lengths.
Safety – De‑energize before inserting/removing modules. Verify relay logic and trip setpoints after any module change.
Routine upkeep – Periodic terminal torque checks, dust removal with dry air, firmware updates for TDI/gateways during planned outages, and verification of channel calibration.
Typically CE and UL/cUL compliant for industrial control equipment
RoHS conformity in many shipments; documentation available on request
Many 3500 system builds are suitable for Class I, Div 2 / ATEX Zone 2 when installed per guidelines (module-dependent)
Manufacturer’s standard warranty applies; we provide a 365‑day warranty on this shipment
If your scope is the gateway, consider:
3500/90 Communication Gateway – Modbus RTU and Modbus/TCP for DCS/PLC integration.
3500/91 EGD Gateway – Ethernet Global Data for GE control systems.
We can match the exact option codes to your installed rack and TDI firmware. A quick photo of the nameplates or a module list usually speeds things up.
