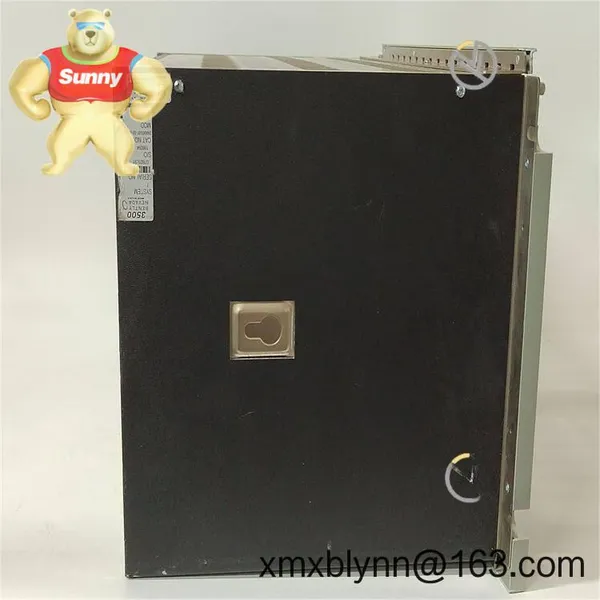

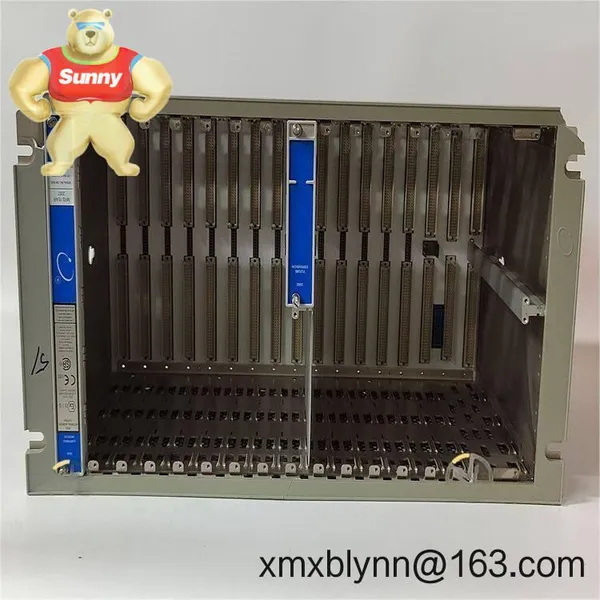

Help CenterBently Nevada 3500/05-01-02-00-00-01 System Monitor – Core Control for the 3500 Condition Monitoring Rack
Related Products
-
Bently Nevada 3500/05-01-02-00-00-00 System Rack (Framework Module) – Backplane & Housing for 3500 Machinery ProtectionUS$ 216.00MOQ: 1 Blade -
Bently Nevada 3500/20-01-01-00 Rack Interface Module — Framework Communications for the 3500 Protection SystemUS$ 3216.00MOQ: 1 Blade
-
Bently Nevada 3500/05-02-04-00-00-00 System Rack — Chassis for 3500 Machinery Protection ModulesUS$ 3216.00MOQ: 1 Blade
-
Bently Nevada 3500/22M (P/N 288055-01) – Transient Data Interface for 3500 Machinery Protection RacksUS$ 3216.00MOQ: 1 Blade
-
BENTLY 3500/91M EGD Communication Gateway – Deterministic Ethernet Link From Your 3500 Rack to GE Control NetworksUS$ 3216.00MOQ: 1 Blade
Warranty: 365 days
Delivery time: typically 1 week if in stock, no more than one month at the latest
Payment terms: 50% advance payment; full payment before delivery
Express options: FedEx, UPS, DHL
Rack Health Supervision – Continuously monitors overall 3500 rack status and “OK” integrity so faults are surfaced quickly.
Alarm Logic Coordination – Implements system-level functions such as Trip Multiply and Bypass for managed shutdown behavior during startup or maintenance.
Front-Panel Status Indication – Clear LED indicators simplify at-a-glance checks during rounds; useful when the network is not your first stop.
Hot-Swappable Design – Typically replaceable without taking down the entire rack, reducing outage time.
Seamless with 3500 Architecture – Works with 3500/22M TDI, 3500/15 power supplies, and the full range of 3500 monitoring and relay modules.
| Brand / Model | Bently Nevada 3500/05-01-02-00-00-01 (System Monitor) |
| HS Code | 9032.89 (Automatic regulating or controlling instruments and apparatus, other) |
| Power Requirements | Powered from the 3500 rack backplane via 3500/15 power supply; no external power connection |
| Dimensions & Weight | Single-slot 3500 module; standard rack card depth; lightweight module (approx. a few hundred grams) |
| Operating Temperature | Typically -30 to +65 °C (depends on rack and installation environment) |
| Signal Input/Output Types | System-level status and control functions (OK status, Trip Multiply, Bypass); no transducer inputs on this card |
| Communication Interfaces | None on this module; rack communications provided via 3500/22M TDI (Ethernet) when installed |
| Installation Method | Hot-swappable; fits the designated System Monitor slot in the 3500 rack (19-inch rack or panel-mounted frame) |
In many cases this module finds its place anywhere a 3500 rack protects rotating assets:
Steam and gas turbines in power generation (start-up Trip Multiply is particularly handy)
Compressors in oil & gas midstream and refining units
Large pumps, fans, blowers in chemical plants and water facilities
Paper machines and critical balance-of-plant machinery in heavy industry
Reliability – A mature, field-proven system card that stabilizes rack behavior; fewer nuisance trips when set up correctly.
Compatibility – Designed to work with the broader 3500 ecosystem (proximitor, seismic, temperature, and relay modules) without extra engineering.
Reduced Downtime – Hot-swap capability typically means swap/restore in minutes during a planned window.
Lifecycle Support – Long product availability and strong parts ecosystem help maintenance teams standardize spares.
A maintenance supervisor at a gas compression station told us they swapped a 3500/05 during a short outage; the rack came back healthy immediately, and they kept Trip Multiply active for a controlled startup. That kind of practical confidence seems to be why many plants stick with the 3500 platform.
Installation & MaintenanceEnvironment – Install the 3500 rack in a clean, ventilated cabinet (19-inch), with adequate clearance for airflow. Maintain ambient conditions within the module’s temperature rating.
Wiring & Grounding – Ensure proper rack grounding; follow Bently Nevada wiring practices for alarm and relay circuits. Avoid mixed ground references.
Hot Swap – The 3500/05 is typically hot-swappable; still, coordinate with operations, set Bypass/Trip Multiply appropriately, and observe ESD precautions.
Routine Checks – Periodically verify front-panel LEDs, exercise Bypass/Trip Multiply during scheduled tests, and confirm alarm logic via your 3500/22M connection.
Firmware & Records – Keep firmware harmonized across the rack where applicable, document configuration baselines, and back up settings after any change.
CE compliant
UL/cUL for industrial control equipment (typical for 3500 modules)
RoHS adherence
Manufacturer’s warranty supported; our warranty coverage: 365 days
3500/22M TDI – Rack data interface for configuration and Ethernet connection to condition monitoring software.
3500/15 Power Supply – AC or DC power supply options for the rack backplane.
3500/32M Relay Module – Alarm and danger relays for shutdown and annunciation.
3500/42M Proximitor/Seismic Monitor – Vibration inputs for shafts, bearings, and casing measurement.
3500/60 – Temperature monitoring for essential thermal points.
Note: The 3500/05 does not replace sensor or relay functionality; it coordinates and supervises them. For networking and data acquisition, pair it with a 3500/22M TDI and the appropriate monitoring cards for your assets.
