DWB Air Conditioning System Pump
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Cast Iron
Application:
Other, Booster pump
Structure:
Single-stage Pump
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HES Permanent Magnet Variable Frequency Shield PumpNegotiableMOQ: 50 Pieces -
MES Permanent Magnet Variable Frequency Shield PumpNegotiableMOQ: 50 Pieces
-
HC HOT WATER PUMPNegotiableMOQ: 50 Pieces
-
MH Series Centrifugal PumpsNegotiableMOQ: 50 Pieces
-
JET-S Series Self-priming PumpNegotiableMOQ: 50 Pieces
Material
Cast Iron
Application
Other, Booster pump
Structure
Single-stage Pump
Theory
Other, Hot Water Pump
Power
Electric
Industry
Other, Household water supply
Performance
Other, Household pumps
Max.Head
Other, 17m
Max.Capacity
Other, 30m³/h
Start Up
Electric Pump
Type
Other, Household pumps
Media
Other, clear water
Driving Type
Motor

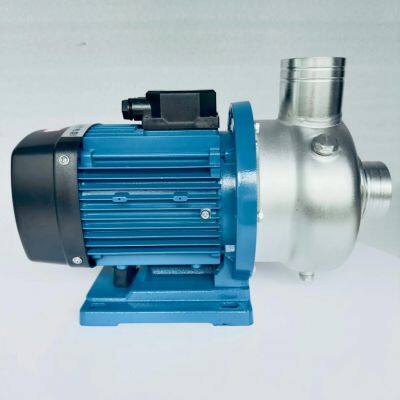

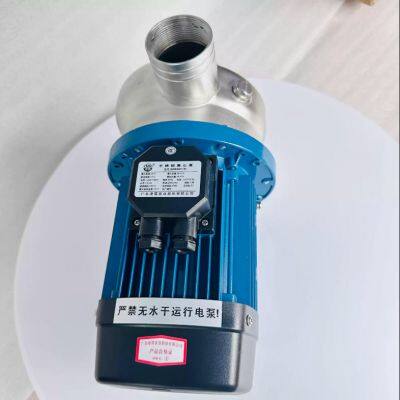

DWB Air conditioning system pump
Features
Overflow parts and shaft are made of stainless steel(304 or 316);
Volute pump body, hydraulic expansion technology, efficient, compact and firm.
Mechanical shaft seal, safe and reliable.
Single phase motor is equipped with USA Tl thermal protector.
Working conditions
Medium temperature：
Standard model：-20℃~+70℃
High temperature：-20℃~+104℃
Environmental temperature:≤+50℃
Max. working pressure:0.3MPa
| Model | Power(P2) kW |
Amps | Rated head (m) |
Rated flow (m³/h) |
DNA | DNM | G.W（KG） | Packing size(mm ) | |
| 220V/50Hz | 380V150Hz | ||||||||
| DWB50/025(T) | 0.25 | 2.0 | 0.7 | 12 | 3 | G1 ¼ | G1 | 6.4 | 335x195x235 |
| DWB50/037(T) | 0.37 | 2.4 | 1.0 | 14 | 3 | G1 ¼ | G1 | 6.4 | 335x195x235 |
| DWB250/055(T) | 0.55 | 3.8 | 1.4 | 7.5 | 15 | G1 ½ | G1 ½ | 8.7 | 380x205x275 |
| DWB250/075(T) | 0.75 | 5.2 | 1.8 | 11 | 15 | G1 ½ | G1 ½ | 9.8 | 380x205x275 |
| DWB250/100(T) | 1.0 | 6.2 | 2.4 | 12 | 14 | G1 ½ | G1 ½ | 10.7 | 380x205x275 |
| DWB300/1.1(T) | 1.1 | 7.0 | 2.6 | 14.5 | 18 | G2 | G2 | 16 | 430x250x325 |
| DWB300/1.5(T) | 1.5 | 9.2 | 3.5 | 17 | 18 | G2 | G2 | 17.6 | 430x250x325 |
| DWB500/1.5(T) | 1.5 | 9.2 | 3.5 | 10 | 30 | G2 | G2 | 17.6 | 430x250x325 |
| DWB500/2.2(T) | 2.2 | 14 | 4.9 | 15 | 30 | G2 | G2 | 20 | 475x250x325 |
| DWB500/3.0T | 3.0 | - | 6.3 | 17 | 30 | G2 | G2 | 23.8 | 490x250x325 |
