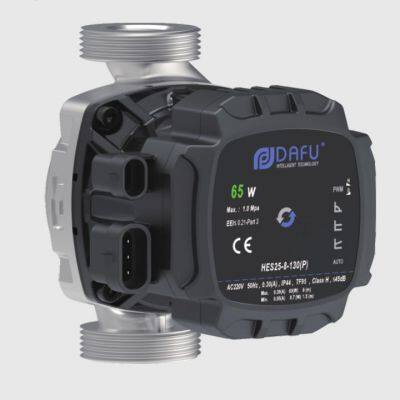

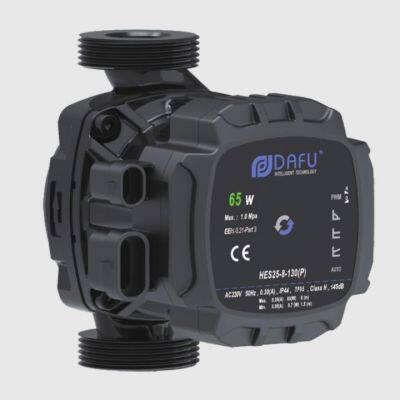

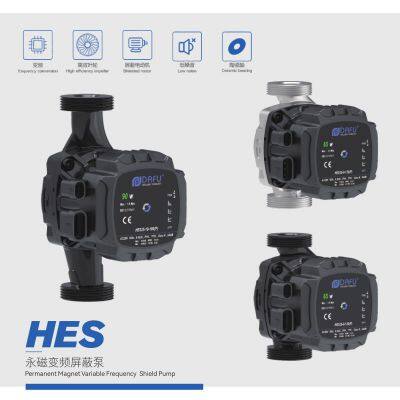

HES Permanent Magnet Variable Frequency Shield Pump
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Cast Iron
Application:
Other, Booster pump
Structure:
Single-stage Pump
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MES Permanent Magnet Variable Frequency Shield PumpNegotiableMOQ: 50 Pieces -
HC HOT WATER PUMPNegotiableMOQ: 50 Pieces
-
MH Series Centrifugal PumpsNegotiableMOQ: 50 Pieces
-
JET-S Series Self-priming PumpNegotiableMOQ: 50 Pieces
-
ISH and ISHP Structured Compact Horizontal Centrifugal PumpNegotiableMOQ: 1 Piece
Material
Cast Iron
Application
Other, Booster pump
Structure
Single-stage Pump
Theory
Other, Hot Water Pump
Power
Electric
Industry
Other, Household water supply
Performance
Other, Household pumps
Max.Head
Other, 10m
Max.Capacity
Other, 4.6m³/h
Start Up
Electric Pump
Type
Other, Household pumps
Media
Other, clear water
Driving Type
Motor
HES Permanent Magnet Variable Frequency Shield Pump
Product overview
Supply voltage: 1x230V-50V60HZ
Head rate,Hmax: 4-7-8-10m
Flow rate,Qmax:2.5-4.6m/h
Liquid temperature: +2°Cto +95°C (TF95)
Power Range:25-45-65-90W
Ambient temperature: 0°C to +40”C
Enclosure protection class: lP44
With PWM function: PWM-H & PWM-D
Insulation class: H
Technical Parameter
| Product Model | Maximum Flow （m³/h） |
Maximum Head (m) |
Inlet/Outlet Diameter (in) |
Power (w) |
| HES40-4-130 | 2.7 | 4 | G1 1/2" | 25 |
| HES40-4-180 | 2.7 | 4 | G1 1/2" | 25 |
| HES50-4-180 | 2.8 | 4 | G2" | 25 |
| HES40-7-130 | 3.2 | 7 | G1 1/2" | 45 |
| HES40-7-180 | 3.2 | 7 | G1 1/2" | 45 |
| HES50-7-180 | 3.4 | 7 | G2" | 45 |
| HES40-8-130 | 4.1 | 8 | G1 1/2" | 65 |
| HES40-8-180 | 4.1 | 8 | G1 1/2" | 65 |
| HES50-8-180 | 4.3 | 10 | G2" | 65 |
| HES40-10-130 | 4.4 | 10 | G1 1/2" | 90 |
| HES40-10-180 | 4.4 | 10 | G1 1/2" | 90 |
| HES50-10-180 | 4.4 | 10 | G2" | 90 |
