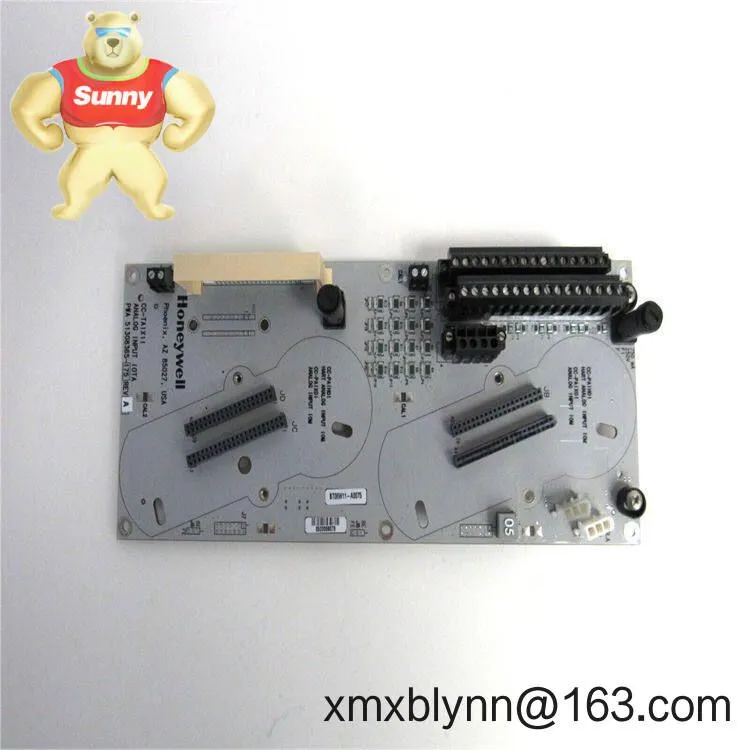

The HONEYWELL CC-TAIX11 is a Series C analog input termination assembly typically used to bring 4–20 mA field signals (with HART) into Experion PKS C300/C200E systems. It’s designed for clean, repeatable measurements, asset diagnostics, and straightforward cabinet integration. In many cases, plants use it to consolidate multi-channel analog inputs while enabling HART passthrough for device maintenance without pulling a wire.
Key FeaturesHART-enabled analog inputs – Typically supports 4–20 mA with HART FSK, so you can capture process values and access device diagnostics/configuration through Experion and asset management tools.
Multi‑channel density – Designed for multi-loop installations to reduce cabinet footprint and wiring effort; exact channel count depends on the CC‑TAIX revision and configuration, commonly 16 channels.
Hot‑swap and easy serviceability – In many cases, the TA can be replaced under power on the Series C base without disturbing adjacent I/O, minimizing downtime.
Per‑channel configuration – Typical options include channel enable/disable, range/scaling, and HART enablement, making loop commissioning faster.
Built‑in diagnostics – You might notice quick fault isolation for open loop, over/under‑range, or module health, which speeds up troubleshooting.
Tight Experion PKS integration – Native fit with C300/C200E and Series C infrastructure, reducing engineering and lifecycle risks.
Industrial‑grade design – Typically rated for control room environments with good immunity to electrical noise when installed per Honeywell practices.
| Brand / Model | HONEYWELL CC-TAIX11 (Series C) |
| Function | HART-enabled analog input termination assembly for 4–20 mA loops |
| Typical Channel Density | Multi-channel (commonly 16 AI); check specific revision and orderable |
| Signal Types | 4–20 mA analog inputs with HART FSK passthrough (per channel enable) |
| Power Requirements | 24 VDC nominal via Series C backplane/IOTA (no external power on the TA) |
| Communication | Series C backplane interface to the controller; HART data available to asset management |
| Operating Temperature | Typically 0 to +55 °C in a conditioned control cabinet (non‑condensing) |
| Installation Method | Mounts on Series C IOTA/base; field wiring to TA terminals; supports hot‑swap in most cases |
| Form Factor | Standard Honeywell Series C TA footprint (refer to datasheet for exact dimensions/weight) |
| System Compatibility | Experion PKS C300/C200E Series C I/O architecture |
From my experience, the CC‑TAIX11 is selected wherever you have a lot of 4–20 mA transmitters and want HART diagnostics without extra hardware. Typical applications include:
Refining and petrochemicals – Pressure, flow, level transmitters with HART device health monitoring.
Chemical and specialty materials – Multi‑stream batching and utilities monitoring with fast loop isolation.
Power generation – Boiler and balance‑of‑plant analog loops where maintenance teams rely on HART diagnostics.
Pharma and food – Clean cabinet builds where compact multi‑channel AI helps save panel space.
Water & wastewater – Distributed analog signals with centralized asset management.
Lower installed cost – Multi‑channel AI with built‑in HART often eliminates separate multiplexers and reduces cabinet count.
Lifecycle efficiency – HART passthrough means technicians can configure and diagnose transmitters without lifting wires.
Proven compatibility – Native fit to Experion PKS helps avoid third‑party adaptors and minimizes commissioning risk.
Serviceability – Hot‑swap and detailed diagnostics typically improve MTTR and keep process units running.
Cabinet standards – Mount on the designated Series C IOTA/base in a clean, ventilated control cabinet. Maintain ambient temperature within Honeywell’s limits (typically 0–55 °C) and non‑condensing humidity.
Wiring – Use shielded twisted pair for analog loops; ground shields at a single point. Keep power and I/O separated to reduce noise. Follow loop polarity marking on the TA terminals.
Redundancy and spares – Where high availability is required, consider redundant I/O paths and keep at least one spare CC‑TAIX11 per cabinet or process area.
Safety – De‑energize field loops before terminal work. Treat HART handheld connections as live circuits; observe site isolation procedures.
Routine care – Periodically verify loop calibration against references, inspect terminal tightness, and review diagnostic logs. When applicable, keep controller and asset management firmware up to the recommended revisions.
Typically compliant with CE and UL/cUL requirements for industrial control equipment; RoHS alignment for most Series C hardware.
Manufactured under ISO 9001 quality systems.
Standard manufacturer warranty is commonly 12 months from shipment; extended coverage may be available on request.
You might notice these used together with the CC‑TAIX11 in typical Experion PKS builds:
HONEYWELL C300 Controller – CC-PAIN01: The core controller executing control strategies and interfacing with Series C I/O.
HONEYWELL Series C base/IOTA: The corresponding IOTA/backplane that the CC‑TAIX11 mounts to; selects termination style and wiring form factor.
HONEYWELL Analog Output TA – CC-TAOX11 (typical pairing): HART-capable AO channels for valve positioners and drives, often installed alongside AI.
Asset Management software: Enables HART device configuration, calibration history, and device alerts directly from the control network.
